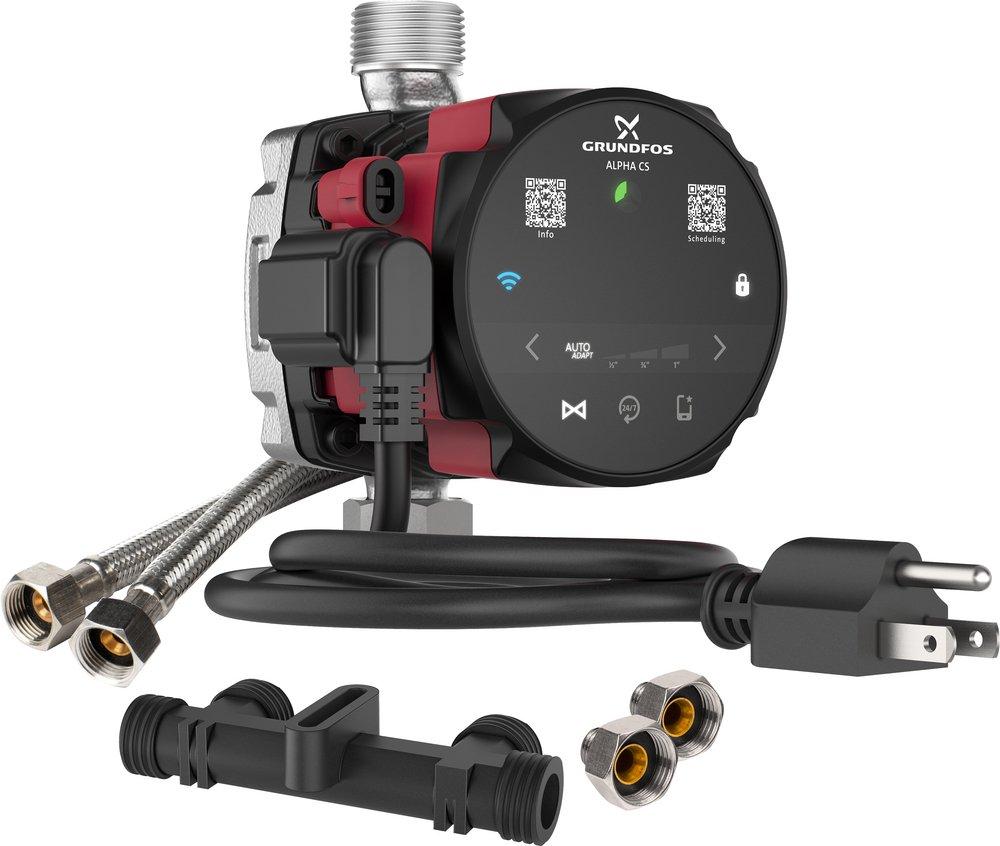

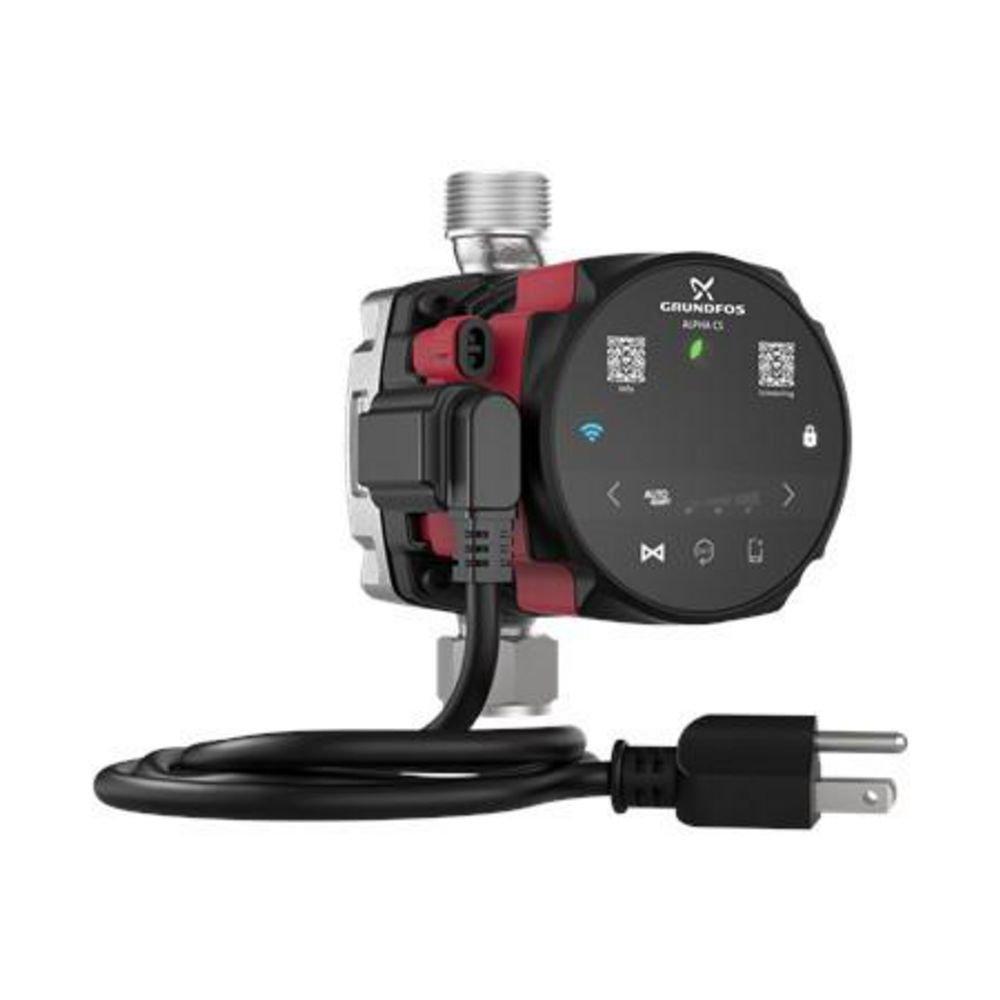

15-55 SU7P/TLC 115V Circulator Pump
Grundfos
ALPHA CS 15-55 SU7P/TLC 115V Circulator Pump
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Grundfos
ALPHA CS
15-55 SU7P/TLC 115V Circulator Pump
92603114
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The comfort system comes with a bypass valve with a thermal actuator
- Built-in digital timer makes it possible to schedule the pump's on/off hours, helping save energy when hot water is not required in the home.
- Master the flow and pressure to reduce pinholes with FLOWSENSE™ technology
- Dry run protection monitoring to help from bearings and shaft seals being damaged
- Self venting in any setting and mode to help achieve a low noise level
- High efficiency hot water circulator where there is not a dedicated return line that will help for a smoother installation while providing a safe and efficient solution
- High efficiency platform with a permanent magnetmotor (ECM) that helps reduce energy consumption by up to 80 percent
- AutoAdapt functionality to maintain temperature and prevent the pump from operating if return temperature is satisfied. Learning cycle adjusts flow rate to meet system
- Highest Energy rating in the market (215) based on the Hydraulic Institute Energy Rating
- Touchscreen with LED lights field indicators with numeric display (flow, temp, watts)
Dimensions & Measurements
Connection Size
3/4
Cord Length
6 ft
Discharge
3/4 in
End Connection 1
NPT
End Connections
NPT
Flow Rate
8.36 gpm
Height
5-4/25 in
Length
5-59/100 in
Maximum Feet of Head
18.05
Pressure - Maximum
174.92 psi
Weight
5.25 lb
Characteristics & Features
Collection
ALPHA CS
Connection Type
Threaded
Pump Body Material
Stainless Steel
Electrical & Operational Information
AMP
0.71
Maximum Temperature
203
Minimum Temperature
36
Volts
115V
Watts
38 W
Warranty & Product Information
IAPMO Listed
Yes
NSF Certified
No
Origin
Global
Product Type
Circulator Pump
Type
G92603114
UL Listed
Yes
