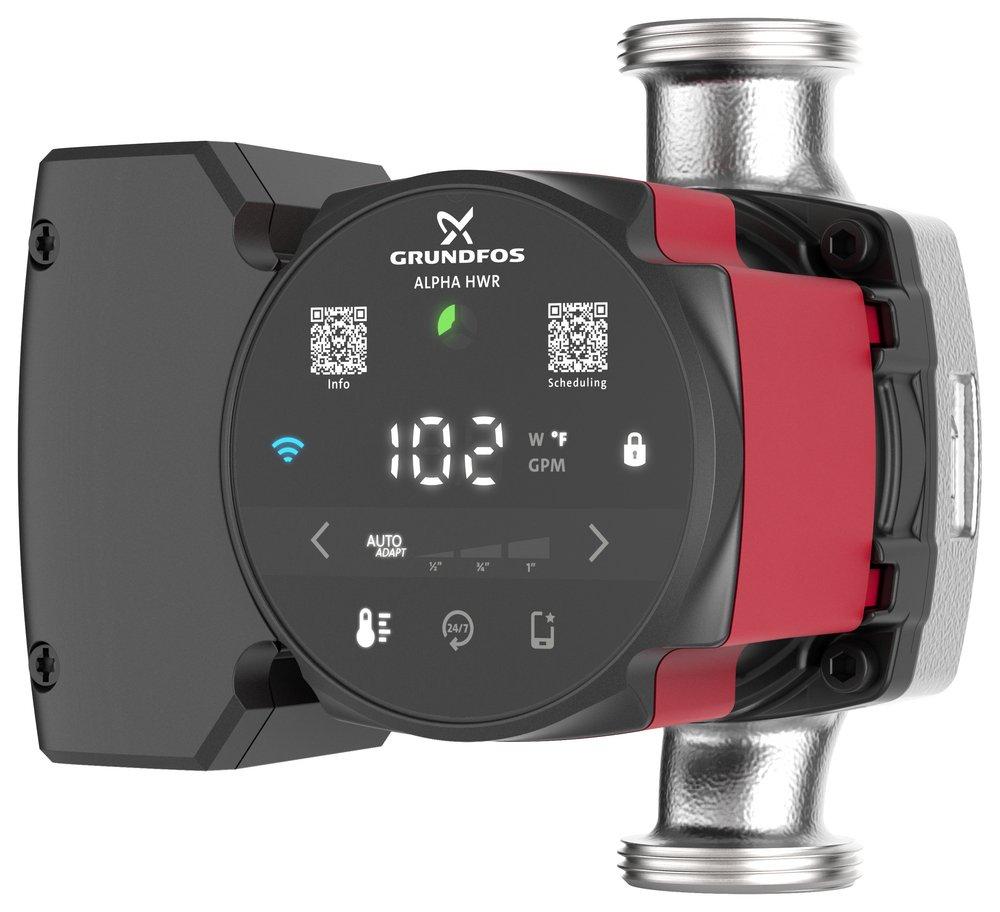

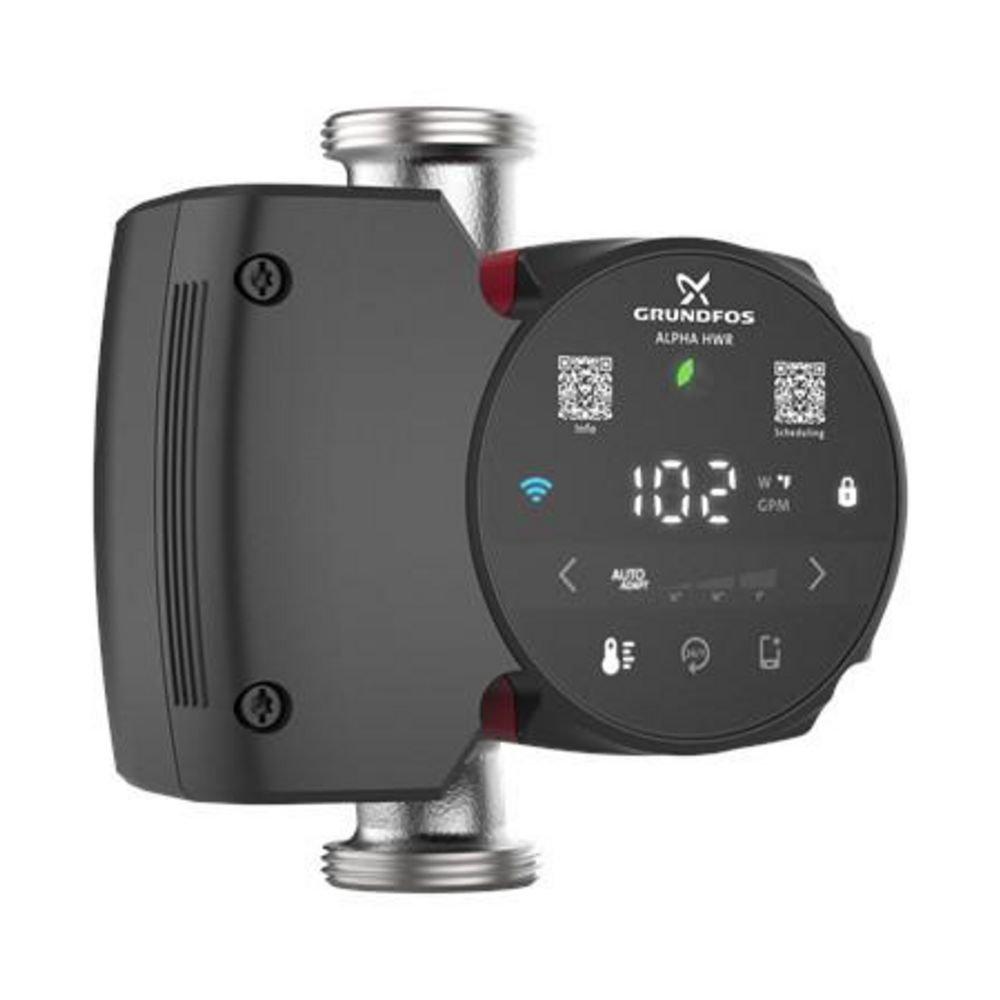

7.26GPM Bluetooth Hot Water Recirculator Pump With Built-In Temperature Control
Grundfos
ALPHA HWR 7.26GPM Bluetooth Hot Water Recirculator Pump With Built-In Temperature Control
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Grundfos
ALPHA HWR
7.26GPM Bluetooth Hot Water Recirculator Pump With Built-In Temperature Control
92603113
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency hot water circulator for homes with dedicated return lines
- Circulator comes with built-in temperature control, eliminating the need for an external aqua stat
- Dry-run protection stops the pump if water is not detected in the system
- Built-in digital timer makes it possible to schedule the pump's on/off hours, helping save energy when hot water is not required in the home
- High-efficiency platform with a permanent magnet motor (ECM) that helps reduce energy consumption by up to 80%
- AUTOADAPT functionality finds the lowest flow rate that will achieve hot water at the farthest fixture
- Temperature mode maintains the temperature without running 100% of the time
- Maintains one of the highest Energy rating in the market (215) based on the Hydraulic Institute Energy Rating
- FLOWSENSE™ technology helps master the flow to reduce the risk of pinholes
- Touchscreen with LED lights field indicators with numeric display (flow, temp, watts)
Dimensions & Measurements
Connection Size
1-1/4
Discharge
1 in
End Connection 1
NPSM
End Connection 2
NPSM
End Connections
NPSM
Flow Rate
14 gpm
Height
7-12/25 in
Length
5-9/10 in
Maximum Feet of Head
9.51
Pressure - Maximum
174.92 psi
Weight
5.16 lb
Width
7-18/25 in
Characteristics & Features
Collection
ALPHA HWR
Connection Type
NPSM
Hertz
60
Pump Body Material
Stainless Steel
Pump Stage
1
Electrical & Operational Information
AMP
0.41
Maximum Temperature
203
Minimum Temperature
36
Phase
Single Phase
Volts
115V
Watts
21 W
Warranty & Product Information
NSF Certified
No
Origin
Global
Product Type
Circulator Pump
Type
G92603113
UL Listed
Yes
