This product requires certification to purchase.

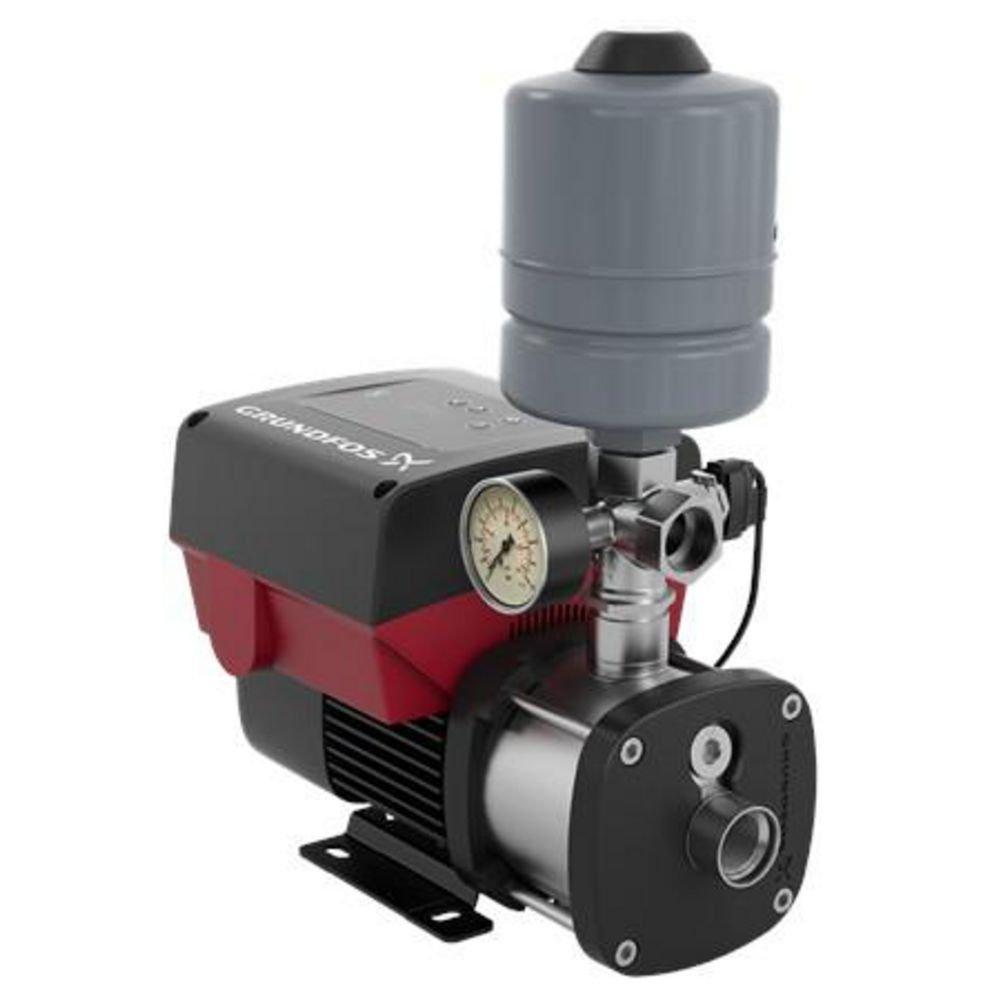

1-44 I-X-C-B-D-E 115V 8.8 GPM 1 HP Stainless Steel Compact Booster Pump (85' Head)

Grundfos

CMBE 1-44 I-X-C-B-D-E 115V 8.8 GPM 1 HP Stainless Steel Compact Booster Pump (85' Head)

  • Fast #
  • Part #G98810910
  • Item #7167642
  • Manufacturer Part #98810910
4 out of 5 Customer Rating
Brand image
Grundfos 144.36 ft. 1 hp Single Phase Booster Pump
Grundfos 144.36 ft. 1 hp Single Phase Booster Pump
Grundfos 144.36 ft. 1 hp Single Phase Booster Pump
Grundfos 144.36 ft. 1 hp Single Phase Booster Pump
Grundfos

CMBE 1-44 I-X-C-B-D-E 115V 8.8 GPM 1 HP Stainless Steel Compact Booster Pump (85' Head)

  • Fast #
  • Part #G98810910
  • Item #7167642
  • Manufacturer Part #98810910
4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment
Looking for compatible parts?

Product Details

Product Description
  • Premium construction, stainless steel for long lasting use in residential and light commercial applications
  • MGE motor provides thermal protection against mechanical overload, locked rotor, low voltage, or supply imbalance
  • High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
  • Dry run protection, stops the pump in case of water shortage, blocked pump, thus preventing a motor burn out
  • Noise level below 58 db. and even lower at controlled speeds.
  • All-in-one solution; sensor, controller, check valve built into the pump.
  • Maintains constant water pressure via the integrated speed control.
  • Provides consistent water pressure in a home, up to 21 taps.
  • Thermal overload protection: Built-in thermal protection
  • All-in-one solution including pump, motor, tank, pressure sensor and check valve, and controller
  • Requires Certification
Dimensions & Measurements
Connection Size
1
Cord Length
5 ft
Depth
2/5 in
Diameter - Inside 1
1 in
Discharge
1 in
Discharge Pressure
62.6
End Connection 1
MPT
End Connection 2
FPT
End Connections
MPT x FPT
Flow Rate
11 gpm
Height
26-3/50 in
Length
12-4/5 in
Maximum Feet of Head
144.36
Pressure - Maximum
145 psi
Suction Line (OD)
1 in
Width
15-3/4 in
Characteristics & Features
Collection
CMBE
Connection Type
MPT
Material Type
304 SS
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Stainless Steel
Pump Motor Type
TEFC
Pump Mounting
Horizontal
Pump Stage
1
Electrical & Operational Information
AMP
8
Automatic Shut-Off
Yes
Horsepower
1.01 hp
Maximum Temperature
140
Phase
Single Phase
Power Source
Electric
RPM
4000
Volts
115V
Warranty & Product Information
ANSI
ANSI 61, ANSI 372
Application
Residential, Light Commercial
NEMA
NEMA 5-15
NSF
NSF 61, NSF 372
NSF Certified
Yes
Pump Application
Pressure Booster
UL Listed
No
