10-54 200-240V Twin Pump Booster System
Grundfos

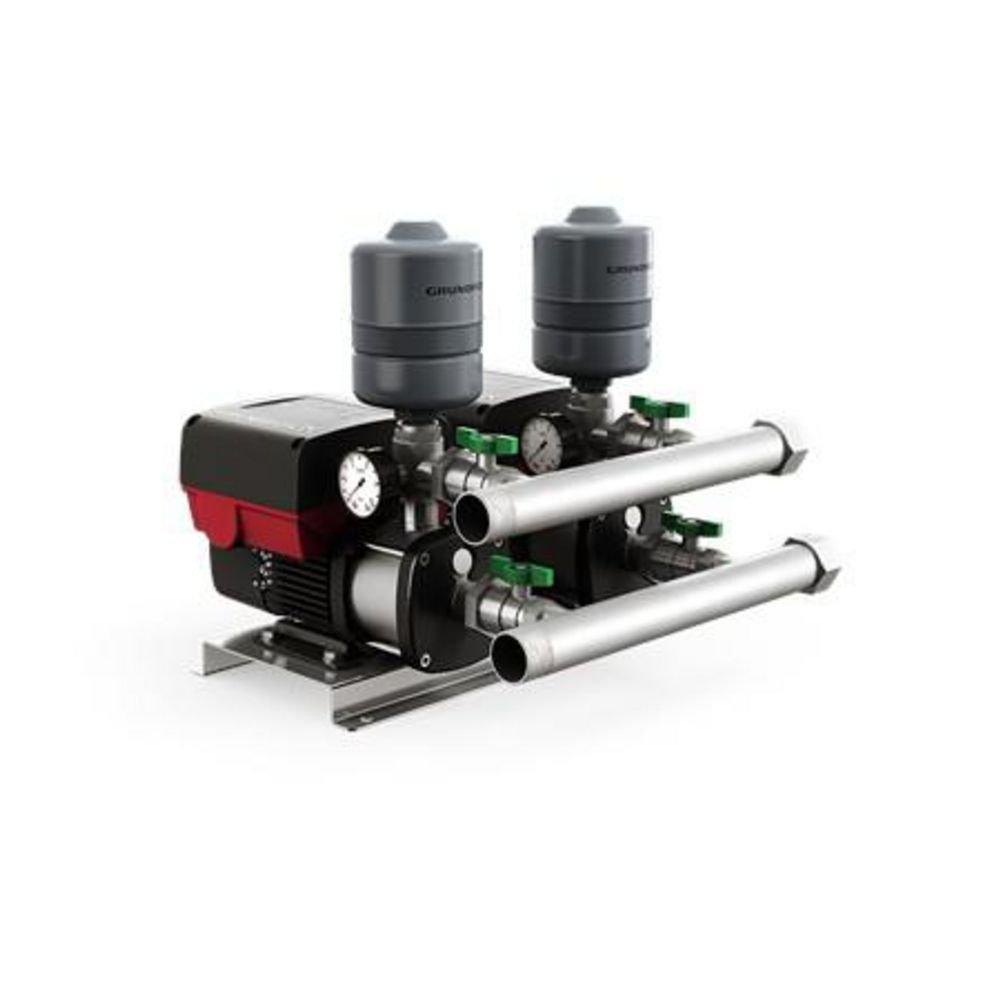

CMBE 10-54 200-240V Twin Pump Booster System
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
CMBE
10-54 200-240V Twin Pump Booster System
99503875
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Premium construction, stainless steel for long lasting use in residential and light commercial applications
- MGE motor provides thermal protection against mechanical overload, locked rotor, low voltage, or supply imbalance
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
- Dry run protection, stops the pump in case of water shortage, blocked pump, thus preventing a motor burn out
- Noise level below 58 db. and even lower at controlled speeds.
- All-in-one solution; sensor, controller, check valve built into the pump.
- Maintains constant water pressure via the integrated speed control.
- Provides consistent water pressure in a home, up to 21 taps.
Dimensions & Measurements
Connection Size
2
Cord Length
5 ft
Discharge
2 in
Discharge Pressure
145
End Connection 1
MPT
End Connection 2
FPT
End Connections
MPT x FPT
Flow Rate
195 gpm
Height
29-1/50 in
Length
21-1/10 in
Maximum Feet of Head
177.17
Suction Line (OD)
2 in
Width
15-49/50 in
Characteristics & Features
Collection
CMBE
Connection Type
MPT
Pump Body Material
Stainless Steel
Pump Motor Type
Permanent Magnetic
Pump Mounting
Horizontal
Pump Stage
1
Electrical & Operational Information
AMP
9.1
Horsepower
2 hp
Maximum Temperature
140
Phase
Single Phase
Power Source
Electric
RPM
3868
Volts
200/240V
Warranty & Product Information
Application
Attic, Bathroom, Commercial
NSF Certified
No
UL Listed
Yes
