10-16TA BU/LC Comfort System 1.4 GPM Plug In Instant Hot Water Brass Recirculation Circulator Pump

Grundfos

COMFORT 10-16TA BU/LC Comfort System 1.4 GPM Plug In Instant Hot Water Brass Recirculation Circulator Pump

  • Fast #
  • Part #G98420224
  • Item #4892404
  • Manufacturer Part #98420224
4.8 out of 5 Customer Rating
Brand image

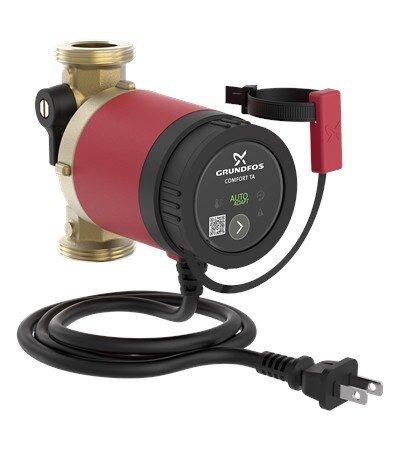

Grundfos Comfort PM AutoAdapt Recirculation Pump 1-1/4 in. NPSM
Grundfos Comfort PM AutoAdapt Recirculation Pump 1-1/4 in. NPSM
Grundfos

COMFORT 10-16TA BU/LC Comfort System 1.4 GPM Plug In Instant Hot Water Brass Recirculation Circulator Pump

  • Fast #
  • Part #G98420224
  • Item #4892404
  • Manufacturer Part #98420224
4.8 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • Leans hot water consumption patterns and adjusts operation time accordingly
  • Reduces water heater energy consumption by saving up to 67% compared to a continuously running pump
  • Designed for unlimited water hardness and robust against limescale
  • Multiple installation positions, even vertical with the pump head pointing downwards
  • Dry-running protection to prevent failure if system runs out of water
  • Built-in and external temperature sensor
  • Isolation valve and check valve integrated
  • Insulation shell included
  • Double insulated pump with line cord allows for quick installation without the need for a ground wire
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
Connection Size
1-1/4
Depth
6-1/16 in
Discharge Pressure
2.2
End Connection 1
NPSM
End Connection 2
NPSM
End Connections
NPSM
Flow Rate
1.45 gpm
Height
3-47/50 in
Length
4-3/10 in
Maximum Feet of Head
5.25
Pressure - Maximum
145 psi
Weight
77.0 lb
Width
6-69/100 in
Characteristics & Features
Blower Type
1 Speed
Collection
COMFORT
Connection Type
NPSM
Hertz
60
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Brass
Pump Stage
1
Electrical & Operational Information
AMP
0.1
Maximum Temperature
180
Minimum Temperature
36
Phase
Single Phase
Volts
115-230V
Watts
6 W
Warranty & Product Information
ANSI
ANSI 61
Energy Star Compliant
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61, NSF 372
NSF Certified
Yes
Origin
Global
Product Type
Circulator Pump
UL Listed
Yes
