115/230V Brass Circulator Pump
Grundfos

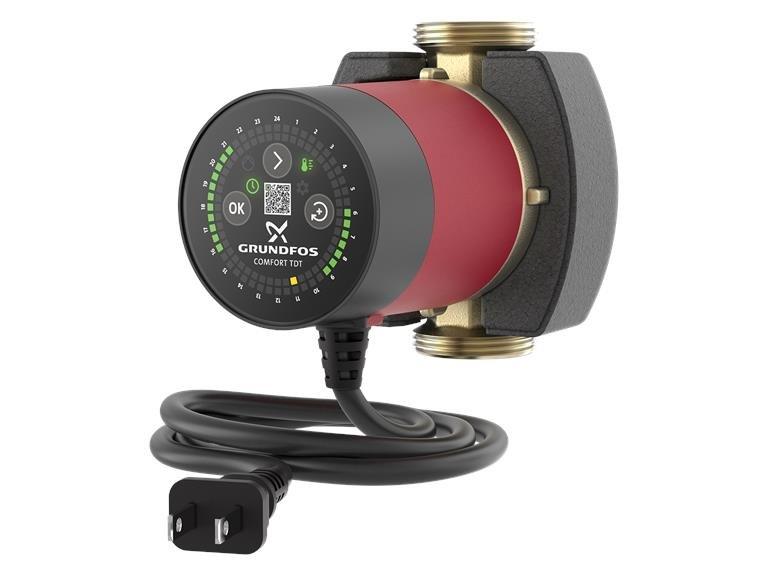

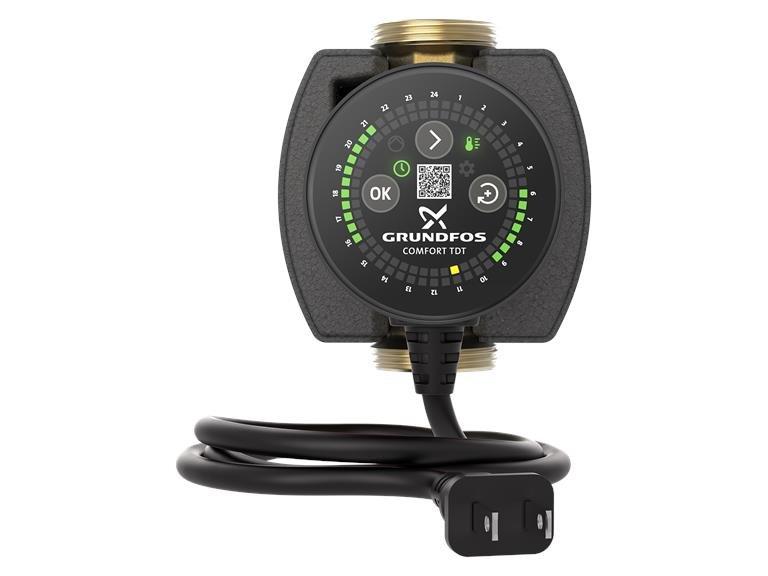

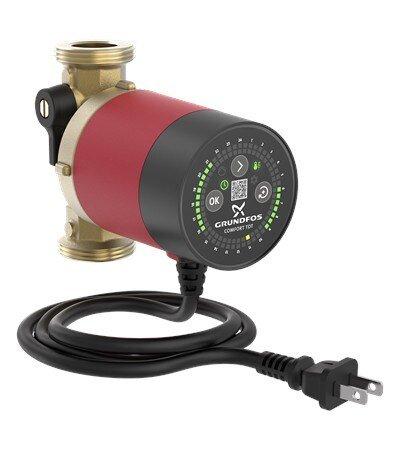

COMFORT 115/230V Brass Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
COMFORT
115/230V Brass Circulator Pump
93094713
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- QH performance designed for single and multi-family homes, depending on the required duty point to accommodate for heat losses in specific pipe layout.
- Low power consumption and silent operation.
- Compliance with pipe manufacturer’s flow velocity limit recommendations due to a low operating flow, for 1/2” and 3/4” copper or PEX pipes.
- Eco brass pump housing and stainless-steel rotor that provide safe and reliable operation.
- Drinking-water approval, enabling the product to meet unlimited water hardness requirement.
- A design that makes it easy to clean limescale and foreign deposits by removing the pump head.
- Dry-running protection to prevent failure if system runs out of water.
- A pump head designed to fit all brass pump housings of the same design from different brands (such as WILO, LOWARA, LAING and VORTEX). The design enables easy installation and removes the need to replace the pump housing and drain the system.
- Easy installation with included line cord for electrical connection which does not require ground connection in the socket due to the pump having double insulation.
- An optional venting flange, providing a simple way to vent or drain the system without the need for permanently installing an additional venting valve.
Dimensions & Measurements
Flow Rate
1.45 gpm
Maximum Feet of Head
5.25
Pressure - Maximum
145.04 psi
Weight
3.17 lb
Characteristics & Features
Collection
COMFORT
Connection Type
NPSM
Impeller
Composite
Pump Body Material
Brass
Electrical & Operational Information
AMP
0.1
Maximum Temperature
176
Minimum Temperature
35.6
Volts
115/230V
Watts
6 W
Warranty & Product Information
Origin
Global
Product Type
Circulator Pump
Pump Application
Water
Type
G93094713
