5-55 115V Single Phase Booster Pump
Grundfos

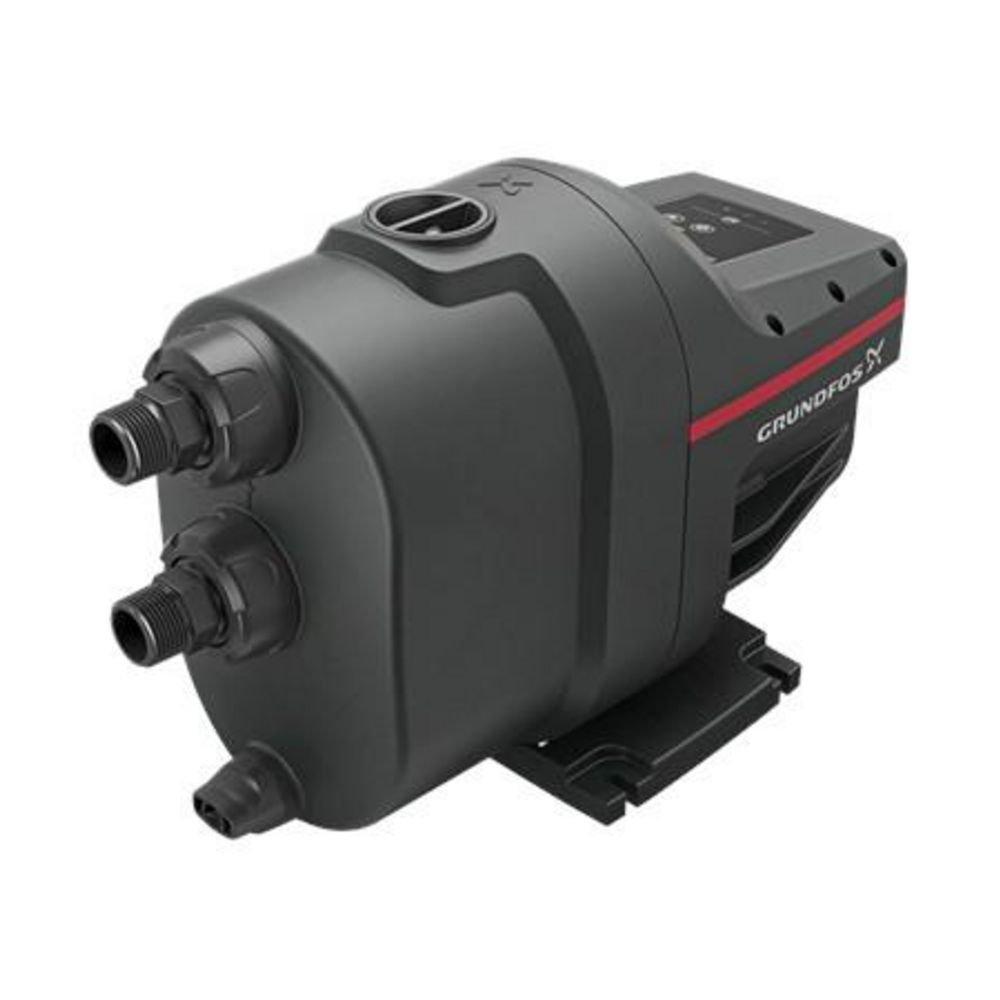

SCALA1 5-55 115V Single Phase Booster Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 24Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
SCALA1
5-55 115V Single Phase Booster Pump
99631754
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption.
- Built in sensor to constantly measure and optimize for drops in pressure.
- Dry run protection monitoring to automatically stop the pump in case of water shortage
- All-in-one solution; sensor, controller, check valve built into the pump.
- Compact size allows for installations in a variety of spaces (small or large).
- Water flowing through the pump cools the motor to help it operating
- Self-priming pump ensures stable operation, even when the pump is not completely filled with water.
- Aluminum construction combined with corrosion-resistant internal components.
- Digital external input
- Scheduling function/calendar function
Dimensions & Measurements
Connection Size
1
Cord Length
4-23/25 ft
Depth
18-7/20 in
Diameter - Inside 1
1 in
Discharge
1 in
Discharge Pressure
63
End Connection 1
MPT
End Connection 2
MPT
End Connections
MPT
Flow Rate
38 gpm
Height
13-29/50 in
Length
18-3/10 in
Maximum Feet of Head
180.46
Pressure - Maximum
115 psi
Suction Line (OD)
1 in
Width
9-9/20 in
Characteristics & Features
Collection
SCALA1
Connection Type
MPT
Proposition 65
WARNING: Cancer and Redproductive Harm. Www.P65Warning.ca.gov
Pump Body Material
Composite
Pump Mounting
Horizontal
Pump Stage
1
Wireless Communication
Bluetooth
Electrical & Operational Information
AMP
11.57
Automatic Shut-Off
Yes
Horsepower
1.1 hp
Maximum Temperature
113
Phase
Single Phase
Power Source
Electric
RPM
3450
Volts
115V
Warranty & Product Information
Application
Residential
ASTM
No
NSF
NSF 61, NSF 372
NSF Certified
Yes
Pump Application
Pressure Booster
UL Listed
No
