3-45 6/10HP 13.2GPM 115V Thermoplastic Shallow Well Booster Pump with NEMA 5-15 Plug
Grundfos

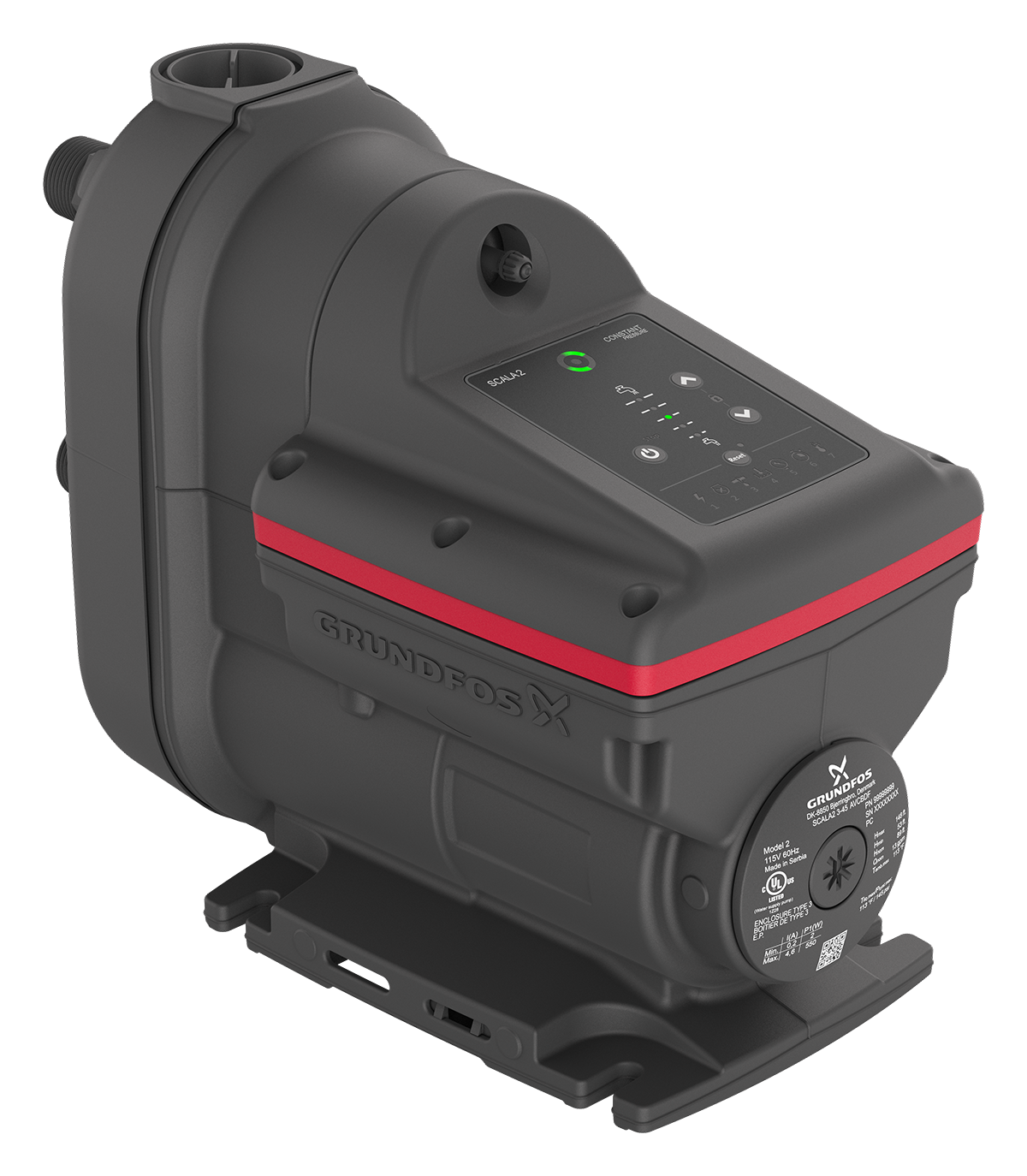

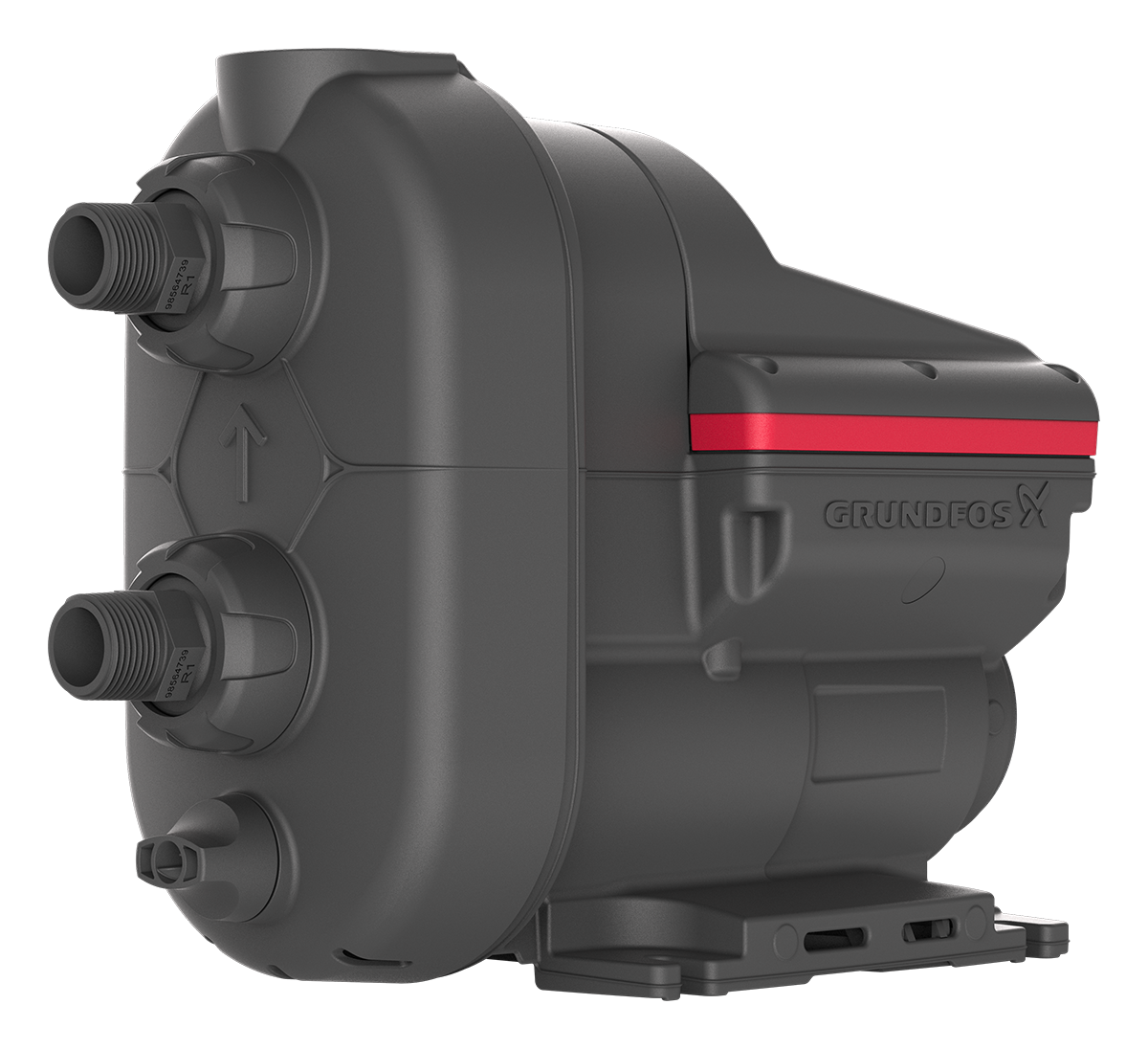

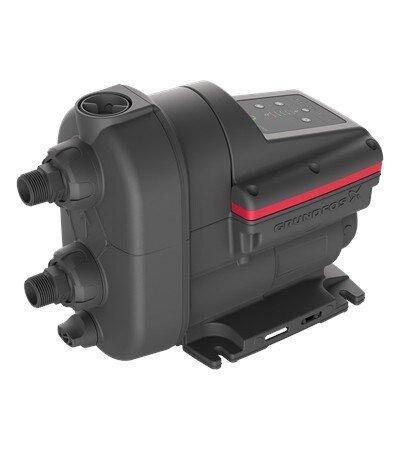

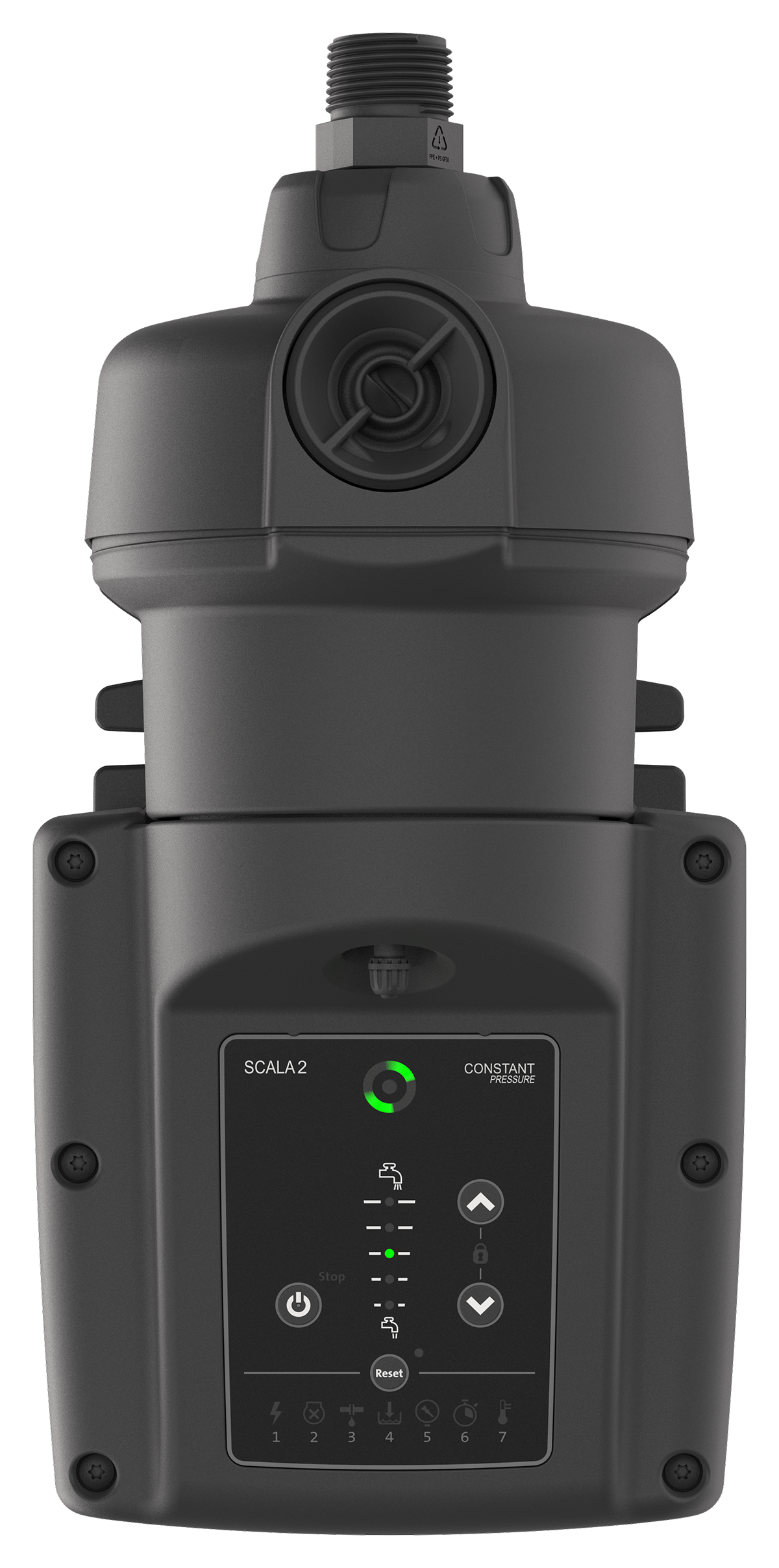

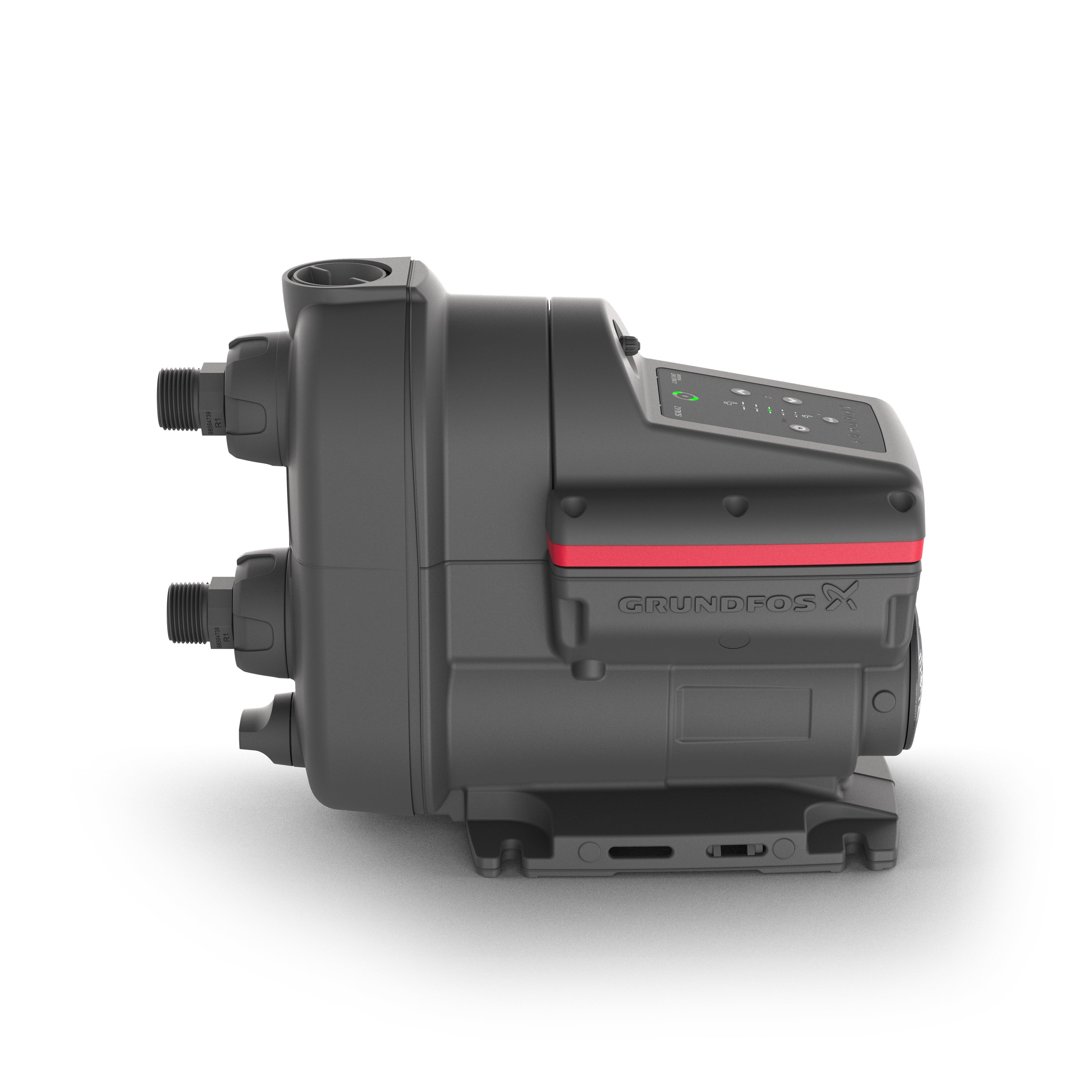

SCALA2 3-45 6/10HP 13.2GPM 115V Thermoplastic Shallow Well Booster Pump with NEMA 5-15 Plug
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Grundfos
SCALA2
3-45 6/10HP 13.2GPM 115V Thermoplastic Shallow Well Booster Pump with NEMA 5-15 Plug
93013251
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High efficiency platform with a permanent magnet motor (ECM) that helps reduce energy consumption
- Fully integrated water booster pump providing perfect water pressure in up to 8 taps-even with multiple taps and showers running at the same time
- Built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure
- Constant water pressure with integrated controls and frequency driven motor
- Silent: Using cutting edge technology in multistage pumps, combined with world class materials, SCALA2 is the most silent pressure booster in the world.
- With permanent magnet motor (ECM) technology and smart controls, SCALA2 provides pressure optimizing the power consumption, saving energy and costs.
- COMPACT AND EASY TO INSTALL SCALA2 integrates all components of a pressure booster in one compact enclosure, suitable for multiple applications, making it easy to select, size and install.
- Boost from city mains, wells, roof, ground and break banks to increase water pressure delivered in the home.
- Dry run protection monitoring to automatically stop the pump in case of dry-running
- Built in operational features with LED indicator lights showcasing system status
Documents
Dimensions & Measurements
Connection Size
1
Cord Length
6.59 ft
Depth
15-9/10 in
Diameter - Inside 1
1 in
Discharge
1 in
Flow Rate
13.2 gpm
Height
14-29/100 in
Length
18-23/50 in
Maximum Feet of Head
147.65
Pressure - Maximum
145 psi
Characteristics & Features
Collection
SCALA2
Connection Type
NPT
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Composite
Pump Motor Type
Permanent Magnetic
Pump Mounting
Horizontal
Pump Phase
1
Pump Stage
4
Electrical & Operational Information
AMP
4.9
Horsepower
3/5 hp
Maximum Temperature
113
Power Source
Electric
RPM
4890
Volts
115V
Warranty & Product Information
Application
Residential
NEMA
NEMA 5-15
NSF Certified
Yes
Pump Application
Pressure Booster
UL Listed
Yes
