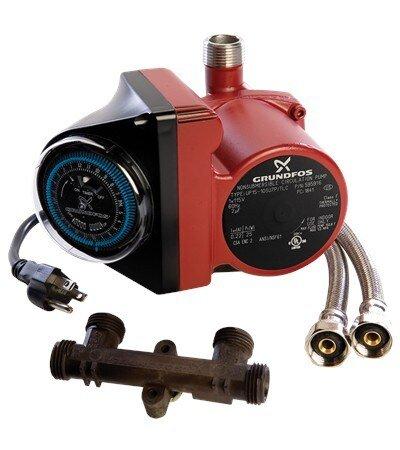

UP15-10SU7P 1/25 HP 115V Stainless Steel Circulator Pump
Grundfos
UP15-10SU7P 1/25 HP 115V Stainless Steel Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 120Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
UP15-10SU7P 1/25 HP 115V Stainless Steel Circulator Pump
595916
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Provides instant hot water for improved convenience
- No separate return line needed, simplifying installation and reducing material costs
- Corrosion-resistant stainless steel pump housing
- Hoses and valve included
- A wet rotor design for whisper-quiet and maintenance-free operation
- Stainless steel rotor cladding and canister construction, an exclusive UP 15 series feature, ensures corrosion-resistance and extended product durability
- A low-watt, 2-pole motor combined with low-flow performance mitigates heat loss and ensures minimum water heater operating costs, pipe and water heater wear and energy consumption
- Quick and easy installation
- Whisper quiet operation
- Lead-Free
Dimensions & Measurements
Connection Size
3/4
Cord Length
10 ft
Depth
3-11/25 in
Discharge Pressure
1.4
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Flow Rate
6.3 gpm
Height
8-7/100 in
Length
5-1/10 in
Maximum Feet of Head
3.28
Pressure - Maximum
145 psi
Weight
5.07 lb
Width
7-8/25 in
Characteristics & Features
Blower Type
1 Speed
Connection Type
NPT
Hertz
60
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Body Material
Stainless Steel
Pump Stage
1
Electrical & Operational Information
AMP
0.22
Horsepower
1/25 hp
Maximum Temperature
151
Minimum Temperature
36
Phase
Single Phase
Volts
115V
Watts
25 W
Warranty & Product Information
ANSI
ANSI 61
Energy Star Compliant
No
IAPMO Listed
Yes
NSF
NSF 61, NSF 372
NSF Certified
Yes
Origin
Domestic
Product Type
Circulator Pump
UL Listed
Yes
