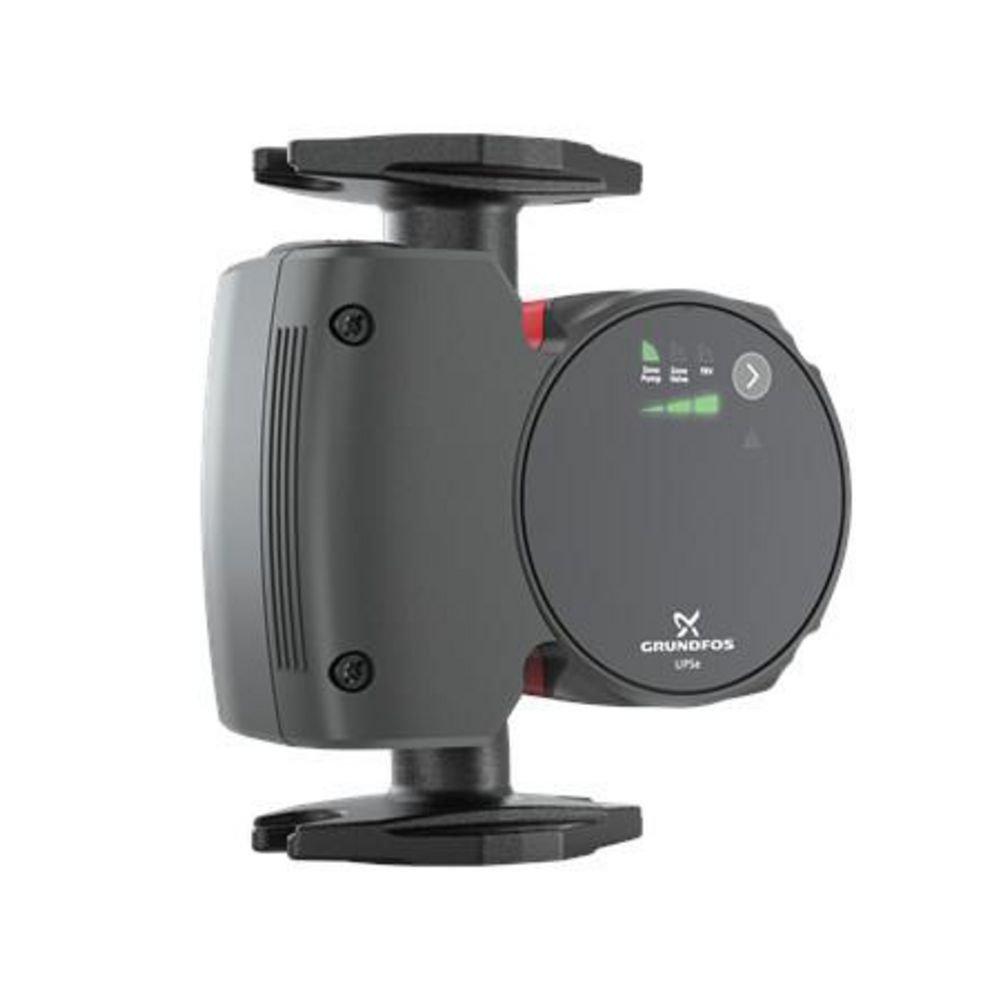

UPSe 15-58F 1/20 HP 115V Cast Iron Circulator Pump
Grundfos
UPSe 15-58F 1/20 HP 115V Cast Iron Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
UPSe 15-58F 1/20 HP 115V Cast Iron Circulator Pump
92603106
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High-efficiency heating circulator built with an ECM for energy savings
- Dry-run protection feature stops the pump if water is not detected in the system
- Pumps are self-venting in any setting and mode to help avoid unwanted noise and reduced performance
- Designed with warning and alarm read-out that can help quickly identify and overcome pump problems
- If the pump gets blocked, it will try to shake the rotor loose with the robust startup feature
- Smaller conduit box helps with installations in small spaces, and a toolless lever connector enables wiring to be done outside the conduit box
- Replacement compatibility check through the Grundfos GO app
Dimensions & Measurements
Depth
3-7/10 in
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Flow Rate
17 gpm
Height
7-12/25 in
Length
6-1/2 in
Maximum Feet of Head
19.03
Weight
2.4 kg
Width
7-18/25 in
Characteristics & Features
Connection Type
Flanged
Hertz
60
Material
Cast Iron, Composite
Pump Body Material
Cast Iron
Pump Stage
1
Electrical & Operational Information
AMP
0.71
Horsepower
1/20 hp
Maximum Temperature
230
Minimum Temperature
36
Phase
Single Phase
Volts
115V
Watts
38 W
Warranty & Product Information
ASTM
ASTM A-48 25A
Origin
Global
Product Type
Circulator Pump
UL Listed
Yes
