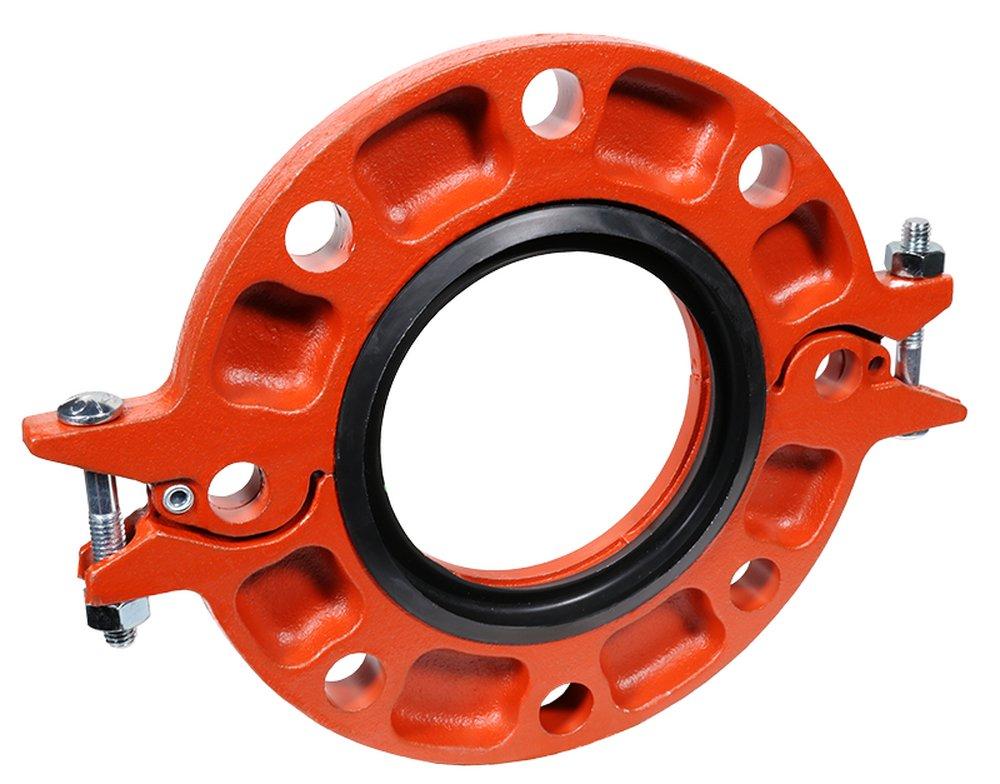

14 x 1-1/2 in. Flanged x Gasket Rust Inhibiting Painted Ductile Iron Adapter
Gruvlok
Fig 7012 14 x 1-1/2 in. Flanged x Gasket Rust Inhibiting Painted Ductile Iron Adapter
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
Gruvlok
Fig 7012
14 x 1-1/2 in. Flanged x Gasket Rust Inhibiting Painted Ductile Iron Adapter
0390201317
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- The Gruvlok Fig. 7012 flange allows direct connection of class 125 or class 150 flanged components to a grooved piping system
- The two interlocking halves of the 2" thru 12" sizes of the Gruvlok flange are hinged for ease of handling, and are drawn together by a latch bolt which eases assembly on the pipe
- A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face
- The 14" thru 24" sizes of the Gruvlok Fig. 7012 flange are cast in four segments
- All Gruvlok Fig. 7012 flanges have designed-in anti-rotation tines which bite into and grip the sides of the pipe grooves to provide a secure, rigid connection
- The Gruvlok Fig. 7012 flange requires the use of a steel adapter insert when used against rubber faced surfaces, wafer/lug design valves and serrated or irregular sealing surfaces
Documents
Specifications
- ANSI:
- ANSI 61, ANSI Class 125, ANSI Class 150
- ASME:
- ASME B16.5
- ASTM:
- ASTM A-536 Grade 65-45-12, ASTM A-563 Grade A, ASTM D-2000
- Application:
- Diluted Acid
- Coating:
- Rust Inhibiting Painted
- Collection:
- Fig 7012
- End Connection 1:
- Flanged
- End Connection 2:
- Gasket
- End Connections:
- Flanged x Gasket
- FM Approved:
- Yes
- Fitting Size 1:
- 14 in
- Fitting Size 2:
- 14 in
- Fitting Sizes:
- 14 in
- Fitting Type:
- Adapter, Straight
- Length:
- 1-1/2 in
- Material:
- Ductile Iron, Rubber, Steel, Zinc Plated
- Material Type:
- EPDM
- Maximum Temperature:
- 230
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- UL Listed:
- Yes
- UPC:
- 690291114700
