3 in. Ductile Iron Standard Port Grooved Ball Valve

Gruvlok

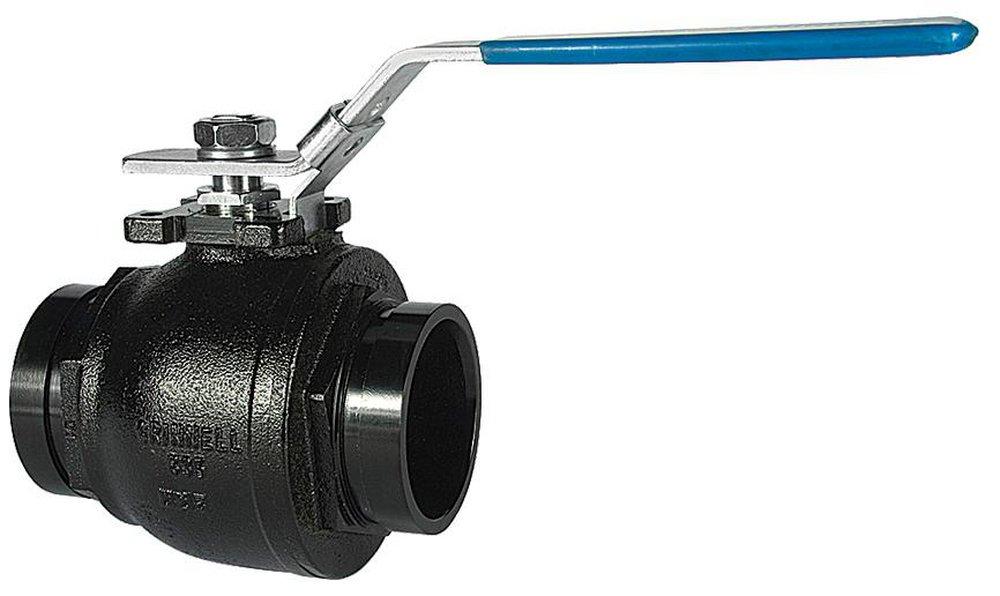

Model BV835 3 in. Ductile Iron Standard Port Grooved Ball Valve

  • Fast #
  • Part #G1330026180
  • Item #9317617
  • Manufacturer Part #1330026180
4.1 out of 5 Customer Rating
Brand image
Gruvlok Ductile Iron Standard Port Grooved Ball Valve
Gruvlok Ductile Iron Standard Port Grooved Ball Valve
Gruvlok

Model BV835 3 in. Ductile Iron Standard Port Grooved Ball Valve

  • Fast #
  • Part #G1330026180
  • Item #9317617
  • Manufacturer Part #1330026180
4.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 2
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • The Model BV835 is a ductile iron, grooved end, regular port, two-piece ball valve that provides for efficient control of fluid in piping systems
  • The Model BV835 is designed and tested in conformance with MSS SP-110 and MSS SP-72
  • Flow may be from either direction, and the valves may be positioned in any orientation
  • The valves are furnished with grooved ends for use with Gruvlok grooved couplings
  • The handle is provided with a device for padlocking in either the open or closed position
  • The mounting pad is made to ISO 5211 to allow for mounting of power actuators
  • Requires Certification

Documents

SPECIFICATION

Specifications

ASTM:
ASTM A-395, ASTM A-536 65-45-12
CSA Certified:
No
Clean Bagged:
No
Collection:
Model BV835
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Carbon Steel
IAPMO Listed:
No
ISO:
ISO 5211
Length:
6-14/25 in
MA Approved:
Yes
MSS:
MSS SP-110, MSS SP-72
Material:
Ductile Iron, Carbon Steel, Plastic
Material Type:
Glass Filled PTFE
NSF Certified:
No
Origin:
Global
Pressure - High:
1000
Recommended Valve Application:
Water, Fire Protection
UL Listed:
No
UPC:
662428975898
Valve Body Material:
Ductile Iron
Valve Body Style:
2 piece
Valve Disc Material:
Ductile Iron
Valve Operator:
Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
Glass Filled PTFE
Valve Size:
3 in
Valve Type:
Ball Valve
Weight:
13.4 lb
cUPC Certified:
No
