2-1/2 in. Cast Iron and Steel 200 psi WOG Flanged Wrench Plug Valve

Homestead Valve

Figure 612 2-1/2 in. Cast Iron and Steel 200 psi WOG Flanged Wrench Plug Valve

  • Fast #
  • Part #H612L
  • Item #85459
  • Manufacturer Part #612-2-1/2
4.2 out of 5 Customer Rating
Brand image

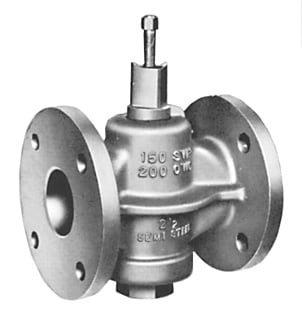

Homestead Valve Cast Iron Flanged Wrench Plug Valve
Homestead Valve Cast Iron Flanged Wrench Plug Valve
Homestead Valve

Figure 612 2-1/2 in. Cast Iron and Steel 200 psi WOG Flanged Wrench Plug Valve

  • Fast #
  • Part #H612L
  • Item #85459
  • Manufacturer Part #612-2-1/2
4.2 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • Plug valves are usually lower in cost and lighter in weight than comparable gate or globe valves
  • Only a small initial injection of sealant, with minimal follow-up sealing, is required for positive shut-off. Minimal quick and easy follow-up sealing assures long lasting service
  • The single solid-piece plug design features true bi-directional seating and low vibration operation
  • Various port configurations make them suitable for a wide range of applications
  • A thin film of sealant not only forms an incompressible seal to prevent gas or liquid leakage, but also reduces friction between the body and plug, offering low torque operation
  • Metal to metal seating assures long life, with no rubber to wear
  • Every valve is 100% leak-tested before shipment to ensure reliable shut-off
  • Valves are available with lever, manual gear, pneumatic and electric actuation
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
7-1/2 in
Pressure Class
150#, 200#
Valve Size
2-1/2 in
Characteristics & Features
Collection
Figure 612
Material
Cast Iron, Steel, Metal
Material Type
A126
Valve Body Material
Cast Iron
Valve Body Style
Flanged
Valve Operator
Wrench
Valve Port Opening
Standard Port
Valve Seat Material
Metal
Valve Type
Plug Valve
Warranty & Product Information
ANSI
ANSI B16.1 Class 125, ANSI B16.10, ANSI B2.1
ASTM
ASTM A-126 Class B, ASTM A-536 65-45-12
FM Approved
No
NSF Certified
No
Recommended Valve Application
Air, Gas, Oil, Water
UL Listed
Yes
