1/2 x 3/8 in. Push x Compression Angle Supply Stop Valve in Chrome

Jones Stephens

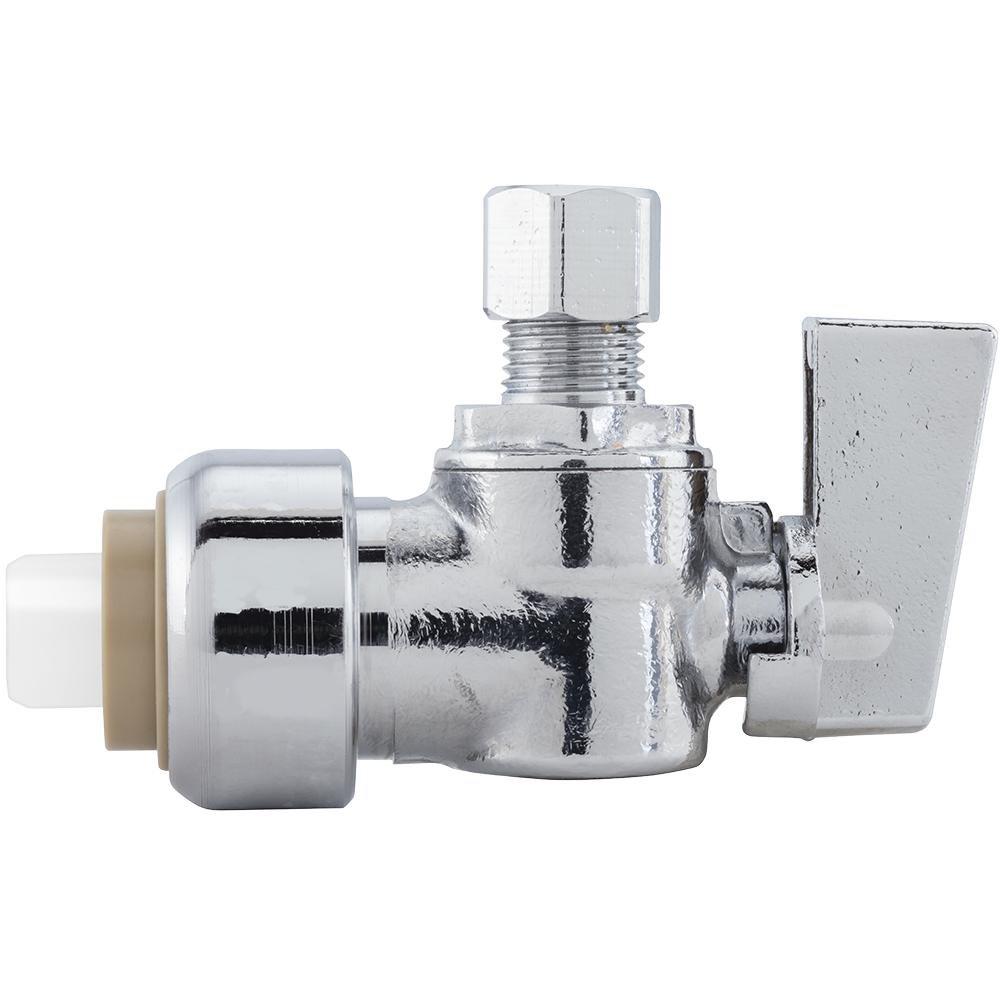

Plumbite® 1/2 x 3/8 in. Push x Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #JC77473LF
  • Item #7793043
  • Manufacturer Part #C77473LF
4 out of 5 Customer Rating
Brand image
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
Jones Stephens Chrome Plated Push x Compression Angle Supply Stop Valve in Chrome
null
null
Jones Stephens

Plumbite® 1/2 x 3/8 in. Push x Compression Angle Supply Stop Valve in Chrome

  • Fast #
  • Part #JC77473LF
  • Item #7793043
  • Manufacturer Part #C77473LF
4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 6 Case: 48 Pallet: 4608
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available
    14  in  Hilliard, OH
    Available in 8 stores nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
  • No soldering, glue, heat or tools required to join the pipe
  • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
  • Maximum temperature of 180°F and maximum pressure of 200 PSI
  • Can be disassembled and re-used using the disassembly tool (sold separately)
  • Standards/Certifications: NSF/ANSI/CAN 61: Q ≤ 0.5, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
  • Lead Free
  • 2 year warranty
  • Individually packaged
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Push
End Connection 2
Compression
End Connections
Push
Height
2-49/100 in
Length
2-13/100 in
Pressure - Maximum
200 psi
Valve Size
1/2 in x 3/8 in
Weight
.26 lb
Width
1-7/100 in
Characteristics & Features
Collection
Plumbite®
Color Finish Category
Chromes
Color Finish Name
Chrome Plated
Material
Brass
Number of Handles
Single Handle
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Brass
Valve Body Style
Angle
Valve Operator
Lever Handle
Valve Seat Material
EPDM
Valve Type
Angle Supply Stop Valve
Electrical & Operational Information
Automatic Shut-Off
No
Maximum Temperature
180
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 372-2022, ANSI 61-2021: Q ≤ 0.5, ANSI 14-2010a
ASME
ASME A112.18.1-2018
ASSE Standards
ASSE 1061
BAA Compliant
No
CSA Certified
CSA B125.1-18
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Free and Lead Leaching Compliant
Lead Law Compliant
Yes
NSF
NSF 372-2022
NSF Certified
No
Origin
Global
Recommended Valve Application
Potable Water
UL Listed
No
UPC
717510229585
