18 x 3/4 in. Water Heater Connector

You last purchased this on

Jones Stephens

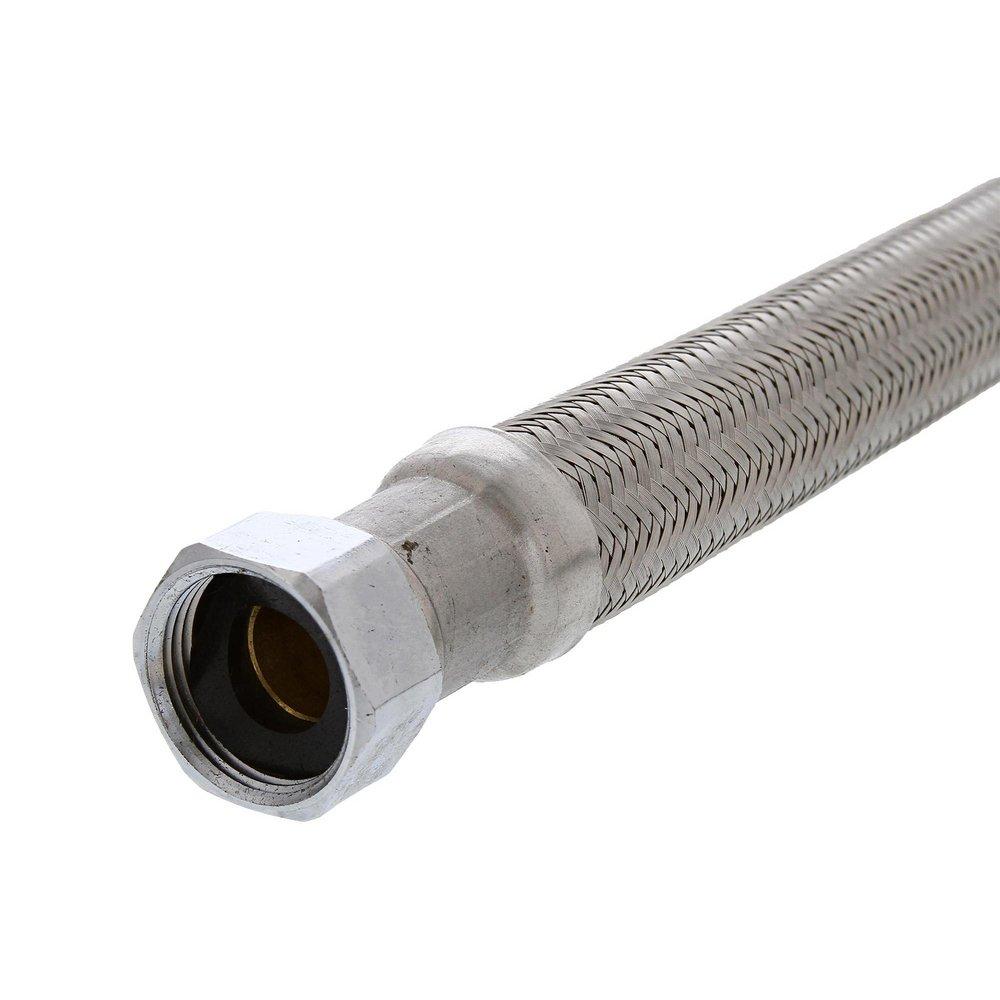

Plumbite® 18 x 3/4 in. Water Heater Connector

This product requires certification to purchase.
Brand image
You last purchased this on

Jones Stephens

Plumbite® 18 x 3/4 in. Water Heater Connector

  • Fast #
  • Part #JC77478LF
  • Item #7793068
  • Manufacturer Part #C77478LF
4.7 out of 5 Customer Rating
This product requires certification to purchase.

X Points
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: 2 Available in Leesburg, VA
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

  • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
  • No soldering, glue, heat or tools required to join the pipe
  • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
  • Maximum temperature of 180°F and maximum pressure of 200 PSI
  • Can be disassembled and re-used using the disassembly tool (sold separately)
  • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
  • 5 year warranty
  • Requires Certification
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372-2022, ANSI 61-2021
ASME:
ASME A112.18.6-2017, ASME A112.18.1-2018
Application:
Potable Water
Automatic Shut-Off:
No
BAA Compliant:
No
CARB OTC LEED Compliant:
No
CSA Certified:
CSA B125.6-17, CSA 61-2019, CSA B125.1-18
Collection:
Plumbite®
Color Finish Category:
Stainless Steel
Color Finish Name:
Stainless Steel
EPA Compliant:
No
ETL Listed:
No
End Connection 1:
FIPS
End Connection 2:
FIPS
End Connections:
FIPS x FIPS
Energy Star Compliant:
No
FM Approved:
No
Fits Pipe Size:
3/4 in
Fitting Size 1:
3/4 in
Fitting Size 2:
3/4 in
Fitting Sizes:
3/4 in
Fitting Type:
Connector
GSA Approved:
No
Height:
1-7/20 in
IAPMO Listed -:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
18 in
MA Approved -:
Yes
Material:
Stainless Steel
Maximum Temperature:
180
NSF:
NSF 372-2022
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
200 psi
Product Type:
Braided
Rigid:
No
Size:
3/4 in x 3/4 in x 18 in
Type:
Braided
UL Listed:
No
Valve Operator:
Lever Handle
Water Supply Connector Type:
Water Heater
WaterSense Labeled:
No
Weight:
8.2 oz
Width:
1-7/20 in
