750V 600A Electrical Meter & Multimeter
Klein Tools
750V 600A Electrical Meter & Multimeter
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Klein Tools
750V 600A Electrical Meter & Multimeter
CL445
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description

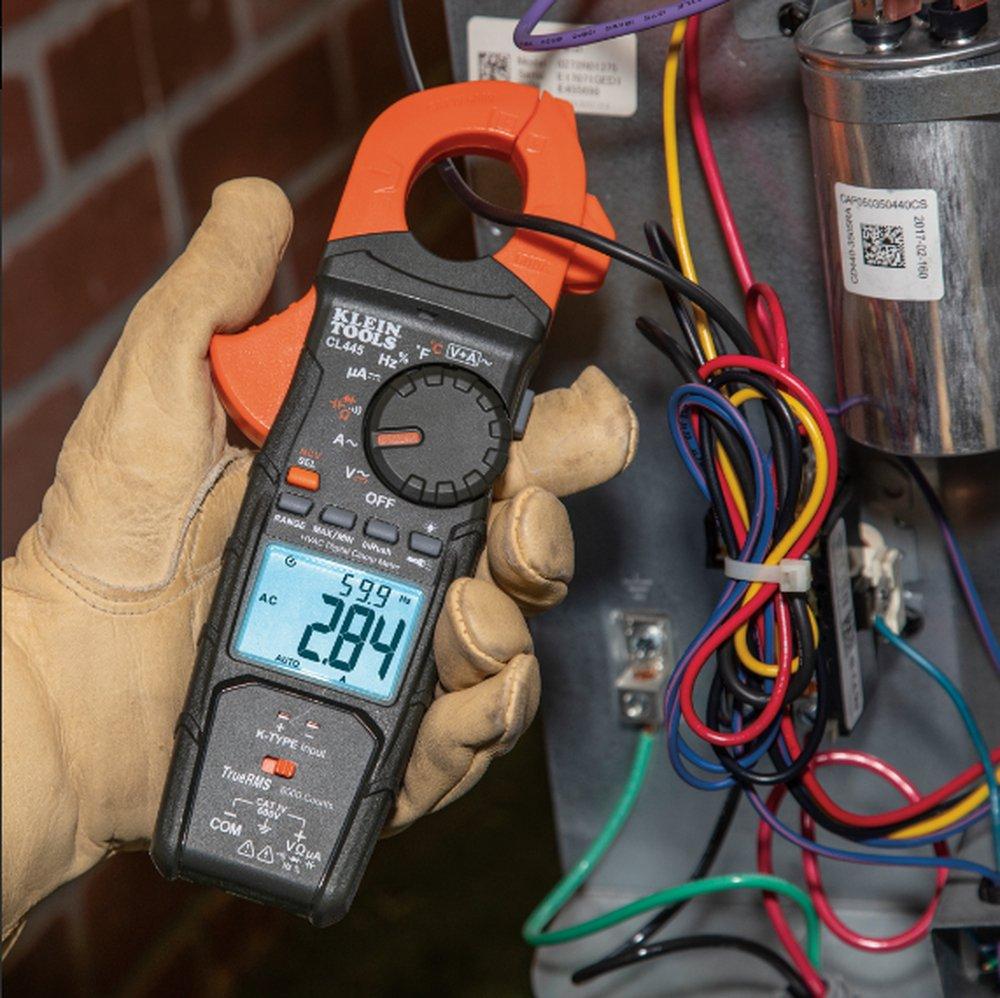

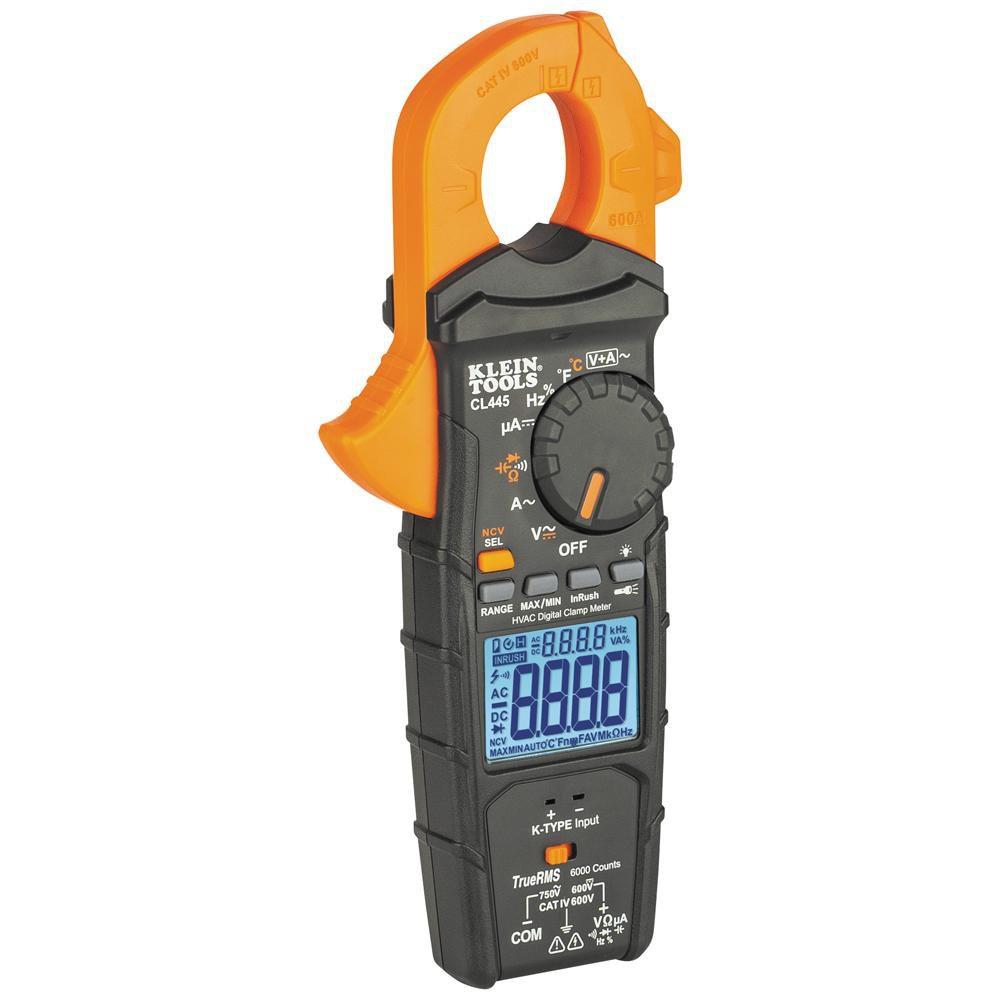

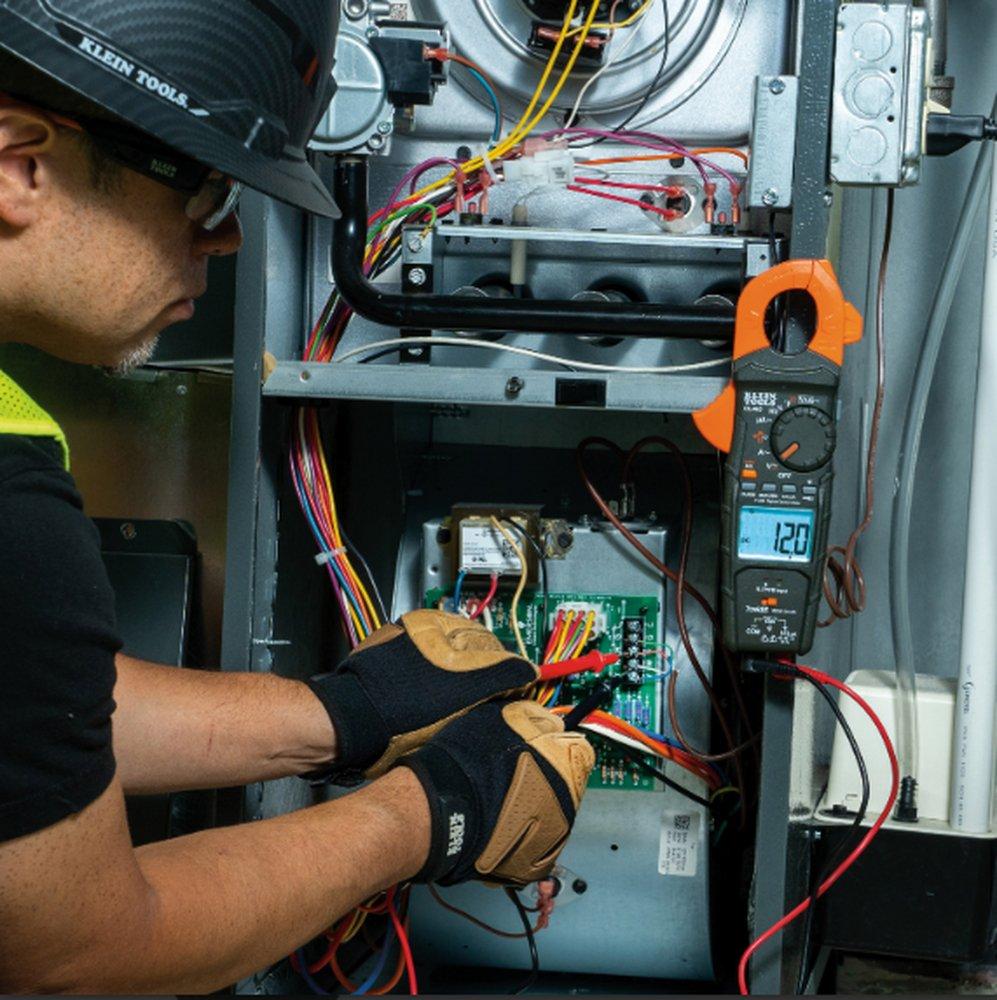

- CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
- Digital clamp measures 600 A AC current and inrush current
- Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
- K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
- Detect AC current with non-contact voltage tester integrated into the clamp jaw
- Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
- Dedicated mode for capturing DC micro amp and inrush current

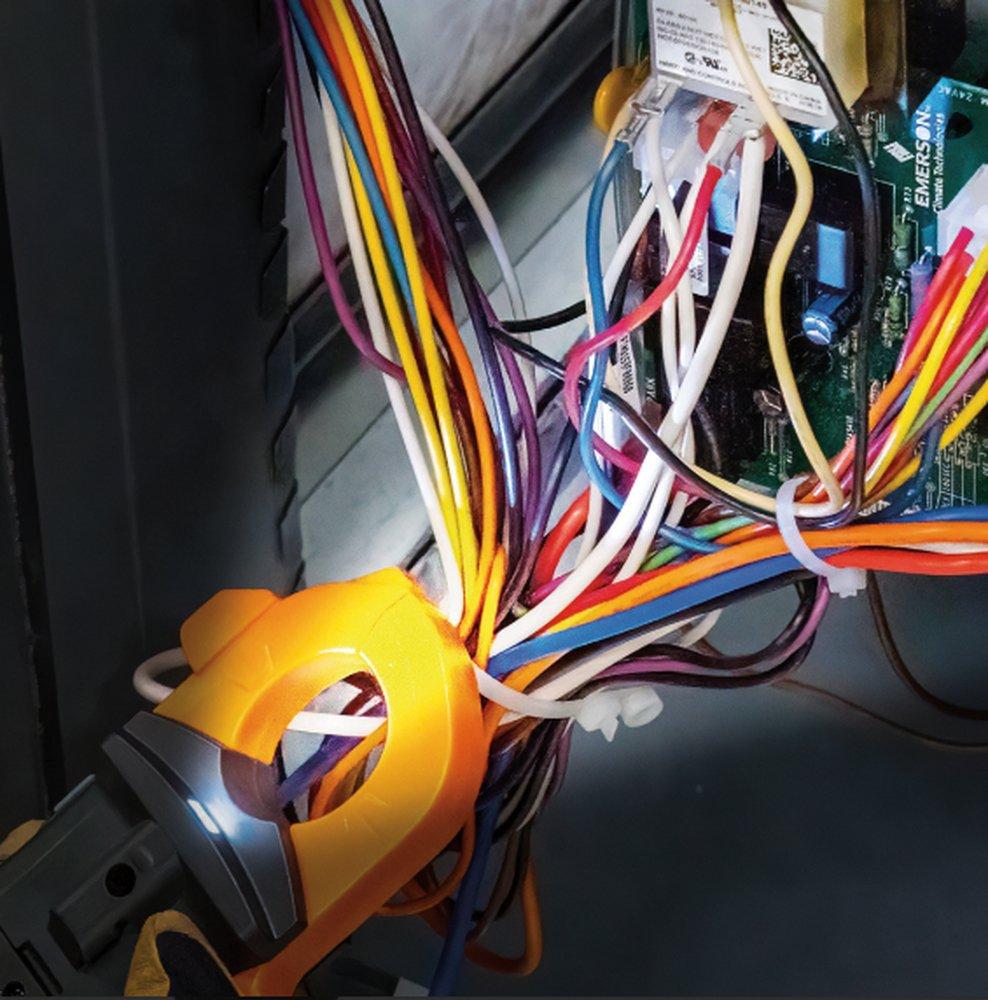

- Meter has a built-in work light to illuminate in low light areas
- CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

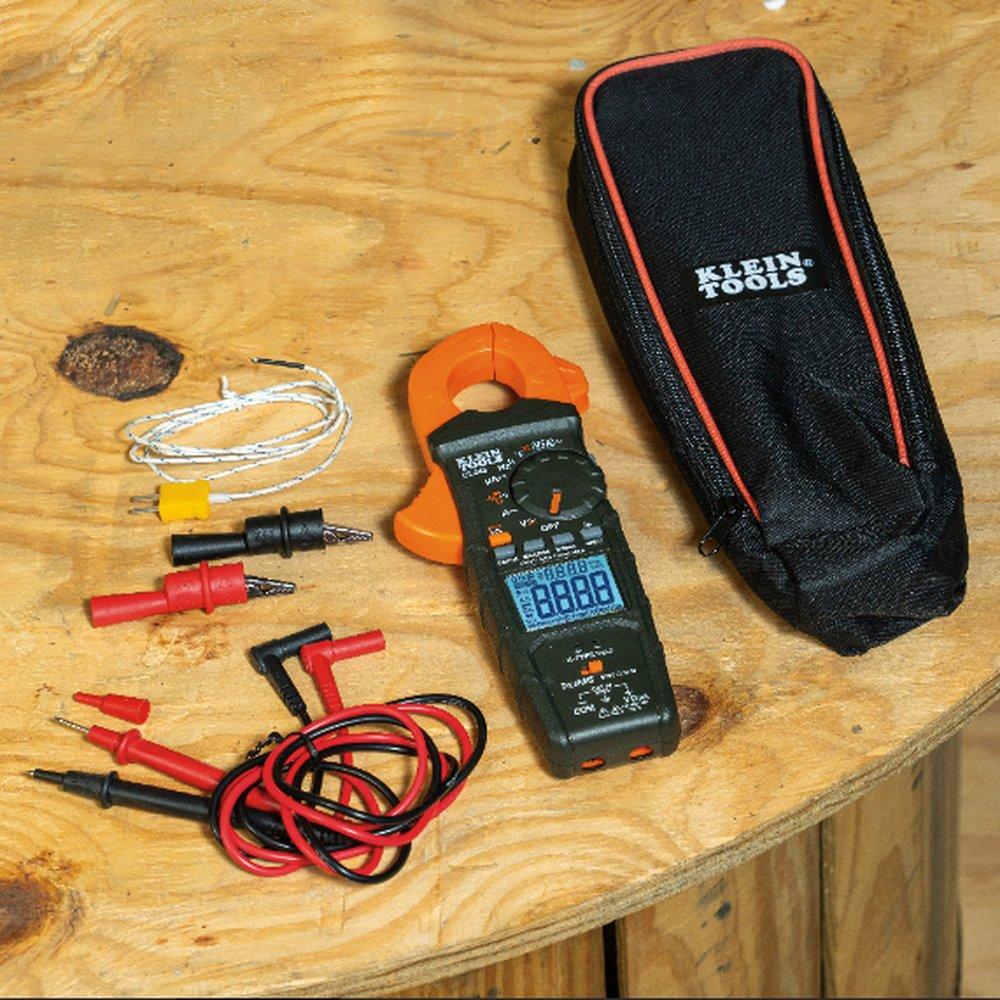

- Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Dimensions & Measurements
Height
1-59/100 in
Length
9-6/25 in
Weight
12.5 oz
Width
3-77/100 in
Characteristics & Features
Battery Size
AAA
Battery Type
Alkaline
Color Finish Name
Black, Orange, Red, Yellow
Material
Plastic
Material Type
ABS
Meter Type
Clamp Meter
Number of Tools Included
1
Tool Type
Meter
Electrical & Operational Information
AMP
600
Automatic Shut-Off
Yes
Power Source
Battery
Temperature Range
-148 to 1832 Deg F
Volts
750VAC, 600VDC
Warranty & Product Information
Application
AC Current Measurement
CE Approved
Yes
UL Listed
UL 61010-1/UL 61010-2-032
