8 in. Stainless Steel Coupling
Krausz USA

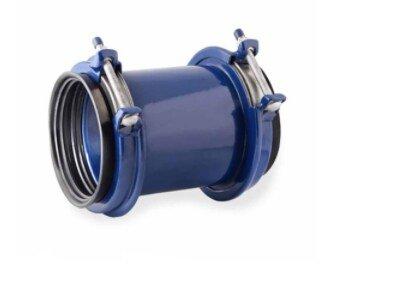

Hymax® 2 8 in. Stainless Steel Coupling
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
Krausz USA
Hymax® 2
8 in. Stainless Steel Coupling
860-54-0217-16
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Non-restrained, only two bolts, wide range-easy install.
- Connect pipe w/ same or different O.D.'s
- 1.5-60"-inch Sizes available
- Hydraulic gasket w/4-degrees Deflection-less load on pipe w/flexible EPDM gasket
Dimensions & Measurements
Fitting Size 1
8 in
Fitting Size 2
8 in
Fitting Sizes
8 in
Length
10-4/5 in
Pressure - Maximum
390 psi
Weight
28 lb
Characteristics & Features
Clean Bagged
No
Coating
Fusion Bonded Epoxy
Collection
Hymax® 2
Fitting Type
Coupling, Straight
Material
Stainless Steel, Rubber
Material Type
304, EPDM
Electrical & Operational Information
Maximum Temperature
125
Warranty & Product Information
Application
HVAC, Cast Iron Pipe, Copper Pipe, Ductile Iron Pipe, Steel Pipe
ASTM
ASTM A-240, ASTM A-283 Grade C, ASTM A-283M Grade C, ASTM A-351 CF8, ASTM D-2000, ASTM F-593, ASTM F-594
AWWA
AWWA C-219
FM Approved
No
IAPMO Listed
No
NSF
NSF 372, NSF 61
NSF Certified
Yes
UL Listed
No
