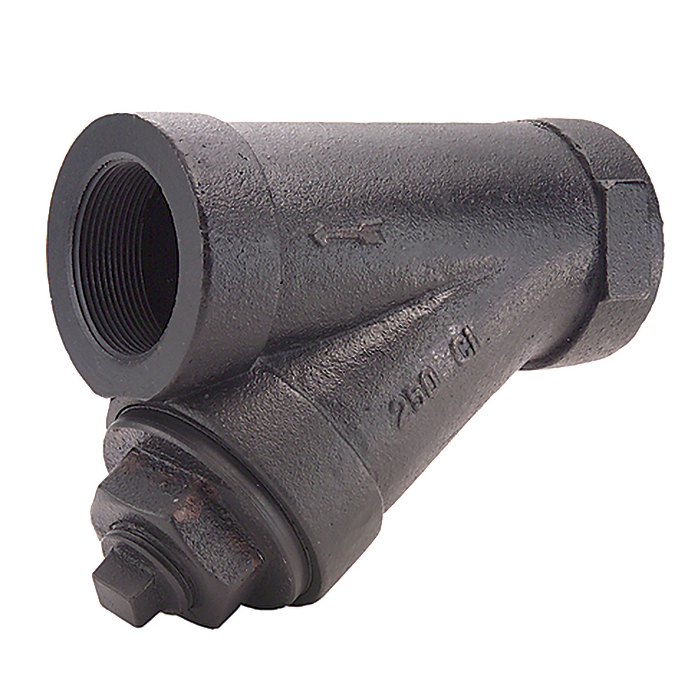

Wye 1/2 in. Cast Iron FNPT 20 Mesh Valve Strainer
Legend Valve & Fitting
T-17 Wye 1/2 in. Cast Iron FNPT 20 Mesh Valve Strainer
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Legend Valve & Fitting
T-17
Wye 1/2 in. Cast Iron FNPT 20 Mesh Valve Strainer
105-523
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- T-17 Cast Iron Y-Strainer, FNPT x FNPT
- ISO 9002
- 250 WSP
- 500 CWP
- 20-Mesh 304 stainless steel screen
- Naturally lead free
- Designed to protect downstream components, by trapping and holding debris under pressure
- Uni-directional flow. Can be installed horizontally or vertically, where the screen cap must be positioned downward. In the vertical position, the media must flow downward
- Sizes 1/4 in to 2 in are equipped with a 304 stainless steel 20-Mesh screen. Sizes 2-1/2 in and 3 in are equipped with a 304 stainless steel 1/16 in round-perforated strainer
- All sizes are furnished with a square-head closure plug that is pre-installed and ready for service
Documents
Dimensions & Measurements
End Connection 1
FNPT
End Connection 2
FNPT
End Connections
FNPT
Fitting Sizes
1/2 in
Height
2 in
Length
3-1/4 in
Mesh Size
20
Pressure Class
250#, 500#
Characteristics & Features
Collection
T-17
Installation Type
Horizontal, Vertical
Material
Cast Iron, Stainless Steel
Material Type
304, A126
Strainer Type
Wye
Valve Body Material
Cast Iron
Valve Type
Y-Strainer
Electrical & Operational Information
Pressure - High
250, 500
Warranty & Product Information
ANSI
ANSI B1.20.1, ANSI B16.3
ASME
ASME B1.20.1
ASTM
ASTM A-126 Class B, ASTM A-197, ASTM A-240
BAA Compliant
No
Recommended Valve Application
Saturated Steam
UL Listed
No
