2 hp 208/230V 1-Phase Submersible Grinder Pump with 25 ft. Cord

Liberty Pumps

LSG Series 2 hp 208/230V 1-Phase Submersible Grinder Pump with 25 ft. Cord

  • Fast #
  • Part #LLSG202M
  • Item #2369088
  • Manufacturer Part #LSG202M
3.3 out of 5 Customer Rating
Brand image

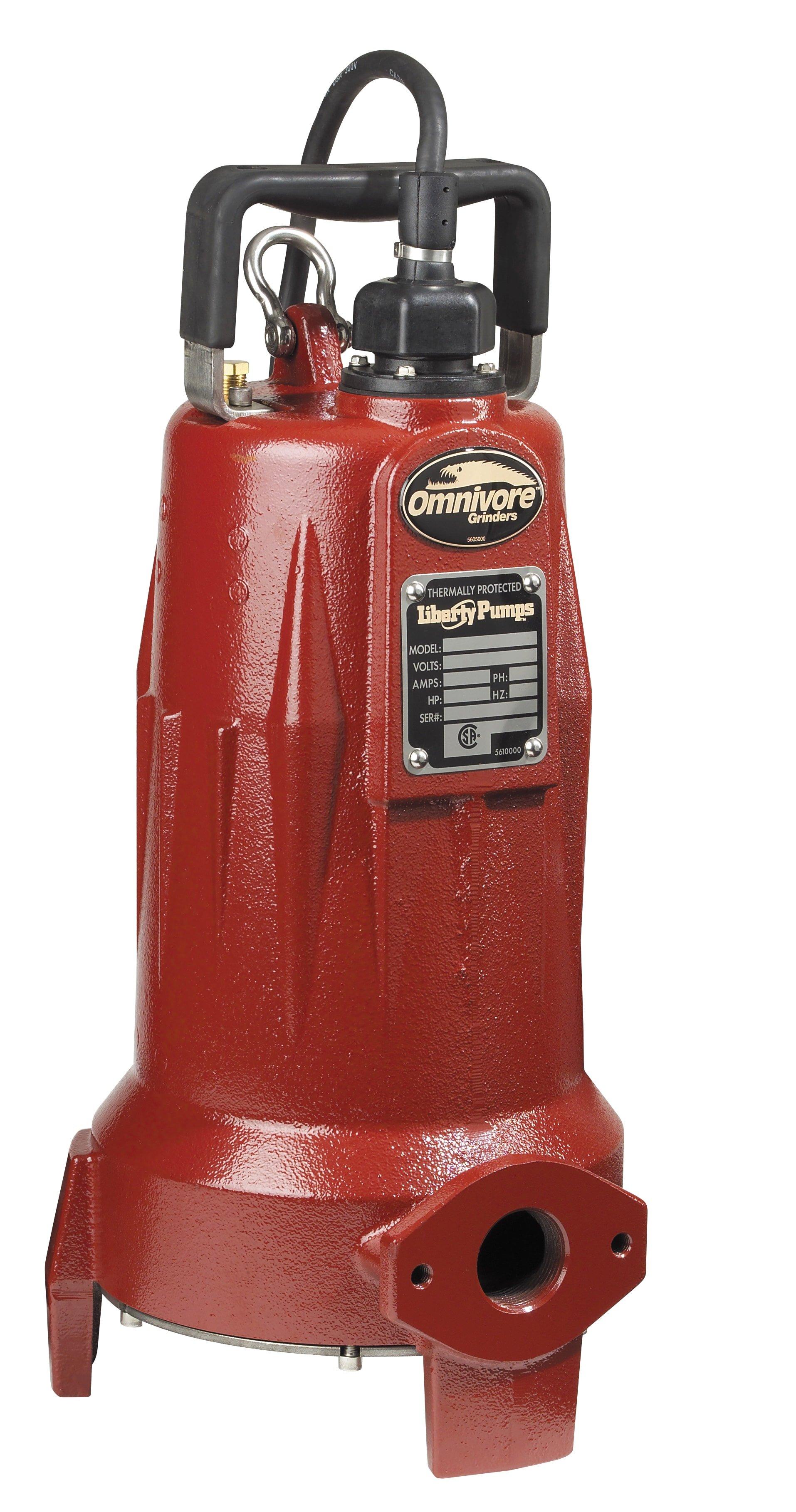

Liberty Pumps Red 2 hp 208/230V 1-Phase Submersible Grinder Pump
Liberty Pumps Red 2 hp 208/230V 1-Phase Submersible Grinder Pump
null
null
Liberty Pumps

LSG Series 2 hp 208/230V 1-Phase Submersible Grinder Pump with 25 ft. Cord

  • Fast #
  • Part #LLSG202M
  • Item #2369088
  • Manufacturer Part #LSG202M
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 18
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Omnivore® grinder
  • One-piece unibody casting
  • Stainless steel impeller
  • 300 Series SS rotor shaft
  • Quick-connect 25' power cord
  • Internal capacitor
  • 25' power cord
  • Requires Certification
Dimensions & Measurements
Cord Length
25 ft
Diameter
12-69/100 in
Discharge
1-1/4 in
End Connection 1
FNPT
End Connection 2
Flanged
End Connections
FNPT x Flanged
Fitting Size 1
1-1/4 in
Fitting Sizes
1-1/4 in
Flow Rate
50 gpm
Height
19-38/59 in
Length
9-24/71 in
Maximum Feet of Head
110
Weight
86 lb
Width
12-1/2 in
Included Components
Built-In Grinder
Yes
Cover Included
No
Characteristics & Features
Brand Model Compatibility
Omnivore Grinder Pump
Coating
Powder Coated
Collection
LSG Series
Color Finish Category
Reds
Color Finish Name
Red
Discharge Configuration
Horizontal
Impeller
Vortex
Material
Cast Iron
Proposition 65
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Pump Body Material
Cast Iron
Pump Motor Type
Thermally Protected
Pump Mounting
Free Standing
Pump Phase
1
Pump Stage
1
VA Cat 60 Hz
230
Electrical & Operational Information
AMP
15
Automatic Shut-Off
No
Horsepower
2 hp
Maximum Temperature
104
Phase
Single Phase
Power Source
Electric
RPM
3450
Volts
208/230V
Warranty & Product Information
CSA Certified
CSA 22.2 No. 108
UL Listed
UL 778
UPC
671812110180
