Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze

Lithonia Lighting

QTE Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze

  • Fast #
  • Part #L276ALH
  • Item #9920125
  • Manufacturer Part #ESXF1 ALO SWW2 KY DDB M2
4.5 out of 5 Customer Rating
Brand image
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze
Lithonia Lighting

QTE Adjustable LED Floodlight with Switchable Lumens and CCT in Dark Bronze

  • Fast #
  • Part #L276ALH
  • Item #9920125
  • Manufacturer Part #ESXF1 ALO SWW2 KY DDB M2
4.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Description

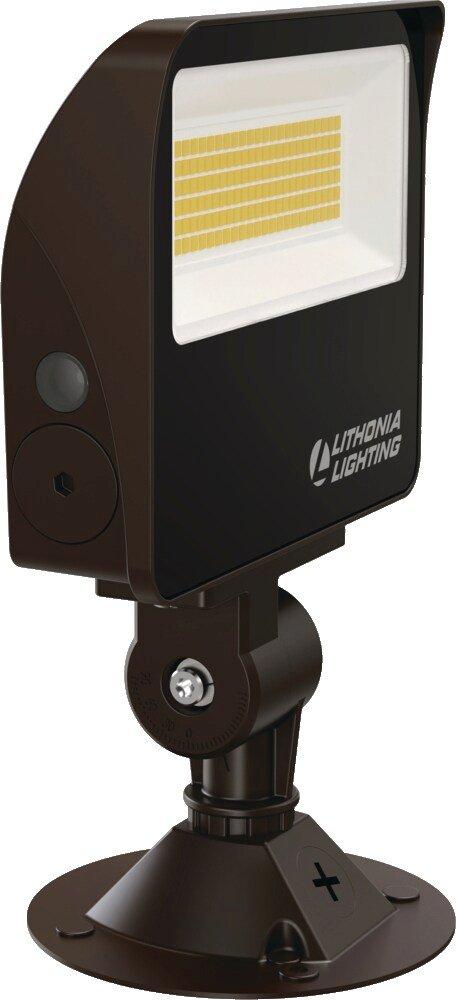

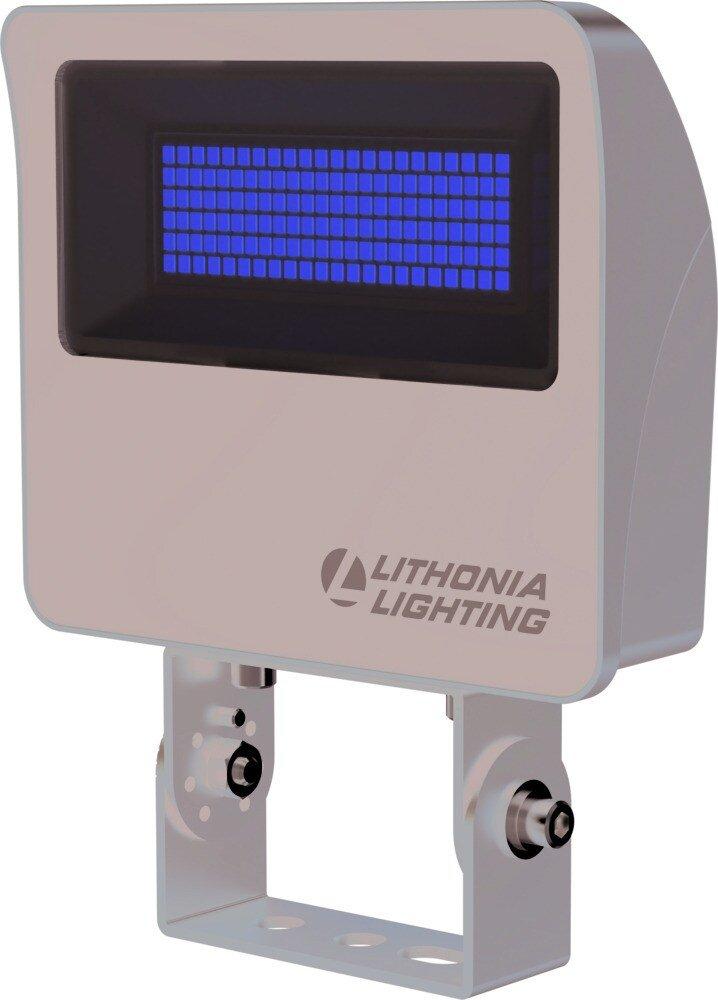

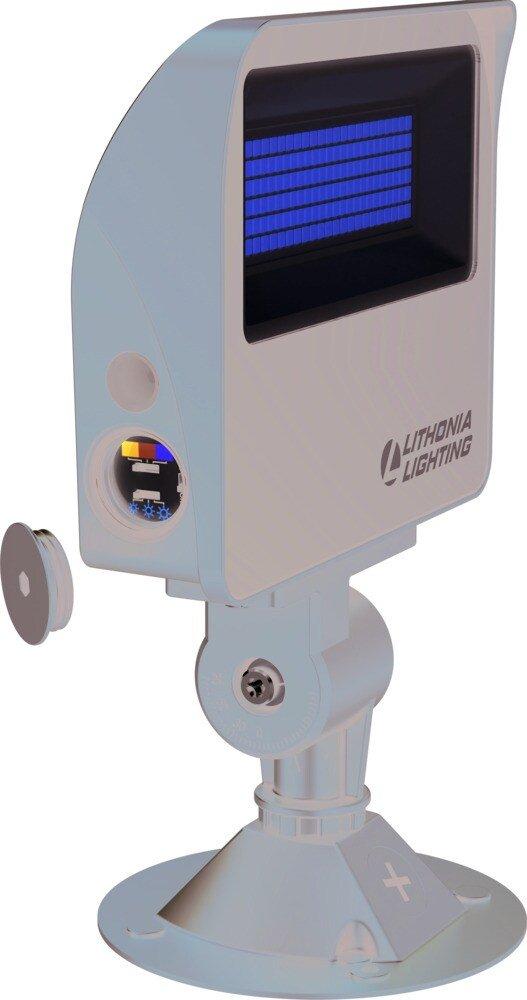

  • The Lithonia Lighting ESXF LED all-in-one floodlight gives you the precise illumination you want, whenever and wherever. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot.
  • DESIGN: The Lithonia Lighting ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 1500, 3000, and 5000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor 90% and THD
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Ships with ½ NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
  • Requires Certification
Dimensions & Measurements
Depth
2-9/25 in
Height
1-43/50 in
Length
7-13/20 in
Weight
2.31 lb
Width
6-1/25 in
Characteristics & Features
Collection
QTE
Color Finish Category
Bronze Tones
Color Finish Name
Dark Bronze
Color Temperature
5000
Dimmable
No
Glass Type
Tempered
Installation Type
Wall Mount
Light Bulb Base Type
Integrated
Light Bulb Beam Type
Flood
Light Bulb Type
LED
Material
Aluminum
Number of Lights
1
Electrical & Operational Information
Average Life
10 yr
Lumens
5000
Power Source
Hardwired
Volts
120V-277V
Watts
34 W
Warranty & Product Information
Application
Automotive, Decorative, Education, Entertainment, Foodservice, Government, Hospitality, Manufacturing, Office, Banks, Parking Garages, Residential, Retail, Sporting Events, Recreation
CSA Certified
No
ETL Listed
No
Type
L276ALH
UL Listed
Yes
UPC
196182393204
