1 in. Plastic Ultrasonic Meter
Master Meter

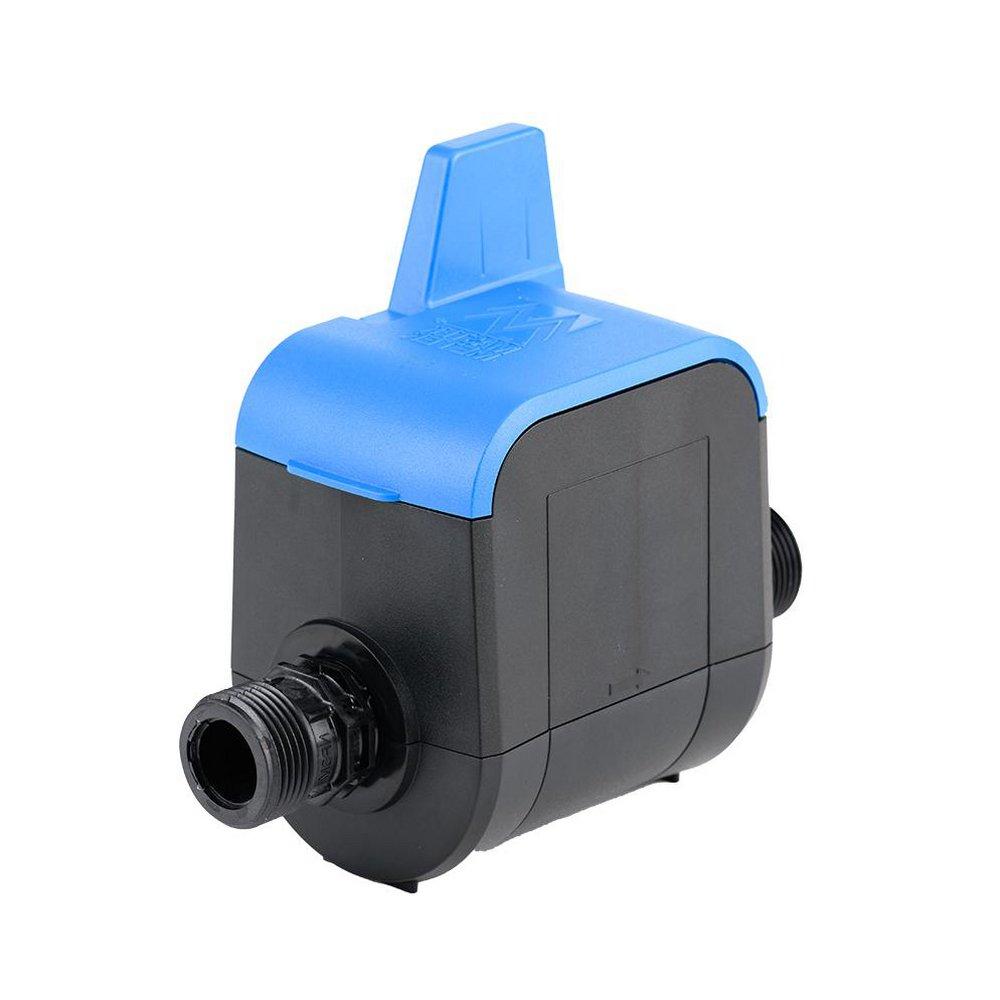

Sonata® 1 in. Plastic Ultrasonic Meter
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Master Meter
Sonata®
1 in. Plastic Ultrasonic Meter
S116-B00-E09-F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Flow sensitivity starting as low as 0.001 gpm
- Powerful solution to reduce non-revenue water
- Compliant with safe drinking water act (SDWA)
- No moving parts for lifetime accuracy
- Prorated 20 year battery life
- Patented obstruction free flow tube minimizes head loss and risk of damage to sonic reflectors
- Detailed LCD features totalized flow, rate of flow, battery alarm, leak alarm, burst pipe alarm, and tamper alarm
- Fully submersible; IP68 design
- Optional Internal RF module for master meter allegro AMI or master meter 3G AMR systems
- Optional encoder output with a wired pigtail, nicor compatible connector, or Itron (ILC) compatible connector, allowing connectivity to third-party AMI or AMR systems
Dimensions & Measurements
Fitting Size 1
1 in
Fitting Size 2
1 in
Fitting Sizes
1 in
Flow Rate
55 gpm
Length
10-3/4 in
Weight
2.25 lb
Width
3 in
Characteristics & Features
Collection
Sonata®
Material
Plastic
Material Type
Glass Reinforced Polymer
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI C715-18
AWWA
AWWA C-715
ISO
ISO 4064
NSF
NSF 372, NSF 61
NSF Certified
Yes
Product Type
Ultrasonic Meter
