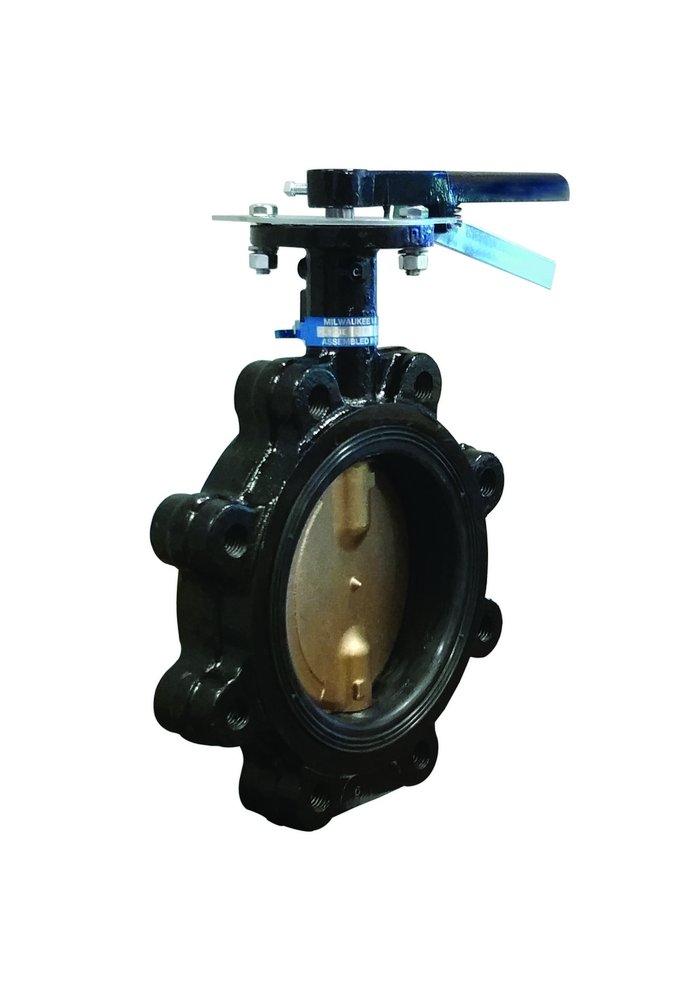

2-1/2 in. Cast Iron EPDM Lever Handle Butterfly Valve
Milwaukee Valve
ML Series 2-1/2 in. Cast Iron EPDM Lever Handle Butterfly Valve
Package Quantity Info:
Each: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Milwaukee Valve
ML Series
2-1/2 in. Cast Iron EPDM Lever Handle Butterfly Valve
ML224E D K
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- EPDM liner
- Four bolt holes
- Cast iron butterfly valve, lug pattern, EPDM liner
- Bubble-tight shut-off
- ABS approved product (2″ - 24″)
- Non-shock
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (.25%) of lead by weight
- Actuation, memory stop, stem extension, chain wheel
- 2″ - 12″ rated 200 psi, 14″ - 48″ rated 150 psi
Dimensions & Measurements
End Connection 1
Lug
End Connection 2
Lug
End Connections
Lug
Height
10-11/25 in
Length
1-81/100 in
Pressure Class
200#
Valve Size
2-1/2 in
Width
5-1/2 in
Characteristics & Features
Clean Bagged
No
Collection
ML Series
Material
Cast Iron, Rubber, Stainless Steel
Material Type
CF8M, EPDM
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Cast Iron
Valve Body Style
Lug
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Seat Material
EPDM
Valve Type
Butterfly Valve
Electrical & Operational Information
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 372
API
API 609
ASTM
ASTM A126 Class B, ASTM A351
FM Approved
No
IAPMO Listed
No
ISO
ISO 14001:2015, ISO 9001:2015
Lead Law Compliance Level
Lead Free Not Certified, Approved for Non-Potable Water Applications
MSS
MSS SP-67 Type 1
NSF
NSF 372
NSF Certified
Yes
Recommended Valve Application
Gas, Oil, Water
UL Listed
No
UPC
697988623392
