18000 Btu/h, Mini-Split Single-Zone R-410A 208/230V
Mitsubishi
M-Series® 18000 Btu/h, Mini-Split Single-Zone R-410A 208/230V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Mitsubishi
M-Series®
18000 Btu/h, Mini-Split Single-Zone R-410A 208/230V
MSZ-GS18NA-U1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area

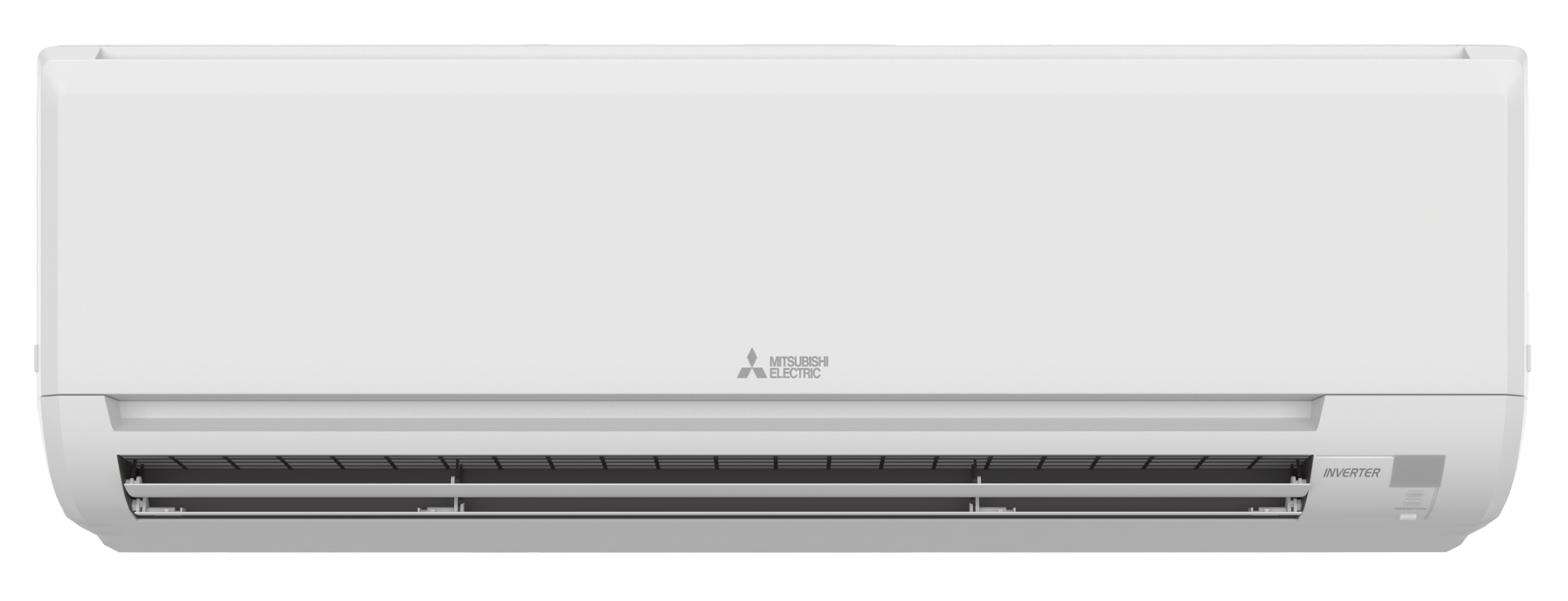

- Slim wall-mounted indoor units provide zone comfort control
- Dual barrier coating applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up
- Optional micro particle filter designed to capture PM2.5
- The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
- Quiet operation
- Smart Set: Recalls a preferred preset temperature setting at the touch of a button
- Multiple fan speed options: Quiet, low, medium, high, super-high, auto
Dimensions & Measurements
CFM
225 ft3/min
Depth
9-13/16 in
Height
12 in
Length
39 in
Liquid Line (OD)
1/4 in
Max CFM
629 cfm
Suction Line (OD)
1/2 in
Tonnage
1.5 Ton
Weight
28 lb
Width
36-5/16 in
Characteristics & Features
A2L Compatible
No
Collection
M-Series®
Indoor Outdoor
Indoor
Installation Type
Wall Mount
Refrigerant
R-410A
Electrical & Operational Information
AMP
1
BTU
18000
BTU Cooling Rating
18000 Btu/h
BTU Heat Rating
21600 Btu/h
Decibel Rating (dB)
49 dB
MBH
18
Phase
Single Phase
Volts
208/230V
Warranty & Product Information
Application
Residential
