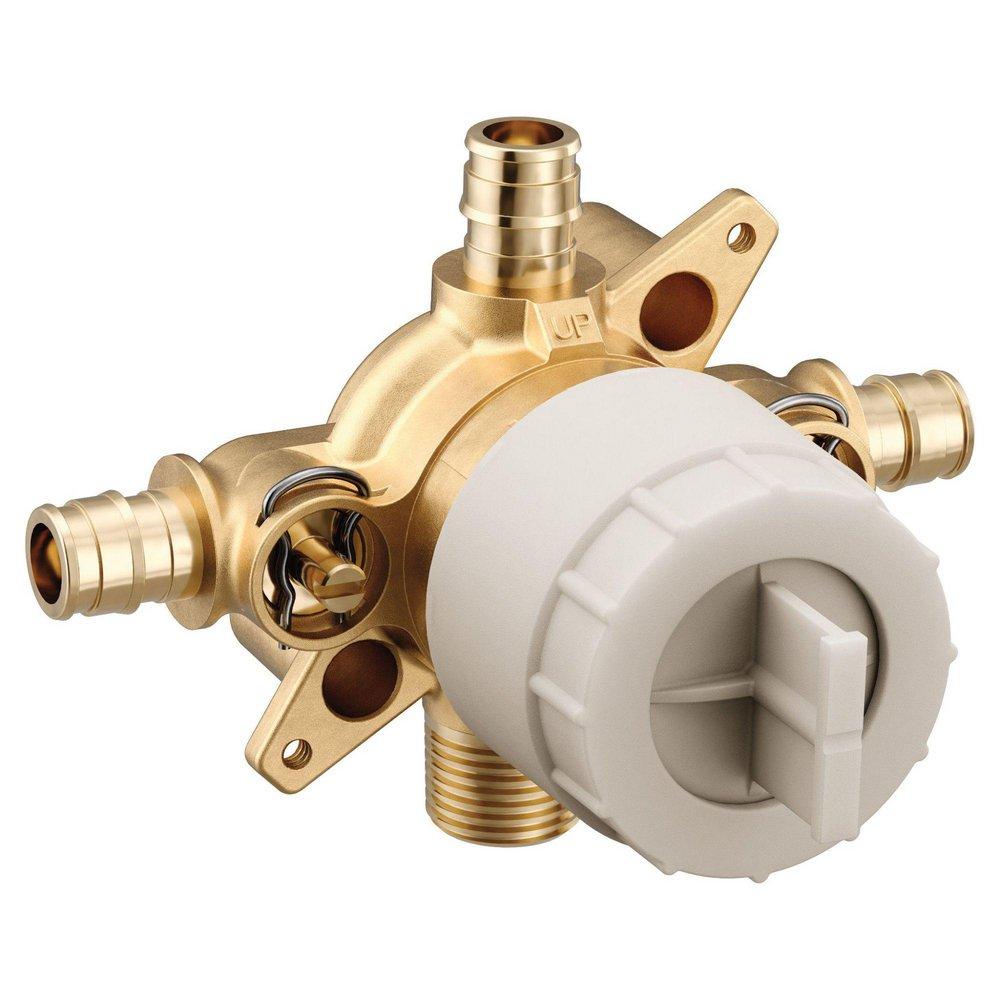

1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops
Moen
M-Core™ 1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops
Package Quantity Info:
Each: 1 Case: 6 Pallet: 462Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Moen
M-Core™
1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops
U140CXS
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
- Feature volume control, allowing you to adjust the flow of water for greater functionality
- Improved style options, including the perfectly matched mixing and transfer trim, are available
- M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration
- Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
- M-CORE’S adaptability allows the valves to be roughed-in with the option of functionality and style changes that don't require removing or changing the valve(s)
- Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
- Offers a precise temperature limit stop adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge
- M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers
- Backed by Moen’s Limited Lifetime Warranty
Dimensions & Measurements
Depth
2-1/2 in
Pressure - Maximum
200 psi
Valve Size
1/2 in
Width
5 in
Included Components
Built-in Stops
Yes
Characteristics & Features
Collection
M-Core™
Connection Type
Cold Expansion PEX
Faucet Valve Type
Pressure Balancing
Valve Body Material
Brass
Valve Type
Tub & Shower Rough-In Valve
Warranty & Product Information
ASME
ASME A112.18.1
ASSE Standards
ASSE 1016
CSA Certified
CSA B125.1
IAPMO Listed
No
NSF Certified
No
UPC
026508319499
