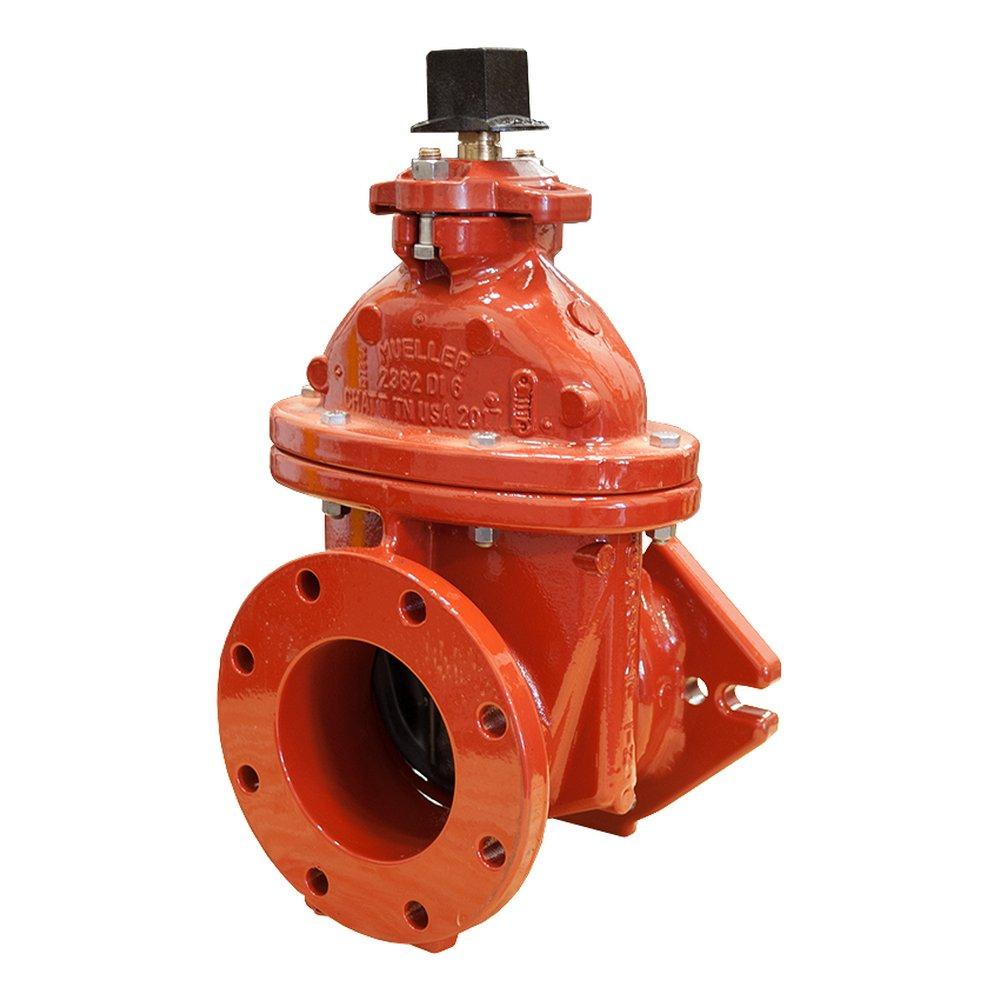

4 in. Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve

Mueller Company

A-2362 Series 4 in. Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve

  • Fast #
  • Part #MA236219E381POL
  • Item #3574371
  • Manufacturer Part #040A236219LNE381
3.7 out of 5 Customer Rating
Brand image
Mueller Company Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve
Mueller Company Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve
Mueller Company

A-2362 Series 4 in. Mechanical Joint x Flanged Ductile Iron Open Left Resilient Wedge Gate Valve

  • Fast #
  • Part #MA236219E381POL
  • Item #3574371
  • Manufacturer Part #040A236219LNE381
3.7 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • Products sold in select areas only
  • Please contact your local branch for availability in your area
  • Sizes – 2 in., 3 in., 4 in., 6 in., 8 in., 10 in., 12 in.
  • Meets or exceeds all applicable requirements of ANSI/AWWA C509 and C515, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 and 372
  • Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150
  • Mechanical joint end complies with ANSI/AWWA C111 Standard
  • Iron body with nominal 10 mils Pro-Guard® fusion bonded epoxy coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 standard
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Requires Certification
Dimensions & Measurements
End Connection 1
Mechanical Joint
End Connection 2
Flanged
End Connections
Mechanical Joint x Flanged
Length
9-1/2 in
Pressure - Maximum
700 psig
Valve Size
4 in
Weight
115 lb
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
A-2362 Series
Ductile Iron Pipe Type
Ductile Iron Mechanical Joint Pipe
Material
Ductile Iron, Rubber
Valve Body Material
Ductile Iron
Valve Body Style
Open Left
Valve Disc Material
Ductile Iron, Rubber
Valve Operator
Wrench
Valve Port Opening
Full Port
Valve Stem
Non-rising
Valve Type
Resilient Wedge Gate Valve
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI B16.1 Class 125, ANSI B16.42 Class 150, ANSI C111, ANSI C509, ANSI C550
ASME
ASME B16.1 Class 125, ASME B16.42 class 150
ASTM
ASTM A-536, ASTM B-138, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
AWWA
AWWA C-111, AWWA C-509, AWWA C-515, AWWA C-550
FM Approved
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
UL Listed
UL 262
Waterworks Application
Potable Water
