4 in. Cast Iron Flanged Check Valve
Mueller Company

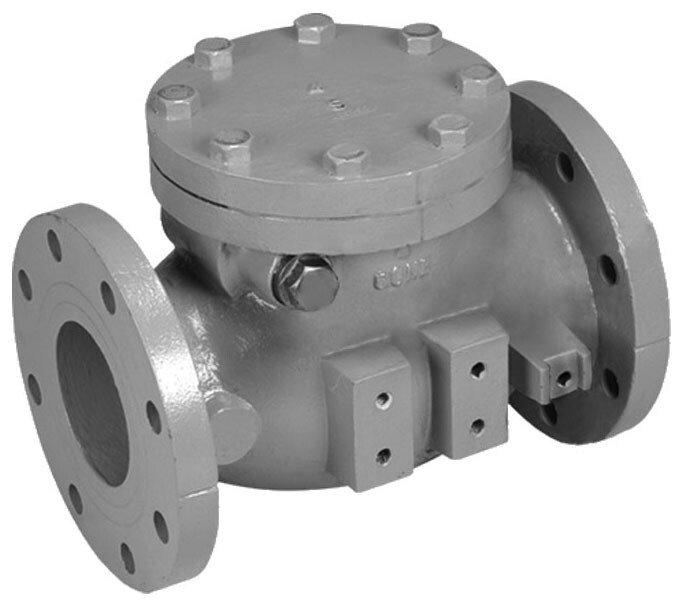

A-2600 Series 4 in. Cast Iron Flanged Check Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Mueller Company
A-2600 Series
4 in. Cast Iron Flanged Check Valve
A26026B1LW
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Non-shock
- Heavy-duty lead free swing check valve
- All bronze body, threaded cap and disc
- This valve is rated for water, oil and gas service up to 300 psi and 150 psi for steam service
- NSF/ANSI 61 IAPMO approved
- Lead free bronze swing check valve
- 150 WSP
- Horizontal pattern
- Bronze disc
- Threaded cap
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
11-1/2 in
Pressure Class
125#
Pressure - Maximum
400 psi
Valve Size
4 in
Weight
80 lb
Width
9-22/25 in
Characteristics & Features
Coating
Epoxy
Collection
A-2600 Series
Installation Type
Horizontal Mount, Vertical Mount
Material
Cast Iron, Bronze, Rubber
Valve Body Material
Cast Iron
Valve Body Style
Swing
Valve Disc Material
Cast Iron
Valve Operator
Lever
Valve Seat Material
Bronze
Valve Type
Swing Check Valve
Electrical & Operational Information
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 61, ANSI B16.1, ANSI B21, ANSI B62, ANSI C508
ASTM
ASTM A-126 Class B, ASTM A-276 Type 304, ASTM A-307 Grade B, ASTM A-47, ASTM A-536, ASTM D-2000
AWWA
AWWA C-508
NSF
NSF 61
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
No
