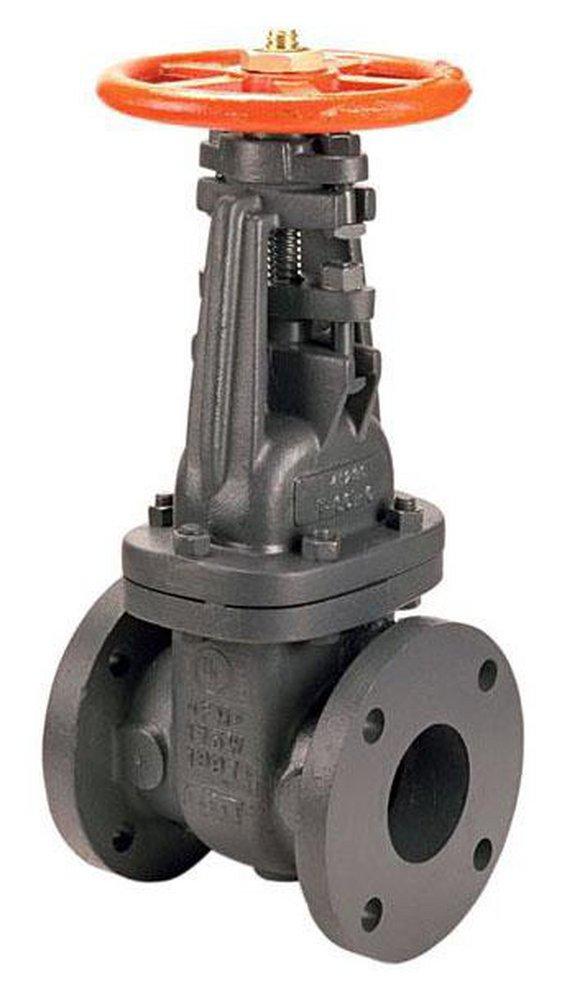

6 in. Cast Iron Full Port Flanged Gate Valve

NIBCO

6 in. Cast Iron Full Port Flanged Gate Valve

  • Fast #
  • Part #NF607OTSU
  • Item #131661
  • Manufacturer Part #NH24L0K
3.7 out of 5 Customer Rating
Brand image
NIBCO

6 in. Cast Iron Full Port Flanged Gate Valve

  • Fast #
  • Part #NF607OTSU
  • Item #131661
  • Manufacturer Part #NH24L0K
3.7 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 5
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • The NIBCO® cast iron gate valve provides full flow with minimal pressure drop
  • The NIBCO® flanged cast iron gate valve is designed to be the main control valve in an automatic fire sprinkler system
  • The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility
  • Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required
  • This valve features a pre-grooved stem for tamper switch mounting
  • Bolted bonnet
  • Solid wedge
  • Requires Certification
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Height
37 in
Length
10-1/2 in
Pressure Class
125#
Pressure - Maximum
175 psi
Valve Size
6 in
Weight
178.51 lb
Characteristics & Features
Material
Cast Iron
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Cast Iron
Valve Bonnet Type
Bolted
Valve Operator
Handwheel
Valve Port Opening
Full Port
Valve Seat Material
Cast Bronze
Valve Stem
Pre-Grooved
Valve Type
Gate Valve
Warranty & Product Information
ASME
ASME B16.14
ASTM
ASTM A126, ASTM A307, ASTM B16, ASTM B584, ASTM A563, ASTM B783
FM Approved
Yes
ISO
ISO 9001
MSS
MSS SP-70
NSF Certified
No
UL Listed
Yes
UPC
039923695222
