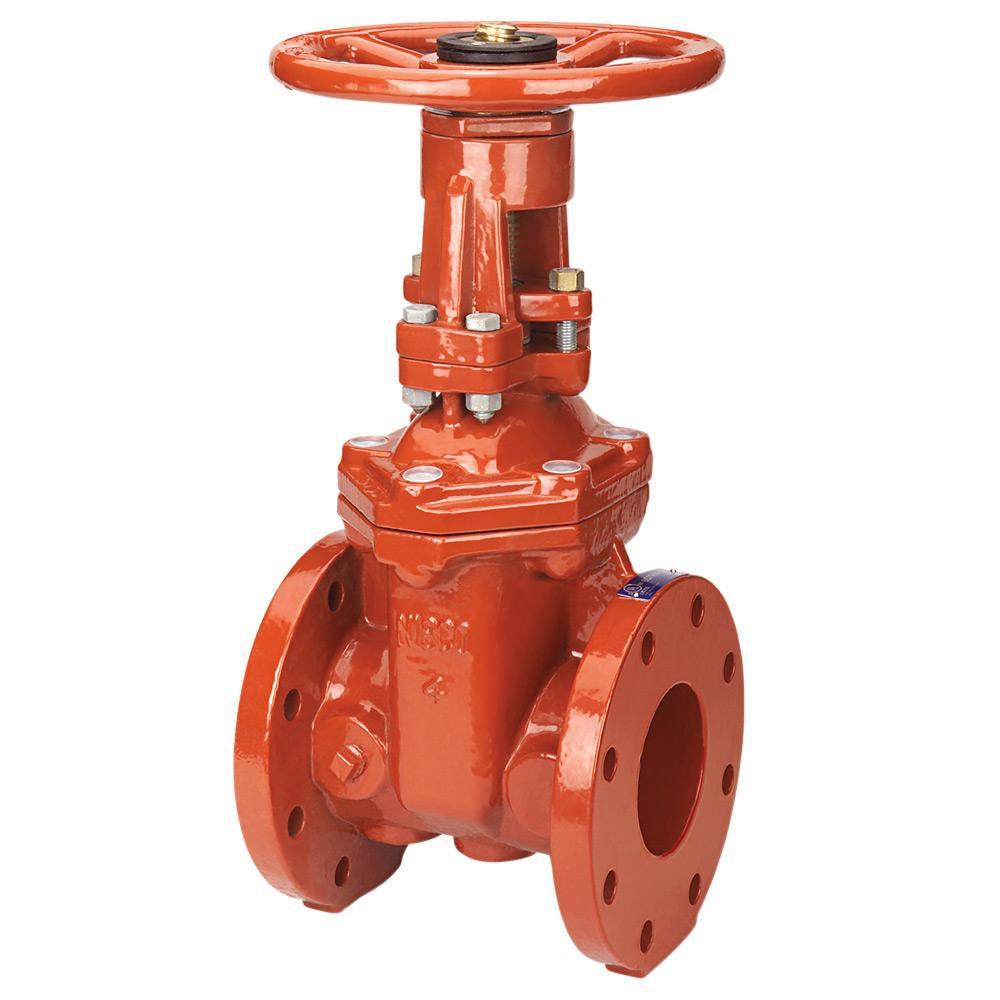

6 in. Ductile Iron Flanged Gate Valve
NIBCO
F-607-RWS 6 in. Ductile Iron Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 5Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
F-607-RWS
6 in. Ductile Iron Flanged Gate Valve
NS2921K
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 300 psi/20.7 bar non-shock cold working pressure
- Outside screw & yoke
- Bolted bonnet
- Resilient wedge
- Epoxy coated body inside and out per AWWA C-550 (coating NSF and FDA certified)
- Flanged end connections
- Meets or exceeds performance requirements of AWWA C509 and C515 for 3" and larger valves
- Listed by UL/ULC (UL262)
- FM approved
- CNBOP-PIB-KOT-2019/0103-1005 wydanie 2
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
10-1/2 in
Pressure Class
300#
Pressure - Maximum
300 psi
Valve Size
6 in
Weight
117 lb
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
F-607-RWS
Material
Ductile Iron, Rubber
Material Type
EPDM
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Ductile Iron
Valve Bonnet Type
Bolted
Valve Operator
Handwheel
Valve Seat Material
EPDM
Valve Stem
Outside
Valve Type
Resilient Wedge Gate Valve
Warranty & Product Information
ANSI
ANSI B16.1 Class 125, ANSI 61, ANSI 372
Application
Cold Working Pressure, Fire Protection
ASME
ASME B16.14
ASTM
ASTM A-126 Class B, ASTM A-276, ASTM A-536, ASTM B-148 C95200, ASTM B-150 C61400, ASTM B-584, ASTM D-2000, ASTM F-912M
AWWA
AWWA C-550
FM Approved
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
UL Listed
UL 262
UPC
039923399939
