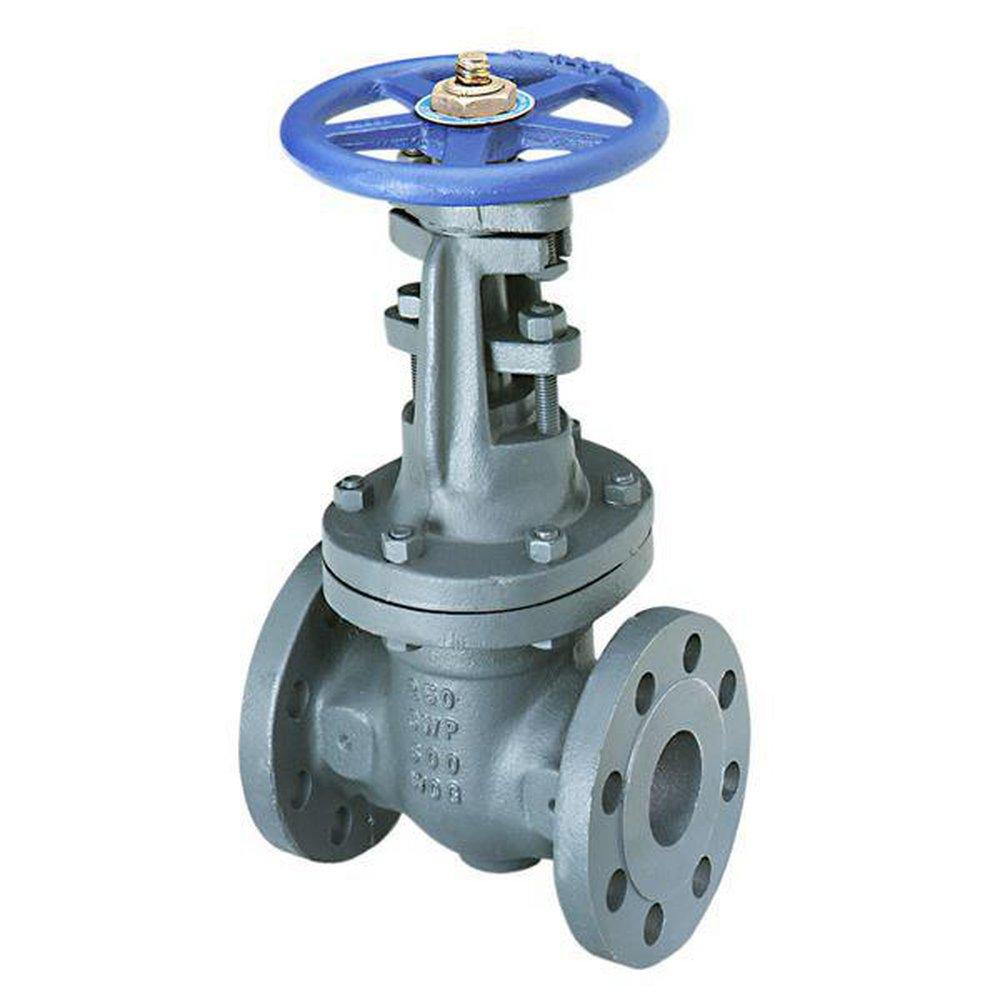

2-1/2 in. Cast Iron Full Port Flanged Gate Valve

NIBCO

F-667-O 2-1/2 in. Cast Iron Full Port Flanged Gate Valve

  • Fast #
  • Part #NF667OL
  • Item #22716
  • Manufacturer Part #NHAW00E
3.9 out of 5 Customer Rating
Brand image
NIBCO

F-667-O 2-1/2 in. Cast Iron Full Port Flanged Gate Valve

  • Fast #
  • Part #NF667OL
  • Item #22716
  • Manufacturer Part #NHAW00E
3.9 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 11
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Not Available
    Not available at this time
Looking for compatible parts?

Product Details

Product Description
  • Cast iron
  • 500 psi/34.5 bar non-shock cold working pressure
  • Class 250 flanged end connections
  • Bolted bonnet
  • 250 psi/17.2 bar saturated steam to 406°F/207°C
  • Line control valve
  • Metal seated
  • Iron body bronze mounted (IBBM)
  • Outside screw and yoke
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Requires Certification
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Handle Length (in)
8 in
Length
9-1/2 in
Pressure Class
500#
Valve Size
2-1/2 in
Weight
74 lb
Characteristics & Features
Collection
F-667-O
Handle Material
Cast Iron
Material
Cast Iron, Cast Copper Alloy
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Cast Iron
Valve Body Style
Flanged
Valve Bonnet Type
Bolted
Valve Disc Material
Cast Iron
Valve Operator
Handwheel
Valve Port Opening
Full Port
Valve Seat Material
Cast Copper Alloy
Valve Stem
Outside
Valve Type
Gate Valve
Electrical & Operational Information
Maximum Temperature
450
Pressure - High
250, 500
Warranty & Product Information
ASTM
ASTM A126 Class B, ASTM A307, ASTM A536, ASTM A563, ASTM B140 C84400, ASTM B16 C36000, ASTM B584 C84400, ASTM B783
FM Approved
No
MSS
MSS SP-70
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Cold Working Pressure, Commercial, Gas, HVAC, Industrial, Mechanical, Steam, Water
UL Listed
No
UPC
039923699862
