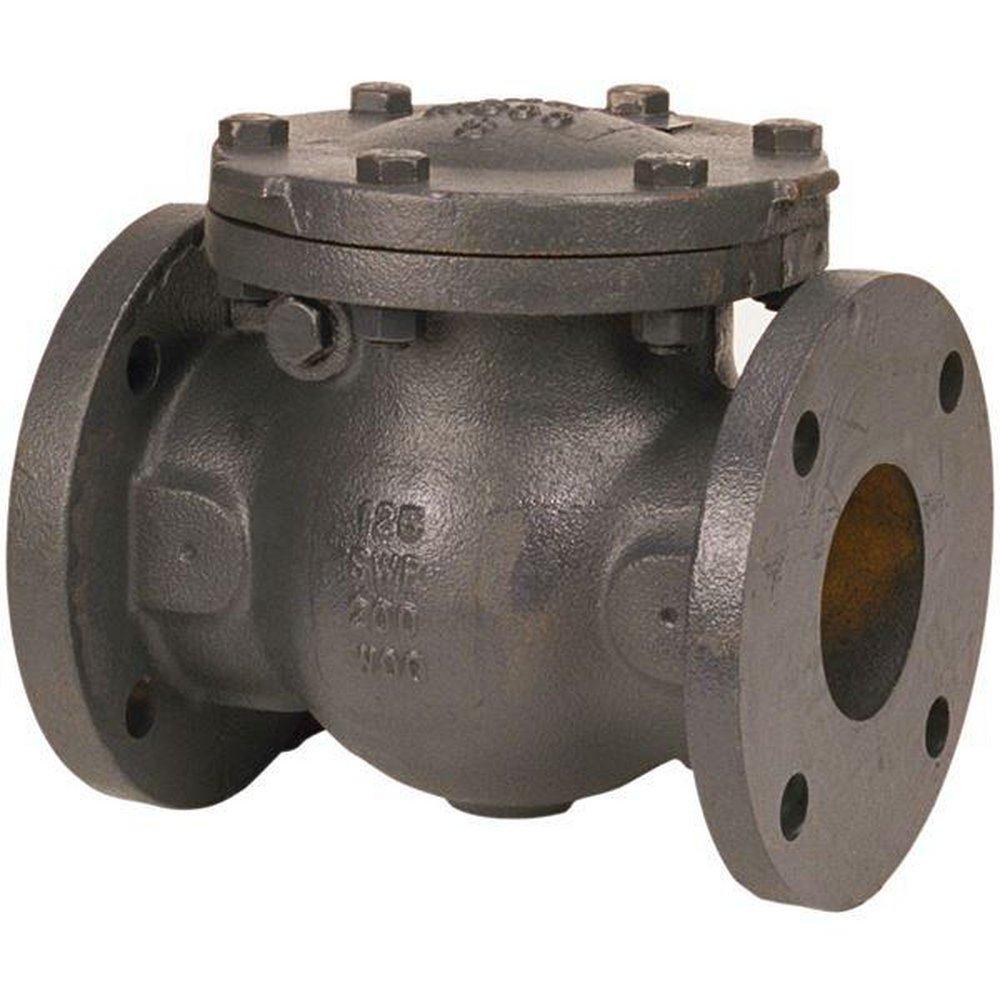

3 in. Cast Iron Flanged Check Valve
NIBCO
F-918-B 3 in. Cast Iron Flanged Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 25Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
F-918-B
3 in. Cast Iron Flanged Check Valve
NHE300F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Required safety device on all water heaters
- Cast iron body construction
- Prevents water heater from blowing up
- Includes test lever and stainless steel spring
- Features unique thermostat with special thermo-bonded coating
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- Thermostat is accurate and proven
- Features a unique thermostat with special thermo-bonded coating
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
9-1/2 in
Pressure Class
125#, 200#
Valve Size
3 in
Weight
47 lb
Characteristics & Features
Collection
F-918-B
Installation Type
Horizontal Mount, Vertical Mount
Material
Cast Iron, Brass, Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Cast Iron
Valve Body Style
Horizontal Swing
Valve Bonnet Type
Bolted
Valve Disc Material
Bronze
Valve Operator
Lever
Valve Port Opening
Full Port
Valve Seat Material
Brass
Valve Type
Swing Check Valve
Electrical & Operational Information
Maximum Temperature
650
Minimum Temperature
-20
Pressure - High
200
Warranty & Product Information
ASTM
ASTM A-126 Class B, ASTM A-307, ASTM A-536, ASTM A-563, ASTM B-16 C36000, ASTM B-584 C84400
MSS
MSS SP-71
Origin
Domestic
Recommended Valve Application
Gas, Oil, Steam, Water
UPC
039923703446
