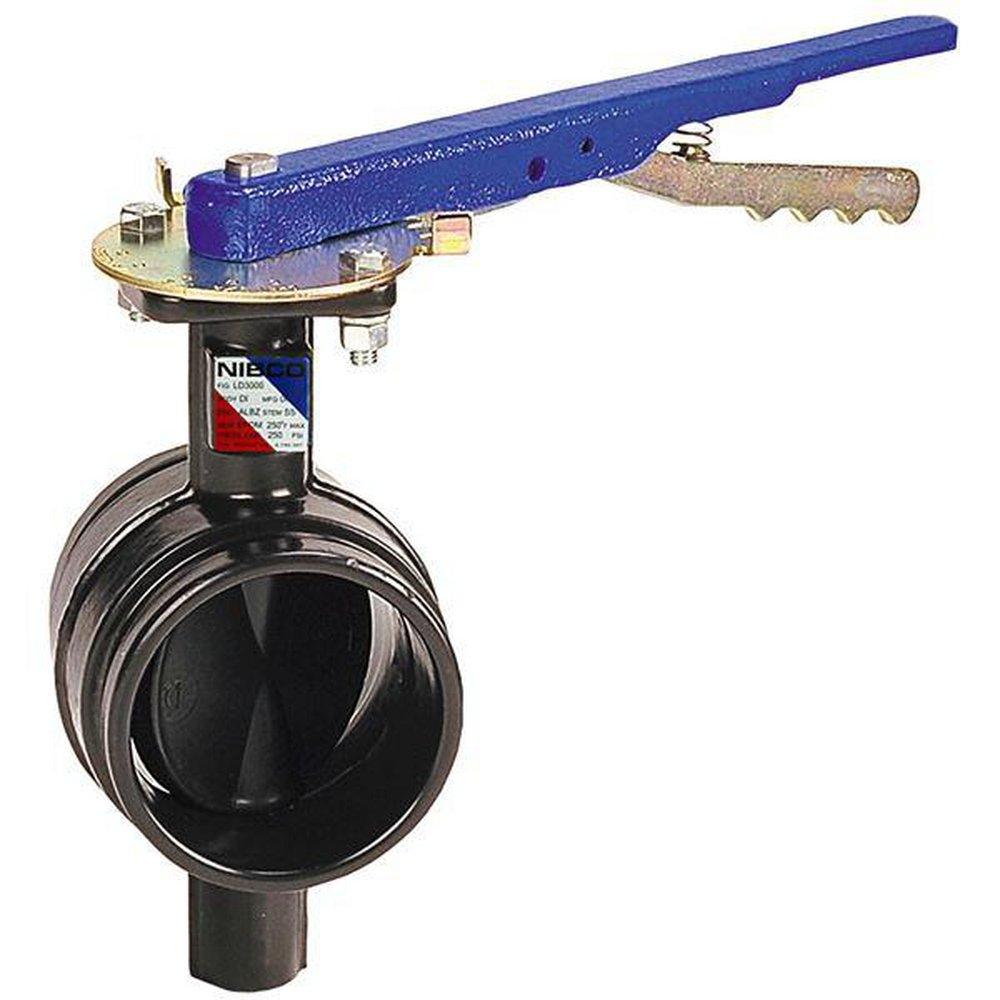

3 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

NIBCO

GD-4765 Series 3 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #NGD47653M
  • Item #1305536
  • Manufacturer Part #NLK680F
5 out of 5 Customer Rating
Brand image
NIBCO

GD-4765 Series 3 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #NGD47653M
  • Item #1305536
  • Manufacturer Part #NLK680F
5 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 80
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Not Available
    Not available at this time

Product Details

Product Description
  • Valve pressure rating 300 psi (2" to 10"); 200 psi (12" only)
  • Splined drive
  • Not recommended for steam service
  • Stainless steel valve stem material
  • EPDM encapsulated ductile iron disc
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
  • Extended neck for insulation up to 2 in
  • Grooved mechanical end connections
  • Polyamide coated body
  • Max temperature rating 200°F
  • Requires Certification
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Length
3-17/20 in
Pressure Class
300#
Valve Size
3 in
Characteristics & Features
Clean Bagged
No
Coating
Polyamide
Collection
GD-4765 Series
Material
Ductile Iron, Rubber
Material Type
EPDM
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Ductile Iron
Valve Body Style
Grooved
Valve Disc Material
Ductile Iron, EPDM
Valve Operator
Locking Lever Handle
Valve Seat Material
EPDM
Valve Stem
Non-Rising
Valve Type
Butterfly Valve
Electrical & Operational Information
Maximum Temperature
200
Pressure - High
300
Warranty & Product Information
ANSI
ANSI 372
ASTM
ASTM A395, ASTM A582 Type 416
FM Approved
No
IAPMO Listed
No
MSS
MSS SP-25, MSS SP-67
NSF
NSF 372
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Cold Water, Hot Water
UL Listed
No
UPC
039923767240
