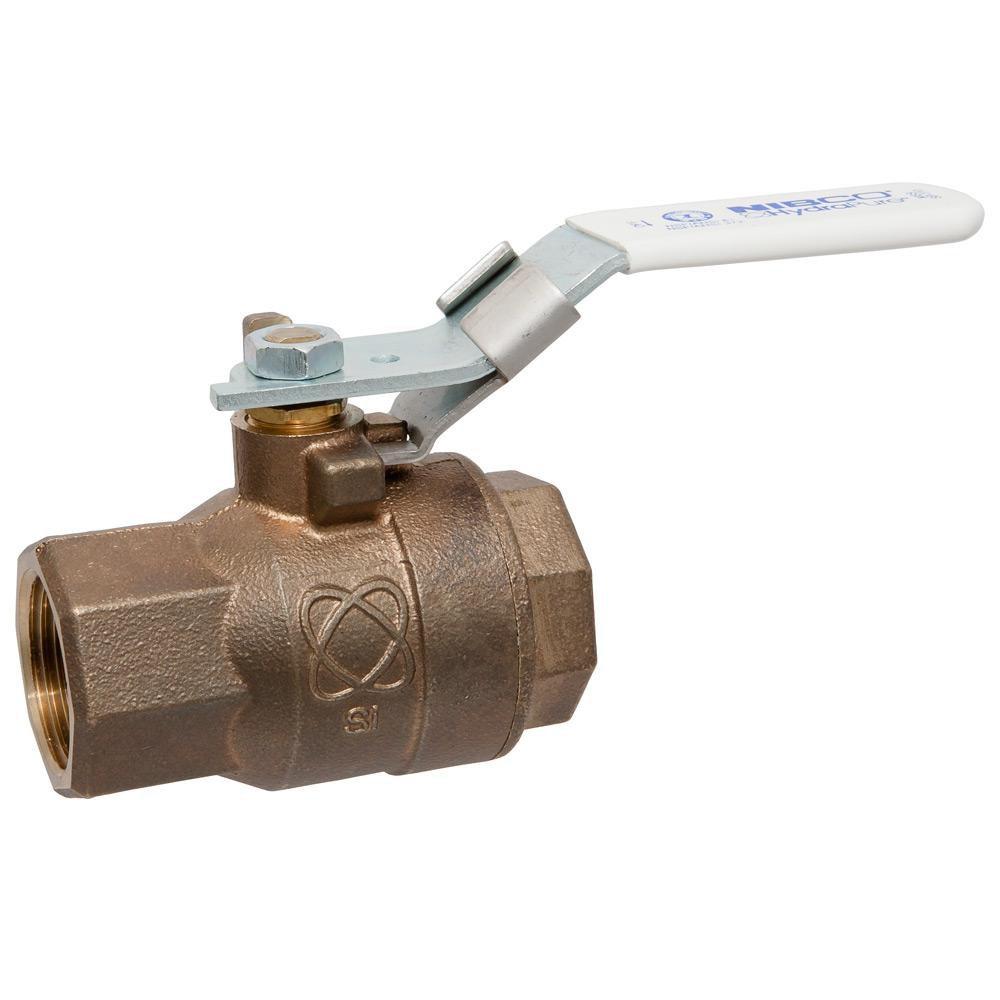

1/2 in. Silicon Bronze Full Port Threaded 600# Ball Valve

NIBCO

HydraPure® T-585-80-LF 1/2 in. Silicon Bronze Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #NT58580LFD
  • Item #4472945
  • Manufacturer Part #NLB950X6
5 out of 5 Customer Rating
Brand image
NIBCO

HydraPure® T-585-80-LF 1/2 in. Silicon Bronze Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #NT58580LFD
  • Item #4472945
  • Manufacturer Part #NLB950X6
5 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 60 Pallet: 3120
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Available
    Available for immediate shipment
Looking for compatible parts?

Product Details

Product Description
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Threaded end connections
  • Blowout-proof stem
  • Max temperature rating 300°F
  • Full port
  • Silicon Performance Bronze body, ball and stem
Product Information
  • Requires Certification
  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT x NPT
Height
2-1/2 in
Length
4-3/4 in
Pressure Class
600#
Pressure - Maximum
100 psi
Valve Size
1/2 in
Weight
0.65 lb
Width
2-1/2 in
Characteristics & Features
Clean Bagged
No
Collection
HydraPure® T-585-80-LF
Handle Material
Zinc Plated Steel
Material
Silicon Bronze, Brass
Material Type
DZR
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Style
2 piece
Valve Bonnet Type
Threaded
Valve Operator
Quarter Turn Handle
Valve Port Opening
Full Port
Valve Seat Material
Reinforced PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
300
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASTM
ASTM A-276 S31600, ASTM B-16 C36000, ASTM B-371 C69300, ASTM B-584 C87600
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Water
UL Listed
No
UPC
039923446121
