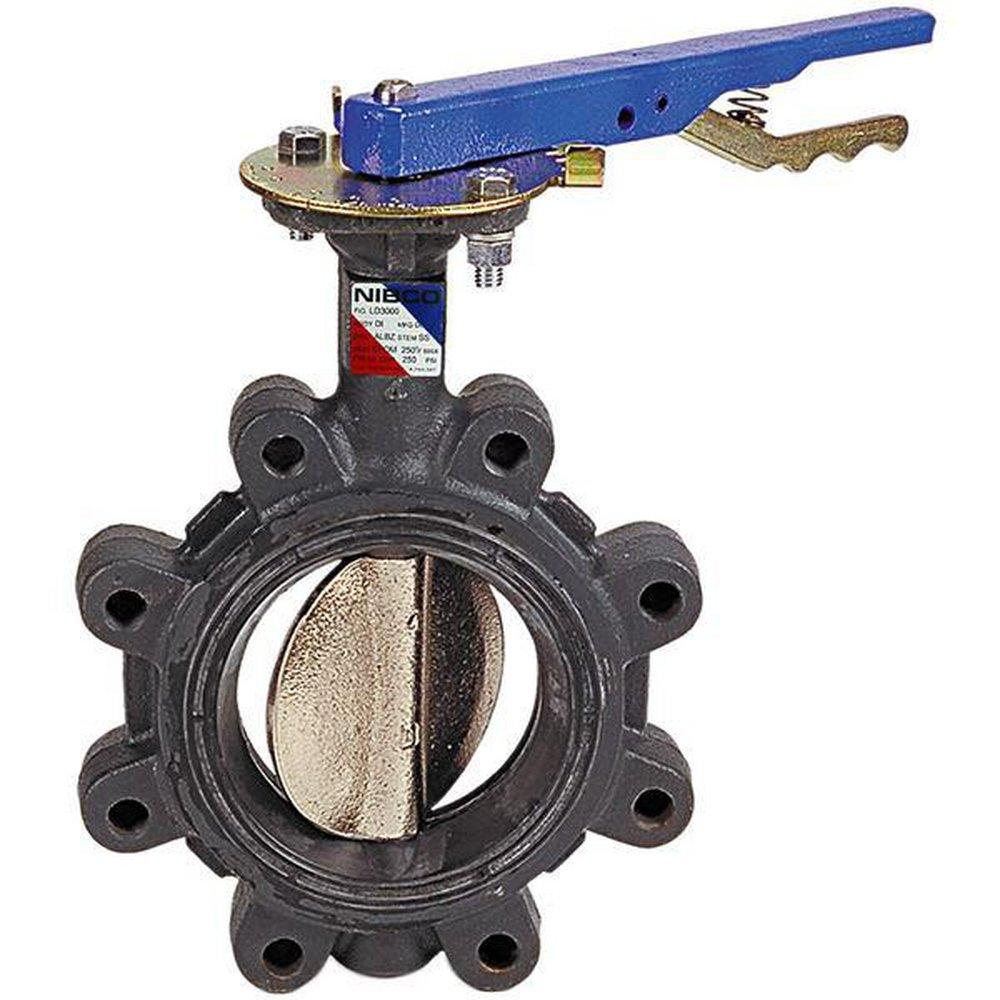

4 in. Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve
NIBCO
LD-3010 Series 4 in. Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 80Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
LD-3010 Series
4 in. Ductile Iron Lug EPDM Locking Lever Handle Butterfly Valve
NLG200H
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Ductile iron disc
- Geometric drive
- Stainless Steel valve stem material
- Valve pressure rating 250 psi
- Lug style
- EPDM molded-in seat liner
- Extended neck
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
- Not recommended for steam service
Dimensions & Measurements
End Connection 1
Lug
End Connection 2
Lug
End Connections
Lug
Length
2-3/50 in
Pressure Class
250#
Valve Size
4 in
Characteristics & Features
Collection
LD-3010 Series
Material
Ductile Iron, Stainless Steel
Material Type
416
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Ductile Iron
Valve Body Style
Lug
Valve Disc Material
Ductile Iron
Valve Operator
Locking Lever Handle
Valve Seat Material
EPDM
Valve Type
Butterfly Valve
Warranty & Product Information
ANSI
ANSI 372
ASTM
ASTM A395, ASTM A536, ASTM A582 Type 416, ASTM B16
FM Approved
No
MSS
MSS SP-25, MSS SP-67
NSF
NSF 372
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Commercial, HVAC, Industrial
UL Listed
No
UPC
039923722683
