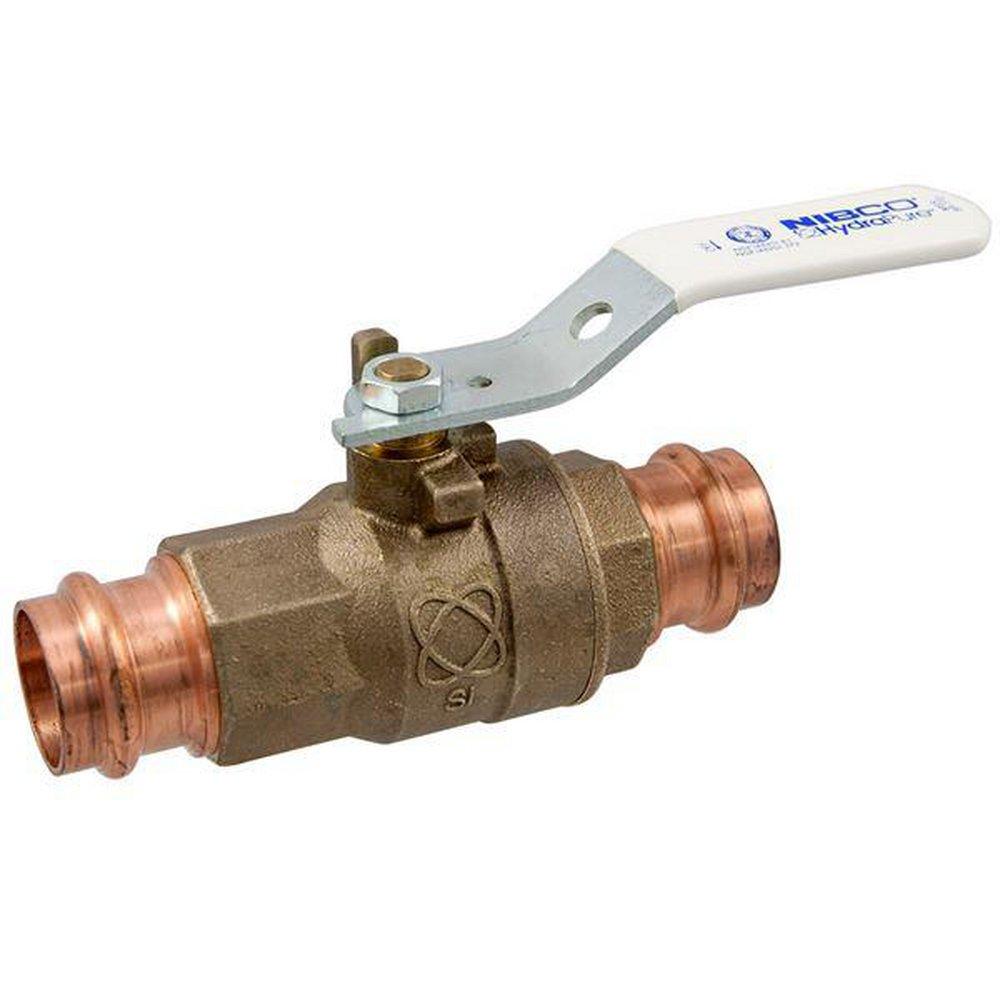

1/2 in. DZR Silicon Bronze Full Port Press 250# Ball Valve

NIBCO

PC-585-80-LF 1/2 in. DZR Silicon Bronze Full Port Press 250# Ball Valve

  • Fast #
  • Part #NPC58580LFD
  • Item #4529694
  • Manufacturer Part #NFB840X6
3.6 out of 5 Customer Rating
Brand image
NIBCO

PC-585-80-LF 1/2 in. DZR Silicon Bronze Full Port Press 250# Ball Valve

  • Fast #
  • Part #NPC58580LFD
  • Item #4529694
  • Manufacturer Part #NFB840X6
3.6 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 50 Pallet: 1500
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Lead-free
  • Silicon Performance Bronze®
  • Two-piece body
  • Press ends leak detection
  • Full port
  • Blowout-proof stem
  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Dezincification resistant
  • Multiple handle options, including NIB-SEAL®
  • Conforms to MSS SP-110
Product Information
  • Requires Certification
  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
3-93/100 in
Pressure Class
250#
Valve Size
1/2 in
Weight
0.8 lb
Characteristics & Features
Collection
PC-585-80-LF
Handle Material
Zinc Plated Steel
Material
Bronze, Plastic, Steel
Material Type
RPTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Reinforced PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
250, 600
Warranty & Product Information
ANSI
ANSI 372, ANSI 372-8, ANSI 61, ANSI Z1157
ASTM
ASTM B-16, ASTM B-371, ASTM B-584, ASTM B75
cUPC Certified
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 372-8, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UPC
039923446299
