This product requires certification to purchase.

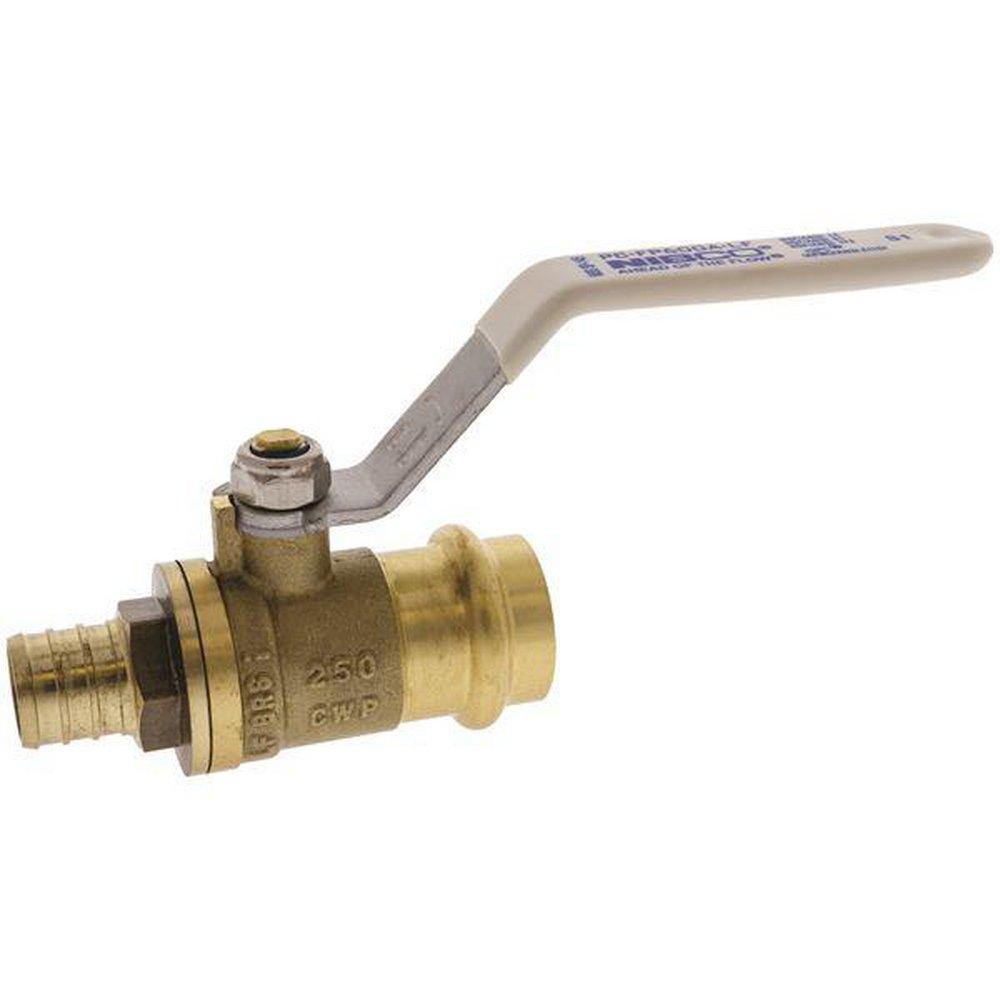

1/2 in. Copper Alloy Full Port Press x F1807 250# Ball Valve

NIBCO

PCPX-FP-600A-LF 1/2 in. Copper Alloy Full Port Press x F1807 250# Ball Valve

  • Fast #
  • Part #NPCPXCFP600ALFD
  • Item #7627462
  • Manufacturer Part #NF99PC6
4.1 out of 5 Customer Rating
Brand image
NIBCO

PCPX-FP-600A-LF 1/2 in. Copper Alloy Full Port Press x F1807 250# Ball Valve

  • Fast #
  • Part #NPCPXCFP600ALFD
  • Item #7627462
  • Manufacturer Part #NF99PC6
4.1 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 40 Pallet: 3600
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Not Available
    Not available at this time

Product Details

Product Description
  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250° F
  • Press x PEX
  • Copper-to-copper connections
  • Full port
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Multiple handle options
  • Press leak-detection feature
Product Information
  • Requires Certification
  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Press
End Connection 2
PEX
End Connections
Press x PEX
Length
2-3/4 in
Pressure Class
250#
Valve Size
1/2 in
Weight
0.32 lb
Characteristics & Features
Clean Bagged
No
Collection
PCPX-FP-600A-LF
Handle Material
Steel
Material
Brass, Copper Alloy
Material Type
DZR
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASME
ASME B16.51
ASTM
ASTM 321, ASTM B-88, ASTM D-2000
BAA Compliant
No
cUPC Certified
No
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
No
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Cold Water, Drinking Water, HVAC, Hot Water
UL Listed
No
UPC
039923404985
