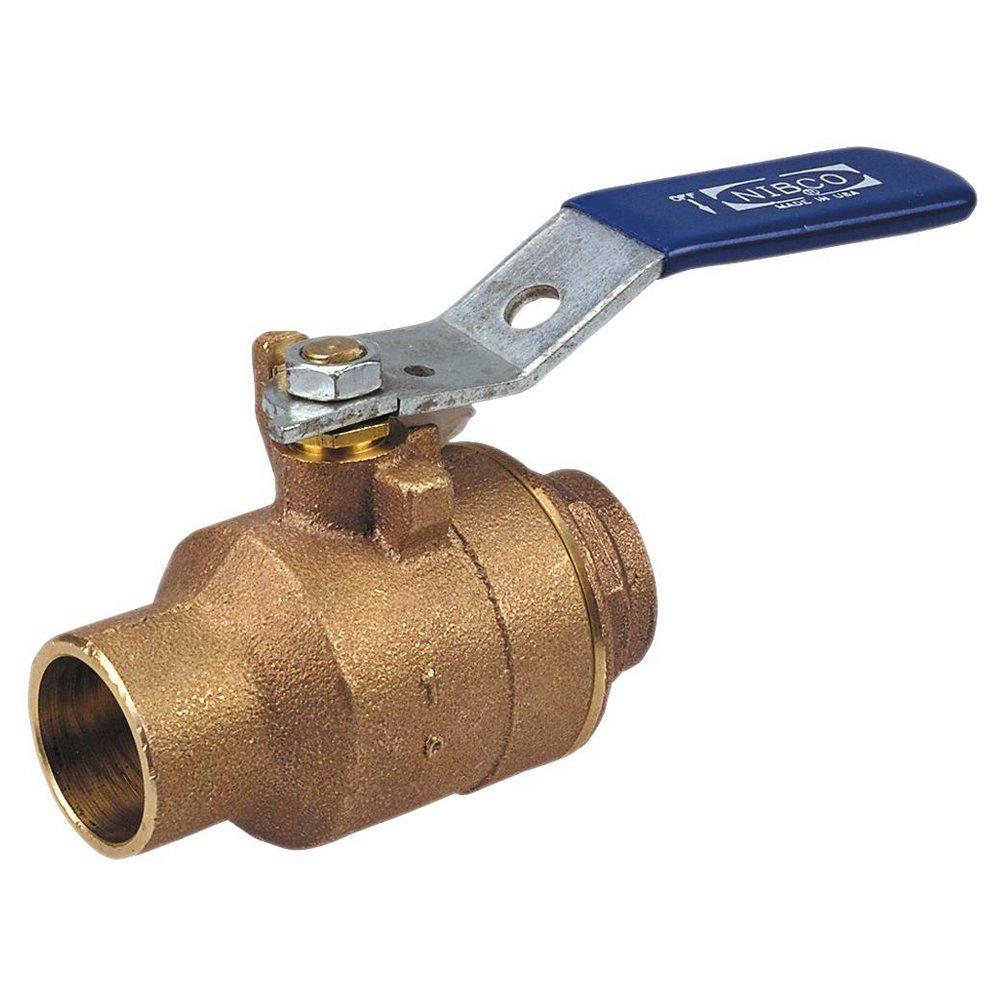

1/2 in. Bronze Full Port Female Solder 600# Ball Valve

NIBCO

S-585-70 1/2 in. Bronze Full Port Female Solder 600# Ball Valve

  • Fast #
  • Part #NS58570D
  • Item #21194
  • Manufacturer Part #NJ83006
5 out of 5 Customer Rating
Brand image
NIBCO

S-585-70 1/2 in. Bronze Full Port Female Solder 600# Ball Valve

  • Fast #
  • Part #NS58570D
  • Item #21194
  • Manufacturer Part #NJ83006
5 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 80 Pallet: 1920
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Available
    Available for immediate shipment
Looking for compatible parts?

Product Details

Product Description
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Solder end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
Product Information
  • Requires Certification
  • Not Compliant, Approved for Non-Potable Water Applications

Dimensions & Measurements
End Connection 1
Female Sweat
End Connection 2
Female Sweat
End Connections
Female Sweat
Height
1-3/10 in
Length
2-14/25 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
1/2 in
Weight
0.60 lb
Width
2-1/2 in
Characteristics & Features
Collection
S-585-70
Handle Material
Zinc Plated Steel
Material
Bronze
Material Type
DZR
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
Ball
Valve Operator
Quarter Turn Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Reinforced PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
400
Minimum Temperature
-20
Pressure - High
600
Temperature Range
Up to 400 Deg F
Warranty & Product Information
ASTM
ASTM B-16, ASTM B-371, ASTM B-584, ASTM B-124, ASTM B-99
BAA Compliant
No
cUPC Certified
Yes
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
MA Approved
No
MSS
MSS SP-110
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Commercial, Residential
UL Listed
No
UPC
039923677525
