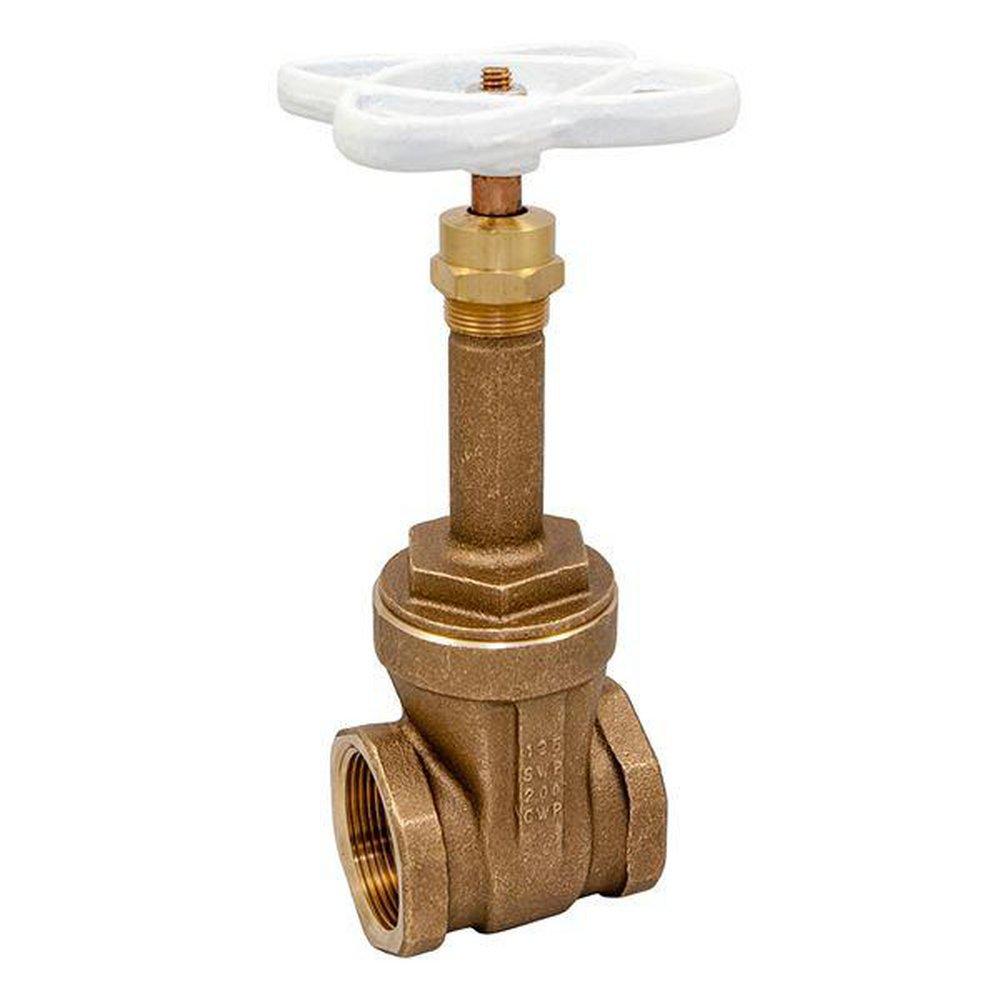

2 in. Silicon Bronze Full Port FNPT Gate Valve

NIBCO

T-111-LF 2 in. Silicon Bronze Full Port FNPT Gate Valve

  • Fast #
  • Part #NT111LFK
  • Item #7230017
  • Manufacturer Part #NL050XD
5 out of 5 Customer Rating
Brand image
NIBCO

T-111-LF 2 in. Silicon Bronze Full Port FNPT Gate Valve

  • Fast #
  • Part #NT111LFK
  • Item #7230017
  • Manufacturer Part #NL050XD
5 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 2 Case: 8 Pallet: 144
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Valve pressure rating 300 psi/20.6 bar non-shock cold working pressure
  • Rising stem
  • Solid wedge
  • Screw-in bonnet
  • Threaded end connections
  • White handle for easy lead-free* identification
  • Lead-free
  • Dezincification resistant
  • Conforms to MSS SP-139
  • NSF/ANSI/CAN-61 and 372
Product Information
  • Requires Certification
  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
10-21/25 in
Length
3-3/50 in
Pressure Class
300#
Valve Size
2 in
Weight
5.28 lb
Characteristics & Features
Collection
T-111-LF
Handle Material
Malleable Iron
Material
Silicon Bronze, Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Silicon Bronze
Valve Body Style
Resilient Seated
Valve Bonnet Type
Screw-in
Valve Disc Material
Silicone Bronze
Valve Operator
Handwheel
Valve Port Opening
Full Port
Valve Seat Material
Bronze
Valve Stem
Rising
Valve Type
Gate Valve
Electrical & Operational Information
Maximum Temperature
300
Pressure - High
300
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASTM
ASTM A47, ASTM B16, ASTM B371, ASTM B584, ASTM B62, ASTM B99
FM Approved
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-139
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Cold Working Pressure, Air, Commercial, Gas, HVAC, Industrial, Steam, Water
UL Listed
No
UPC
039923355171
