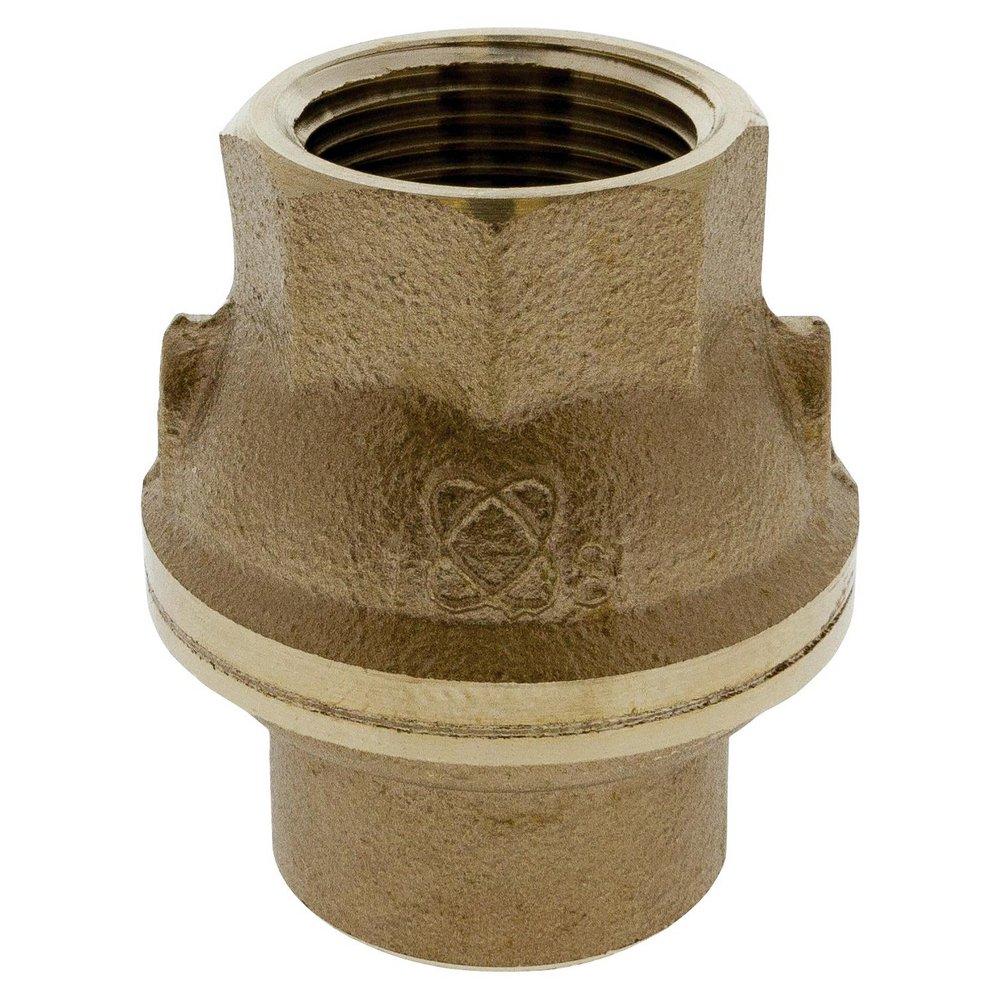

3/4 in. Bronze FNPT Spring Check Valve
NIBCO
T-480-Y-LF 3/4 in. Bronze FNPT Spring Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 100 Pallet: 2400Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
T-480-Y-LF
3/4 in. Bronze FNPT Spring Check Valve
NL932X8
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- In-line lift-type
- Spring actuated
- PTFE resilient seat disc
- NIBCO® double-oval lead-free body marking
- Class 125 threaded end connections
- Lead-free
- NSF/ANSI/CAN-61 and 372
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FIPT
End Connection 2
FIPT
End Connections
FPT
Height
1-59/100 in
Length
2-9/50 in
Pressure Class
250#
Valve Size
3/4 in
Weight
0.48 lb
Width
1-43/50 in
Characteristics & Features
Collection
T-480-Y-LF
Color Finish Name
Bronze
Installation Type
Horizontal Mount, Vertical Mount
Material
Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Silicon Bronze
Valve Body Style
Inline
Valve Bonnet Type
Screw-in
Valve Disc Material
PTFE
Valve Operator
Spring Actuated
Valve Seat Material
PTFE
Valve Type
Spring Check Valve
Electrical & Operational Information
Maximum Temperature
300
Minimum Temperature
-20
Pressure - High
250
Warranty & Product Information
ANSI
NSF 372, NSF 61, NSF 61-8, NSF 61-8 Annex F, NSF 61-8 Annex G
ASTM
ASTM A-582, ASTM B-584
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-139
NSF
NSF 372, NSF 61, NSF 61-8, NSF 61-8 Annex F, NSF 61-8 Annex G
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Commercial, Residential
UL Listed
No
UPC
039923407580
