2 in. Copper Alloy Full Port FNPT 600# Ball Valve

NIBCO

T-FP-600A-LF 2 in. Copper Alloy Full Port FNPT 600# Ball Valve

  • Fast #
  • Part #NTFP600ALFK
  • Item #4483205
  • Manufacturer Part #NL998XD
5 out of 5 Customer Rating
Brand image

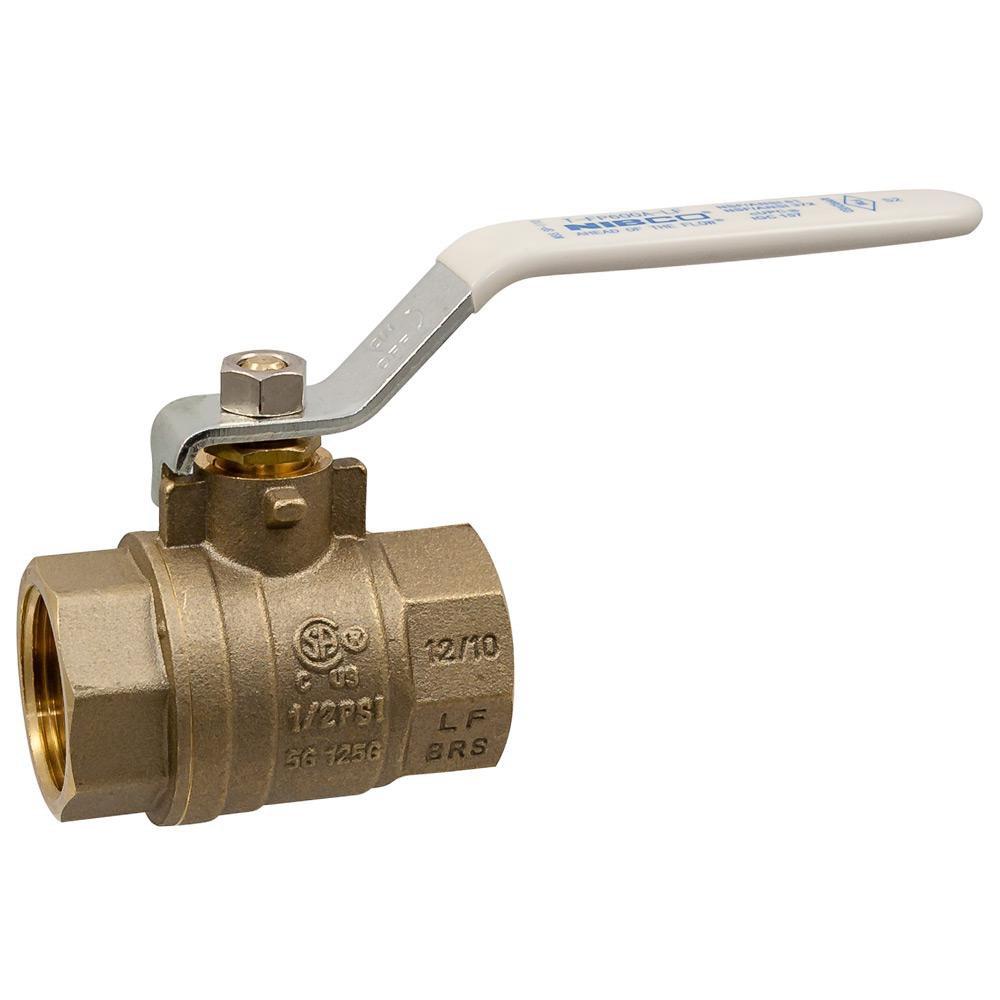

NIBCO Forged Brass Full Port NPT 600# Ball Valve
NIBCO Forged Brass Full Port NPT 600# Ball Valve
NIBCO

T-FP-600A-LF 2 in. Copper Alloy Full Port FNPT 600# Ball Valve

  • Fast #
  • Part #NTFP600ALFK
  • Item #4483205
  • Manufacturer Part #NL998XD
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 2 Pallet: 420
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Dezincification resistant
  • Lead-free
  • Blowout-proof stem
  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
  • Full port
  • Threaded end connections
  • Two-piece body
  • PTFE seat
  • IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
  • CSA ANSI Z21.15 / CSA 9.1 (1/4" to 4")
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Height
5-41/100 in
Length
4-9/50 in
Pressure Class
600#
Valve Size
2 in
Weight
3.37 lb
Characteristics & Features
Clean Bagged
No
Collection
T-FP-600A-LF
Handle Material
Steel
Material
Forged Brass, Plastic
Material Type
PTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Quarter Turn Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
350, 600
Temperature Range
Up to 200 Deg F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z21.15
ASME
ASME B16.33, ASME B16.44
CSA Certified
CSA 9.1
FM Approved
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Global
Recommended Valve Application
Potable Water, Gas, Hot and Cold Water Systems, Oil
UL Listed
UL 125/UL 1477/UL 258/UL 842
UPC
039923347428
