30-120 cfm Energy Recovery Ventilator

Panasonic

Intelli-Balance® Elite Plus+ 30-120 cfm Energy Recovery Ventilator

  • Fast #
  • Part #PANFV12ESC1
  • Item #12385226
  • Manufacturer Part #FV-12ESC1
5 out of 5 Customer Rating
Brand image
30-120 cfm Energy Recovery Ventilator
30-120 cfm Energy Recovery Ventilator
Panasonic

Intelli-Balance® Elite Plus+ 30-120 cfm Energy Recovery Ventilator

  • Fast #
  • Part #PANFV12ESC1
  • Item #12385226
  • Manufacturer Part #FV-12ESC1
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Available
    Available for immediate shipment
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • The Intelli-Balance® Elite Plus+ Energy Recovery Ventilator (ERV) series is ideal for multifamily units and new home build constructions. They are customizable, delivering high energy recovery performance achieving up to 90% SRE, designed to meet Green Building Code standards. These unique and cost-effective ERVs have been engineered for total versatility and installation flexibility in any climate zone. The occupant-controlled boost function can move the ERV fan speed to maximum CFM when activated.

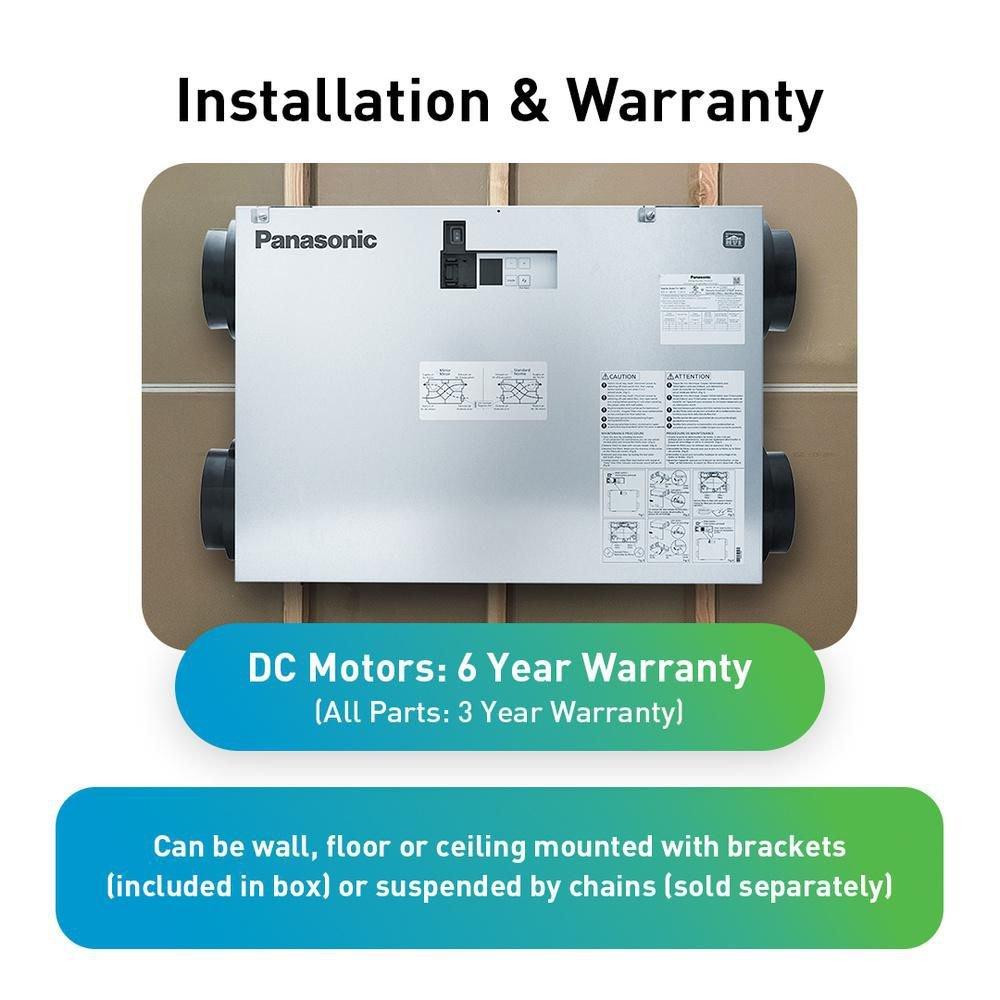

  • Can be adjusted for mirror installation and are equipped with a standard power cord and a hardwire adaptor kit

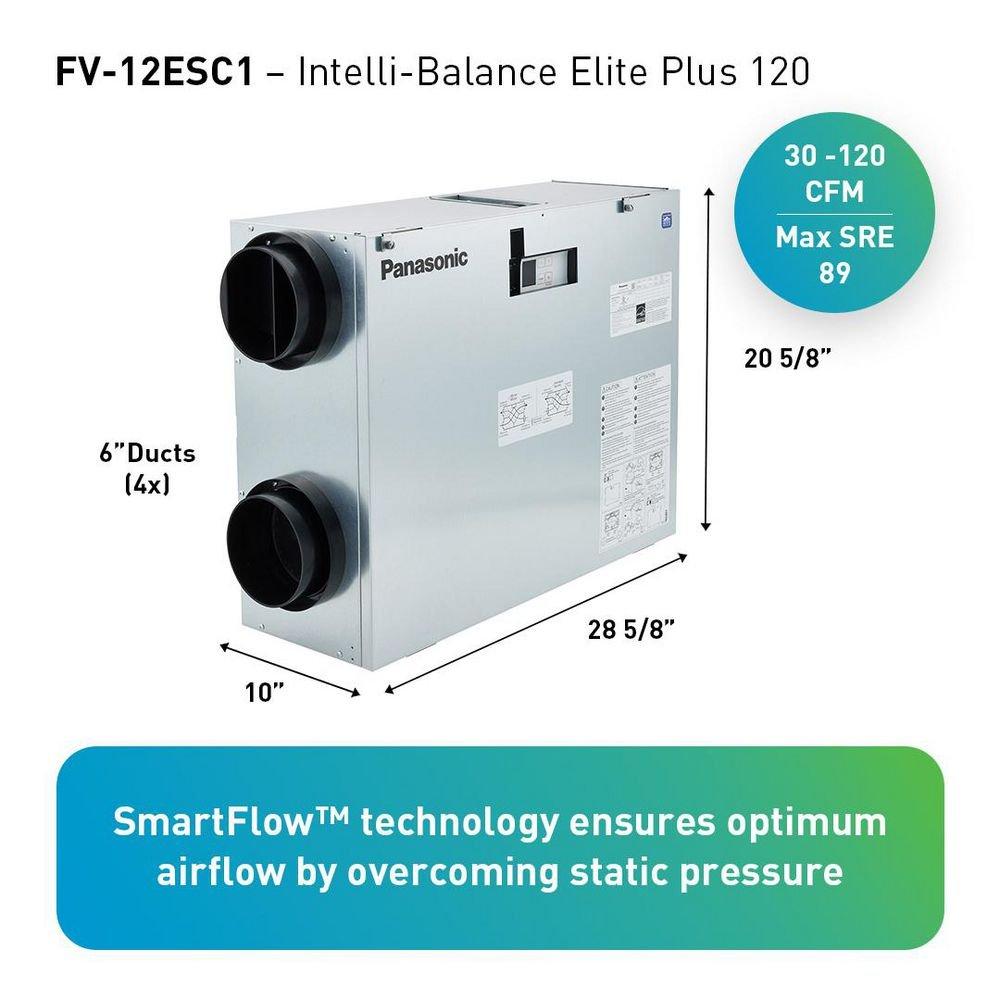

  • Two (2) powerful ECM motors with Smart Flow™ technology ensure optimum CFM output by overcoming static pressure to effectively remove contaminated air and replace with fresh air

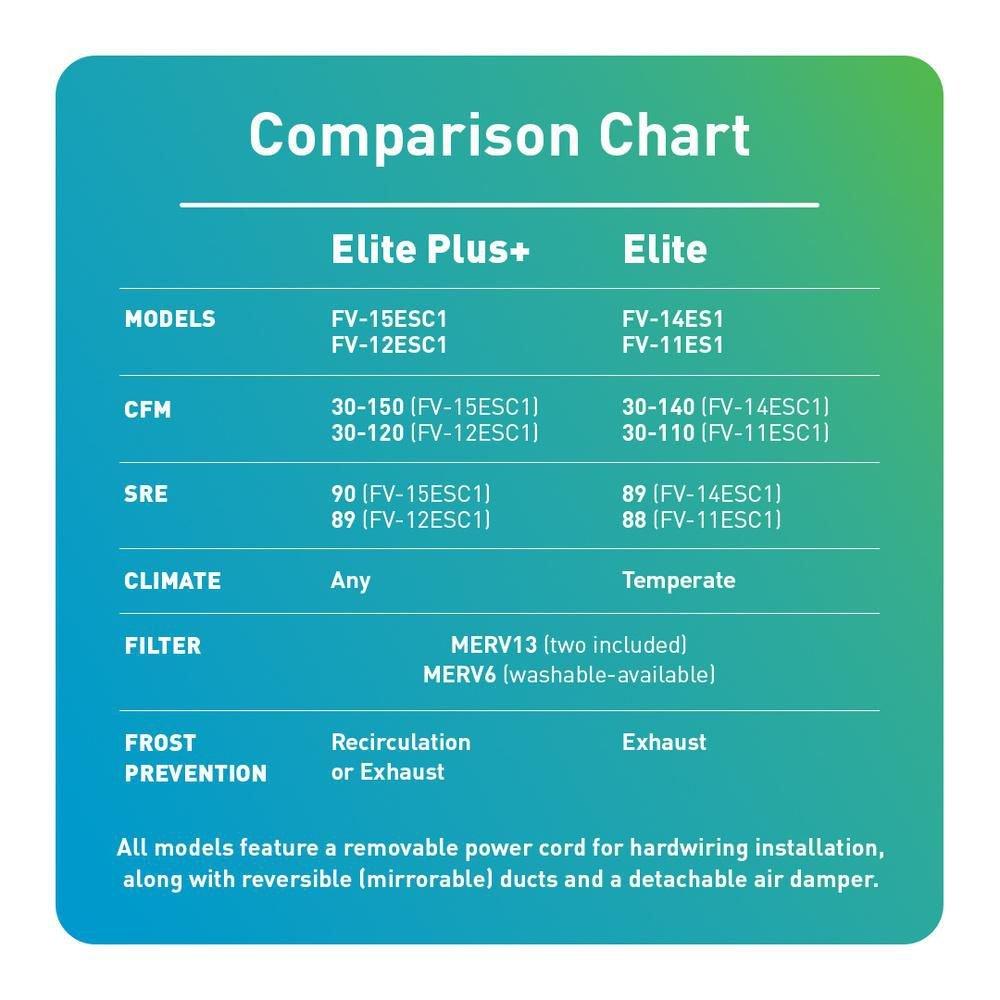

  • Multi-speed selector (30 to 120 CFM, 30 to 150 CFM) provides customizable airflow to create balanced, positive or negative pressure within the home
  • Core material permeated with anti-mold treatment. Two (2) MERV 13 filters included, optional MERV 6 (washable) and MERV 13 replacements available

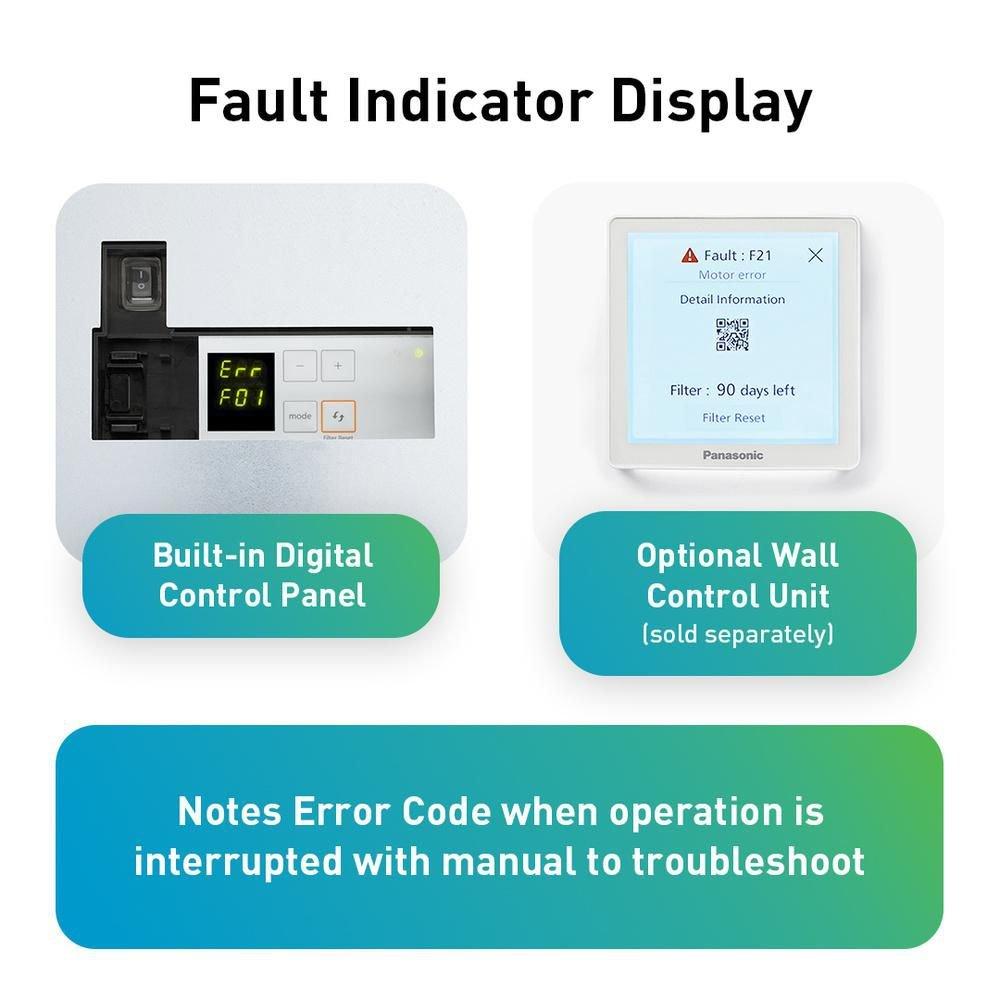

  • Optional Accessories: Touch screen LED wall control allows for CFM selection, occupant controllable boost function, and status/error updates (FID). Wi-Fi module works with phone app. WhisperControl Low Voltage Timer allows for instant boost at the touch of a button
  • Requires Certification

Documents

SPECIFICATION

Specifications

CFM:
120
Collection:
Intelli-Balance® Elite Plus+
Depth:
28-5/8
Height:
10
Type:
PANFV12ESC1
UPC:
885170448971
Width:
22-5/8
