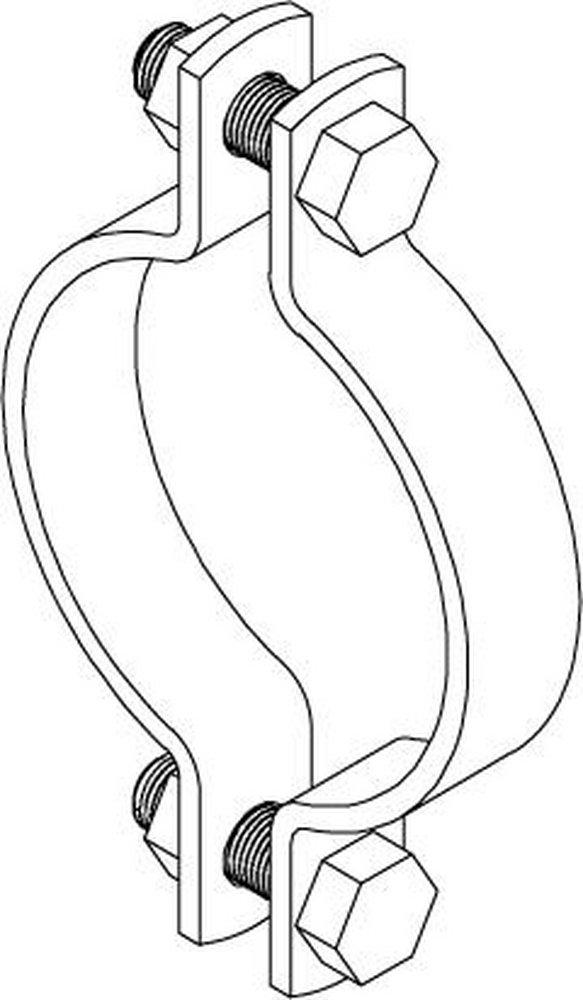

1-1/2 in. Plain Carbon Steel Standard Pipe Clamp

PHD Manufacturing

Fig 520 1-1/2 in. Plain Carbon Steel Standard Pipe Clamp

  • Fast #
  • Part #P520PLJ
  • Item #1425769
  • Manufacturer Part #520 0150PL
4.1 out of 5 Customer Rating
Brand image
PHD Manufacturing

Fig 520 1-1/2 in. Plain Carbon Steel Standard Pipe Clamp

  • Fast #
  • Part #P520PLJ
  • Item #1425769
  • Manufacturer Part #520 0150PL
4.1 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 25
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • Designed to be used in the suspension of non-insulated pipe lines
  • Normally used in conjunction with Fig. 35 weldless eye nut, Fig. 50 eye rod or Fig. 55 welded eye rod to allow flexibility at the rod attachment
  • Requires Certification

Documents

Dimensions & Measurements
End Connection 1
Plain End
End Connections
Plain End
Fits Pipe Size
1-1/2 in
Weight
0.45 lb
Characteristics & Features
Brand Model Compatibility
Figure 35, Figure 50, Figure 55
Coating
Plain
Collection
Fig 520
Material
Carbon Steel
Work Load Limit
715 lb
Electrical & Operational Information
Maximum Temperature
750
Warranty & Product Information
ANSI
ANSI SP-58, ANSI SP-69
Application
Pipelines
FM Approved
No
IAPMO Listed
No
MSS
MSS SP-58, MSS SP-69
Product Type
Pipe Clamp
UL Listed
No
