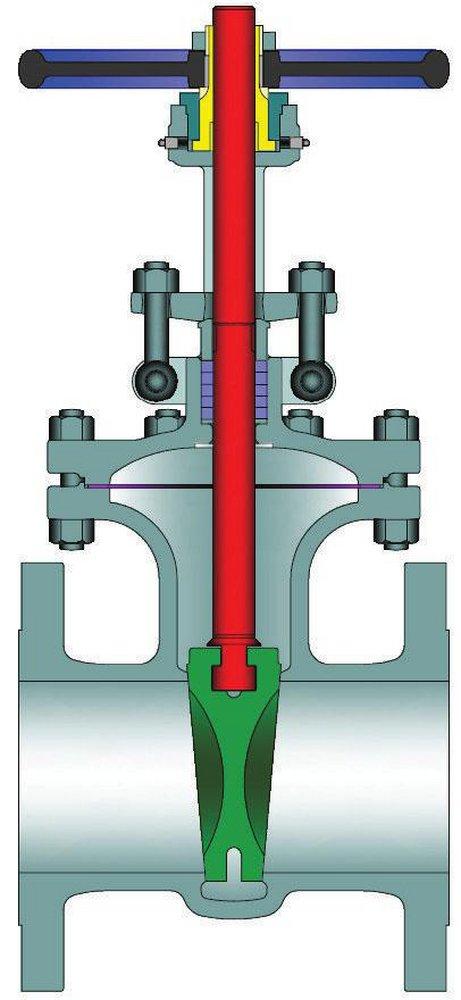

4 in. Cast Stainless Steel Standard Port Flanged Gate Valve
Figure 2456 4 in. Cast Stainless Steel Standard Port Flanged Gate Valve
Frequently Purchased Together
Product Details
- Outside screw
- Flexible wedge
- Bolted flanged yoke-bonnet
- Each valve is shell, seat and backseat pressure tested
- Double ACME threads for faster operation
- Body and bonnet joint accurately machined
- Non-rotating stem with precision ACME threads and burnished finish
- Seat face: Ground and lapped to a smooth finish
- Gland has two-piece construction for easy alignment
- Yoke bushing can be lubricated to minimize friction and prolong life of the stem
Specifications
- API:
- API 600
- ASME:
- ASME B16.34, ASME B16.5, ASME Class 150
- ASTM:
- ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-276 Grade 316, ASTM A-351 Grade CF8M
- Application:
- Cryogenic
- Collection:
- Figure 2456
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Length (in):
- 9 in
- Handle Material:
- Malleable Iron
- Length:
- 9 in
- Material:
- Stainless Steel, Malleable Iron
- Material Type:
- 316, CF8M
- NSF Certified:
- No
- Pressure Class:
- 150#
- Recommended Valve Application:
- Oxygen
- UL Listed:
- No
- Valve Body Material:
- 316 Stainless Steel
- Valve Body Style:
- Flanged
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Hand Wheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 4 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 110 lb
