1/2 in. Freezeless Wall Hydrant
PRIER Products

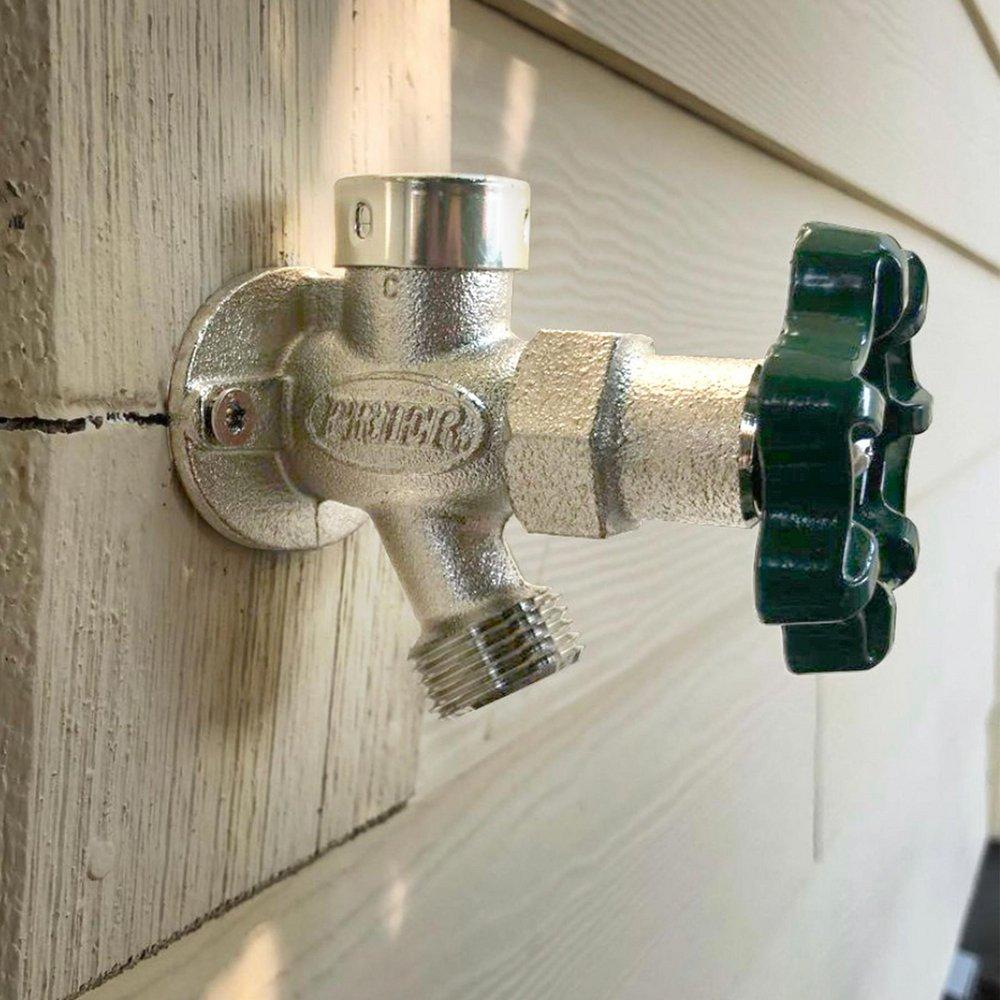

C-144 Series 1/2 in. Freezeless Wall Hydrant
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 6Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PRIER Products
C-144 Series
1/2 in. Freezeless Wall Hydrant
C-144XXC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Anti-Siphon vacuum breaker and Back Flow check valve meet ASSE 1019 approval
- Satin Nickel plated for long life
- Large Cast Brass flange
- Solid Brass body, Valve Stem Cap, and Stem
- 5 full threads for hose connection
- Enclosed screw holes for secure installation
- Stainless steel seat washer screw and handle screw
- Powder coated metal handle
- Easy Conversion to Loose Key Operation with brass female stem cap
Dimensions & Measurements
End Connection 1
Barbed
End Connection 2
Barbed
End Connections
Barbed
Fitting Size 1
1/2 in
Fitting Size 2
1/2 in
Fitting Sizes
1/2 in
Flow Rate
8 gpm
Height
3-1/2 in
Length
1-1/2 in
Pressure Class
125 psi
Pressure - Maximum
125 psi
Valve Size
1/2 in
Width
3 in
Characteristics & Features
Collection
C-144 Series
Color Finish Name
Satin Nickel
Handle Material
Metal
Handle Type
Round
Installation Type
Wall Mount
Material
Brass
Sillcock Type
Anti-siphon, Frost-proof
Valve Body Material
Brass
Valve Bonnet Type
Threaded
Valve Operator
Wheel Handle
Valve Port Opening
Standard Port
Valve Seat Material
EPDM
Valve Stem
Rising
Electrical & Operational Information
Maximum Temperature
140
Warranty & Product Information
ASME
ASME A112.18.1-2018
ASSE Standards
ASSE 1019
BAA Compliant
Yes
CSA Certified
CSA B125.1-18
IAPMO Listed
Yes
ISO
No
NSF
No
NSF Certified
No
Recommended Valve Application
Water
UL Listed
No
UPC
670210321662
