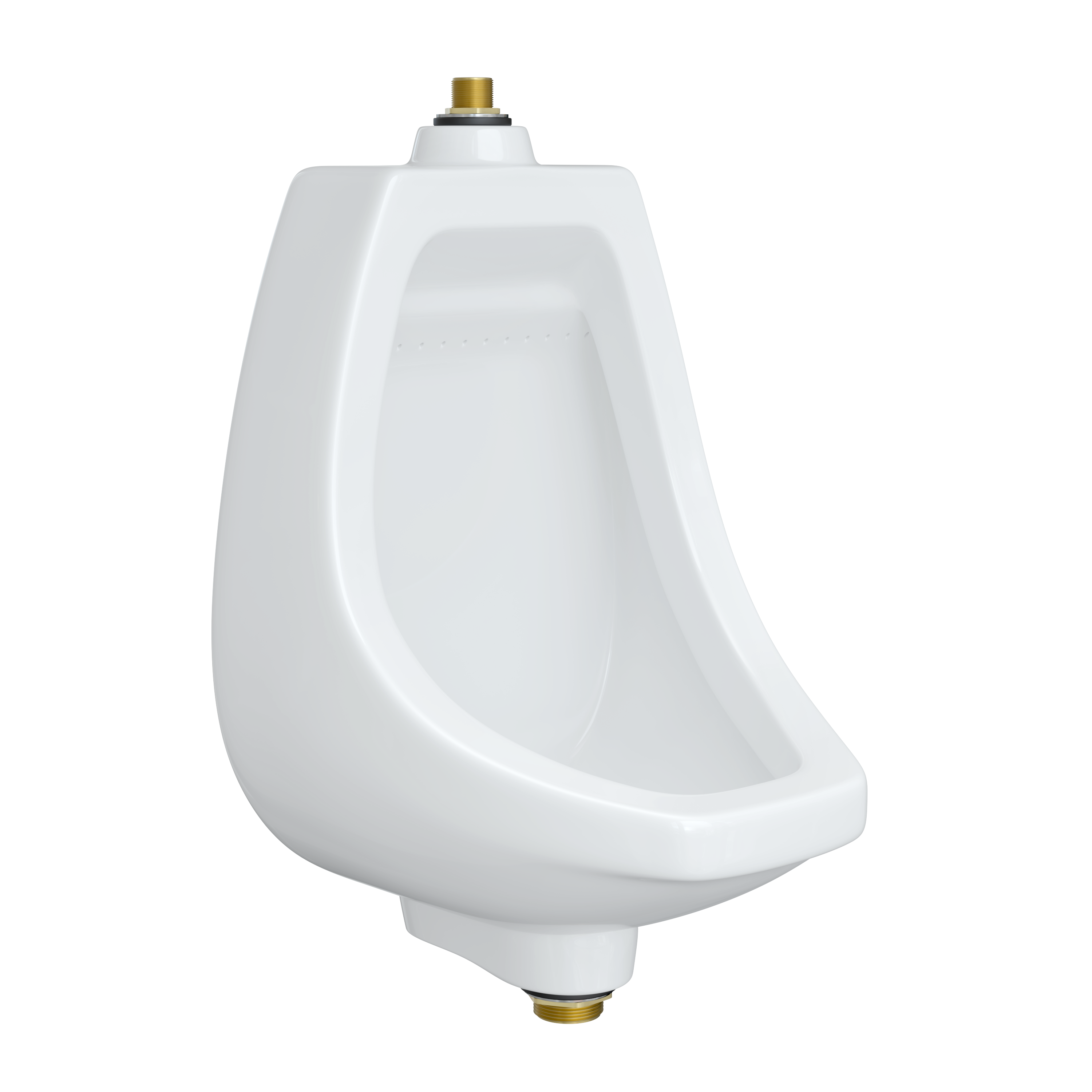

Quarter Stall Washout Urinal with 3/4 in. Top Spud in White
PROFLO®
1800 Series Quarter Stall Washout Urinal with 3/4 in. Top Spud in White
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 18Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
1800 Series
Quarter Stall Washout Urinal with 3/4 in. Top Spud in White
PF1805PTWH
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description

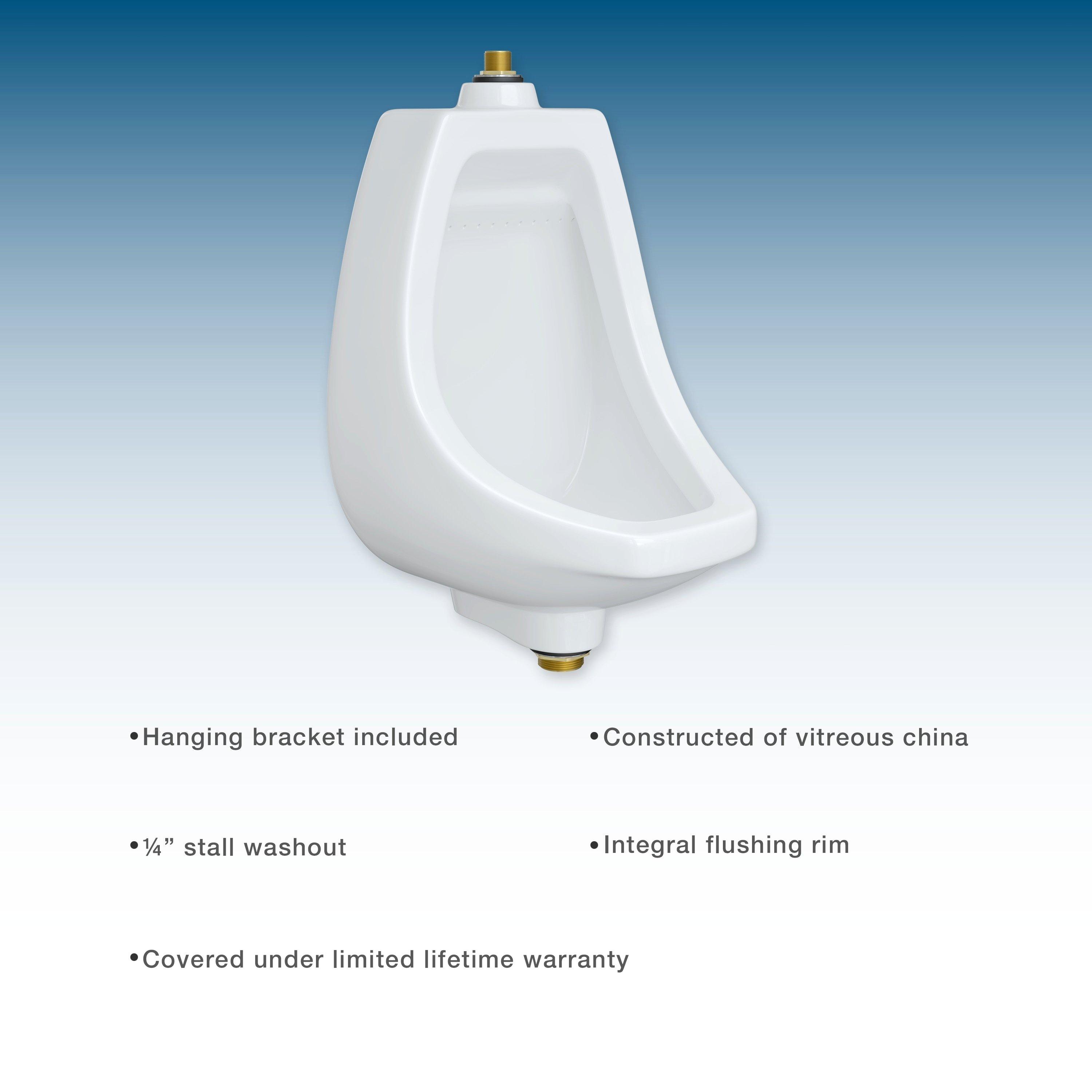

- Quarter stall wash out
- 3/4'' top inlet spud
- Bottom outlet
- Hanging bracket included
- 1-1/2'' outlet for exposed trap connection
- Flush valve not included
- Check your local codes to determine if 0.5–1.0 gpf urinals are permitted in your area
- WaterSense labeled when used with a 0.125 or 0.5 gpf WaterSense labeled flushometer
- ADA compliant when installed according to ADA guidelines
Product Information
-
ADA Compliant
-
Green

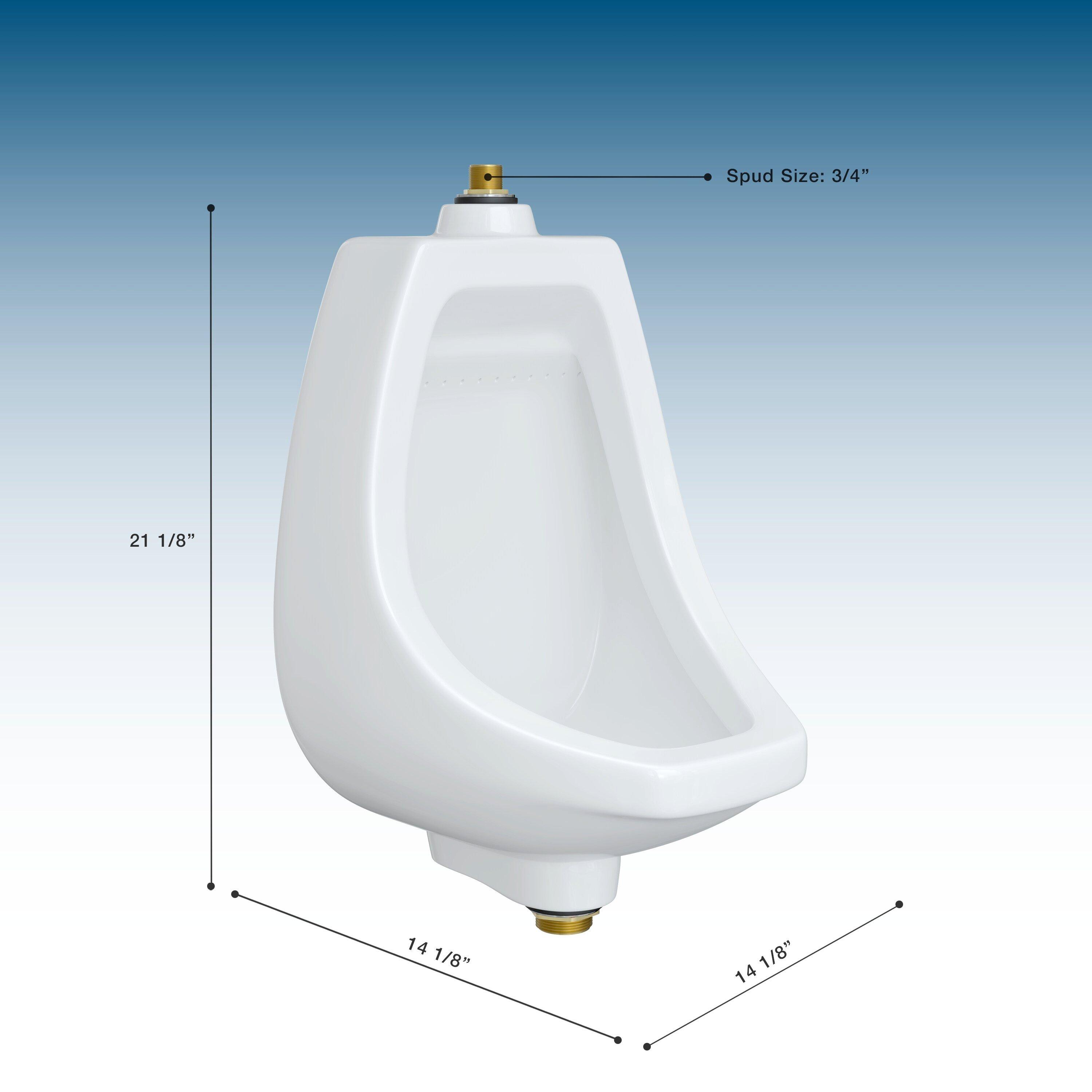

Dimensions & Measurements
Depth
14-13/100 in
End Connection 1
Threaded
End Connections
Threaded
Flow Rate
0.125 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
21-1/8 in
Inlet Spud Size
3/4 in
Outlet Spud Size
1-1/2 in
Width
14-1/8 in
Characteristics & Features
Collection
1800 Series
Color Finish Category
Whites
Color Finish Name
White
Flush Type
Washdown
Inlet Spud Location
Top
Material
Vitreous China
Outlet Spud Location
Bottom
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Urinal Installation
Wall Mount
Urinal Type
Quarter Stall
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2
ASME
ASME A112.19.2-2018
BAA Compliant
No
CARB OTC LEED Compliant
No
CEC Compliant
For Sale in CA
CSA Certified
CSA B45.1-18
GSA Approved
No
IAPMO Listed
Yes
NSF Certified
No
UL Listed
No
WaterSense Labeled
Yes
UPC
781889366042
