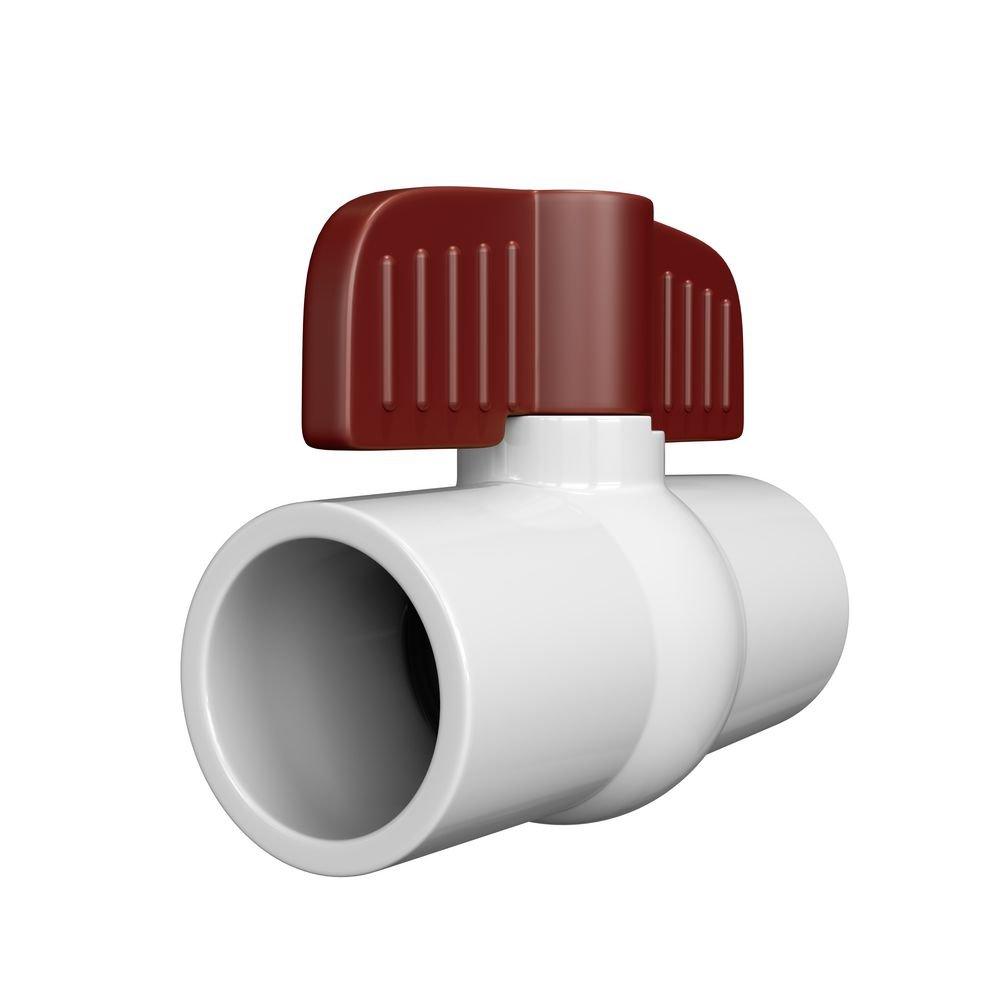

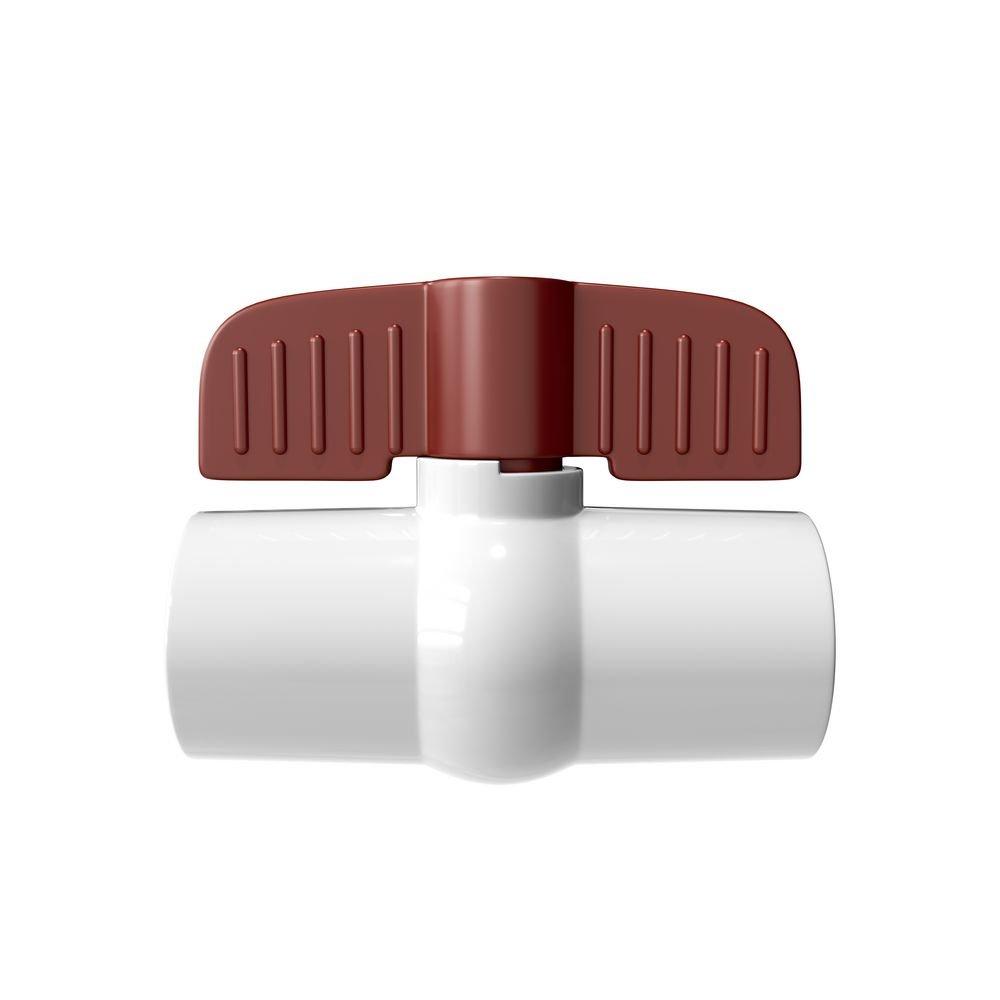

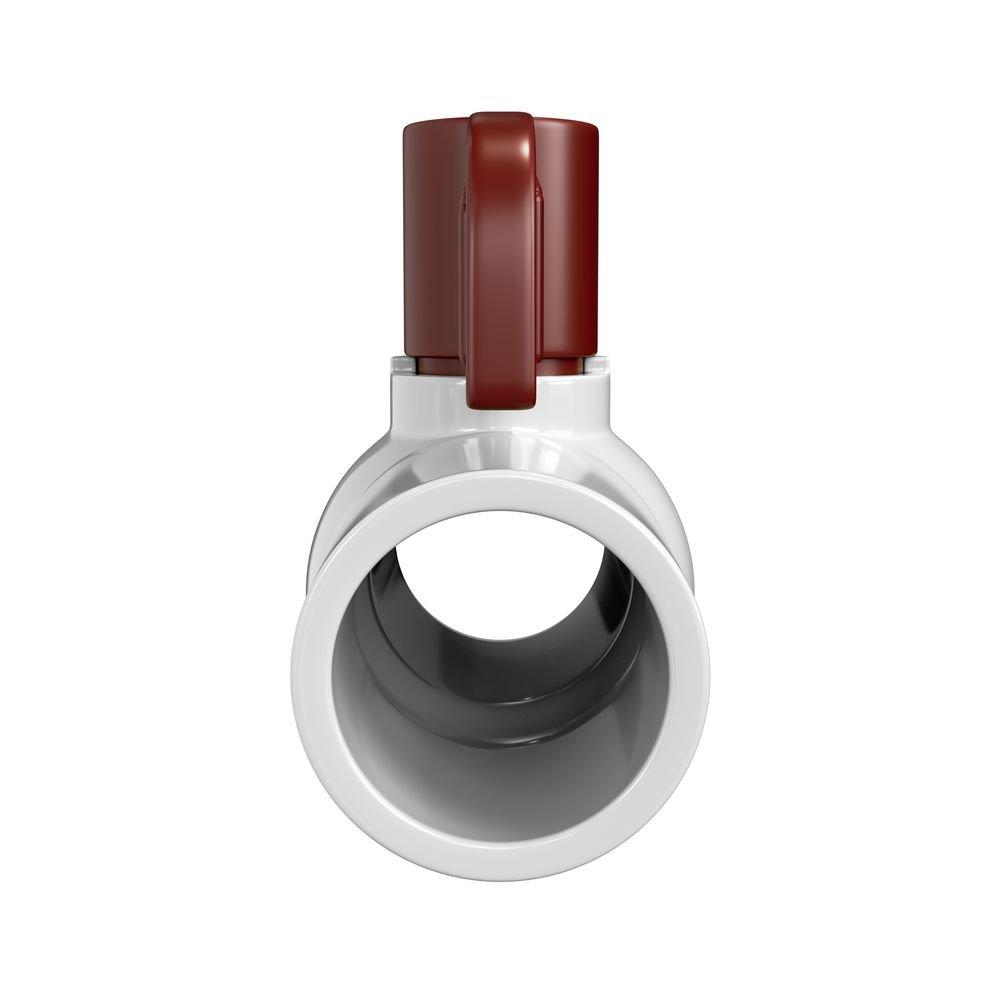

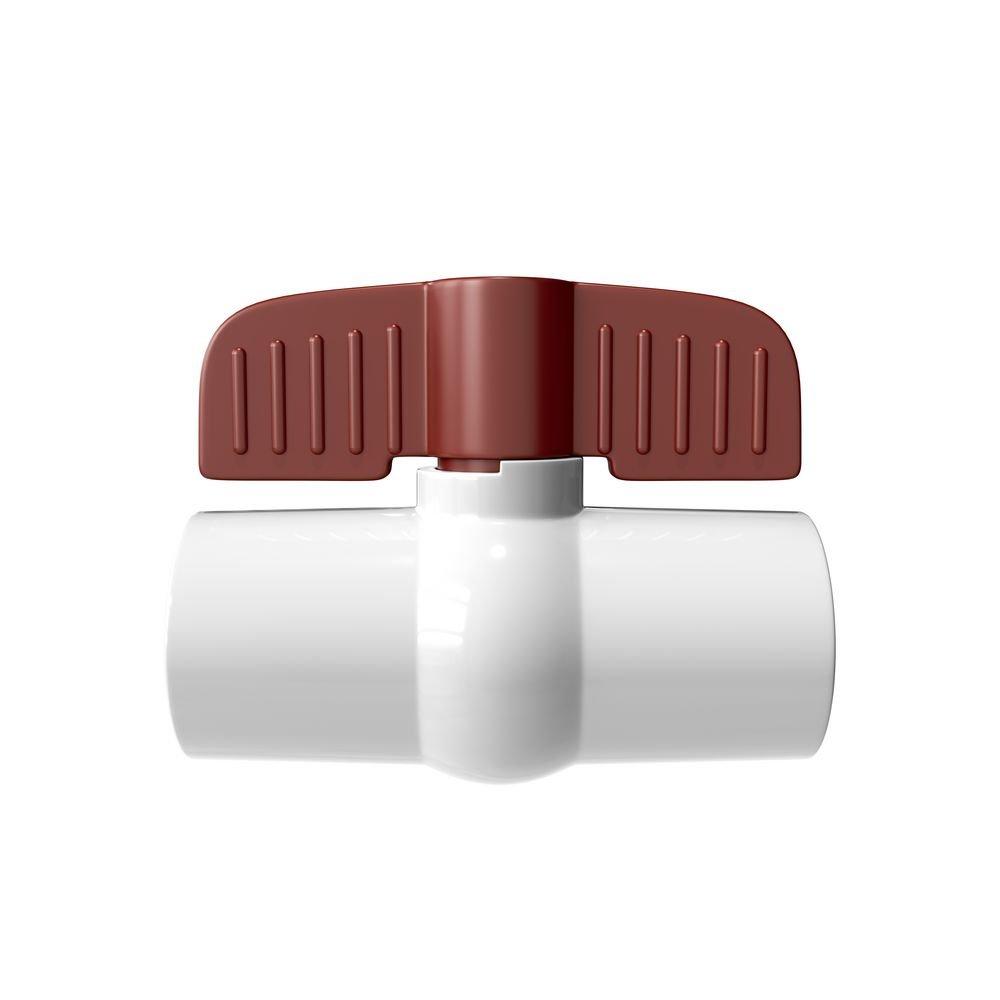

3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
PROFLO®
PFCBVN Series 3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 60Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
PFCBVN Series
3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
PFCBVNF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3/4 in. cpvc ball valve
- End Connections: Solvent Weld
- Valve Length: 3.12 in.
- Maximum Temperature: 194 degrees (F)
- Valve Pressure Class: 100#
- Recommended Application: Hot & cold water
- NSF 61 Annex G
- ANSI 61 Annex G
- Not for use with compressed air or gases
Documents
Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
Socket Weld
End Connections
Socket Weld x Socket Weld
Height
2-12/25 in
Length
3-27/100 in
Pressure Class
100#
Pressure - Maximum
100 psi
Valve Size
3/4 in
Characteristics & Features
Clean Bagged
No
Collection
PFCBVN Series
Handle Material
ABS
Material
Plastic
Material Type
CPVC
Proposition 65
WARNING: Cancer WWW.p65warnings.ca.gov
Valve Operator
T-Handle
Valve Port Opening
Standard Port
Valve Seat Material
PTFE
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
180
Warranty & Product Information
ANSI
ANSI 14, ANSI Standard 61, ANSI 372
CSA Certified
CSA 61
FM Approved
No
IAPMO Listed
No
MA Approved
Yes
NSF
NSF 14, NSF Standard 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Cold Water, Hot Water
UL Listed
No
UPC
781889389874
