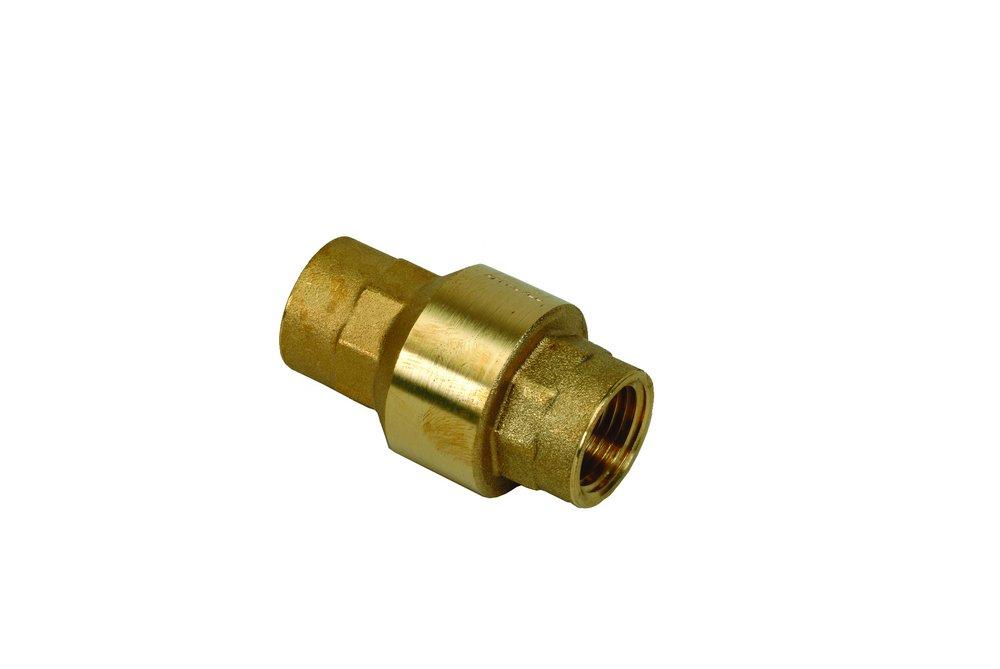

1/2 in. Brass Female Threaded Spring Check Valve
PROFLO®
PFSCV Series 1/2 in. Brass Female Threaded Spring Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 100 Pallet: 5300
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
PFSCV Series
1/2 in. Brass Female Threaded Spring Check Valve
FSCVD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- High capacity
- Soft seat for bubble tight shutoff, spring loaded for fast seating action
- Low Cracking Pressure: 1/2 psi
- Perfectly seals between 10°F - 210°F
- Stainless steel springs with neoprene O-ring seal
- Suitable for water, oils and general purpose applications
- Can be installed in positions including the vertical down direction
- End Connection: Female Threaded
- Max Temperature: 210°F
- Not for use at or below ground level
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- ANSI:
- ANSI 61
- Collection:
- PFSCV Series
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- Height:
- 1-3/8 in
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 2-8/25 in
- Material:
- Brass, Bronze
- Maximum Temperature:
- 210
- Minimum Temperature:
- 10
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 400 psi
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Recommended Valve Application:
- Oil, Water
- UL Listed:
- No
- UPC:
- 781889005613
- Valve Body Material:
- Brass
- Valve Body Style:
- Spring
- Valve Disc Material:
- Brass
- Valve Seat Material:
- NBR
- Valve Size:
- 1/2 in
- Valve Type:
- Spring Check Valve
- Weight:
- 0.32 lb
- Width:
- 2-5/16 in
