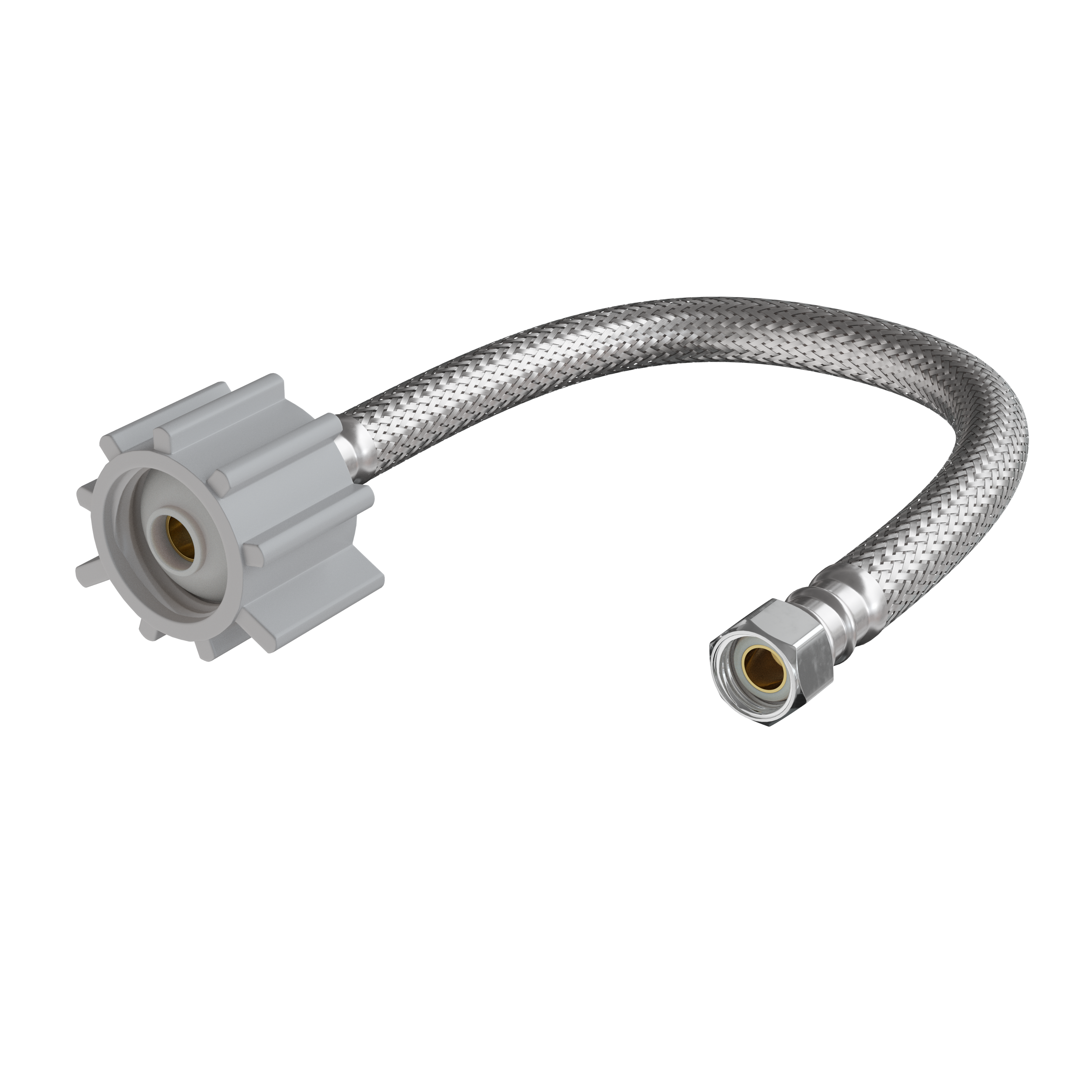

3/8 in. Compression x 7/8 in. x 12 in. Braided Stainless Steel Toilet Flexible Water Connector
PROFLO®
PFX146 3/8 in. Compression x 7/8 in. x 12 in. Braided Stainless Steel Toilet Flexible Water Connector
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 100 Pallet: 2000Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
PFX146
3/8 in. Compression x 7/8 in. x 12 in. Braided Stainless Steel Toilet Flexible Water Connector
146472
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Double reinforced construction consists of a high strength stainless steel braid and reinforced PVC inner core
- Low lead brass alloy barb
- Nickel-plated brass alloy metal nut
- Nickel-plated brass alloy ferrule
- Santoprene rubber washer
- Lead-free
- Working temperature: 40°F to 140°F
- Working pressure: Up to 125 psi maximum
- Internal hose: Reinforced PVC
- Outer wire braid: 304 stainless steel (not applicable to PVC connector - PFX146172)
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Fitting Size 1
3/8 in
Fitting Size 2
7/8 in
Fitting Sizes
3/8 in x 7/8 in
Length
12 in
Pressure - Maximum
125 psi
Characteristics & Features
Collection
PFX146
Outer Hose Material
Braided Stainless
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Water Supply Connector Type
Toilet
Electrical & Operational Information
Maximum Temperature
140
Warranty & Product Information
ANSI
ANSI 61-2020, ANSI 372-2016
ASME
ASME A112.18.6 2009, ASME A112.18.6-2017
CSA Certified
CSA B125.6 2009, CSA B125.6-17, CSA 61-2020
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61-2020, NSF 372-2016
NSF Certified
Yes
UPC
781889110188
