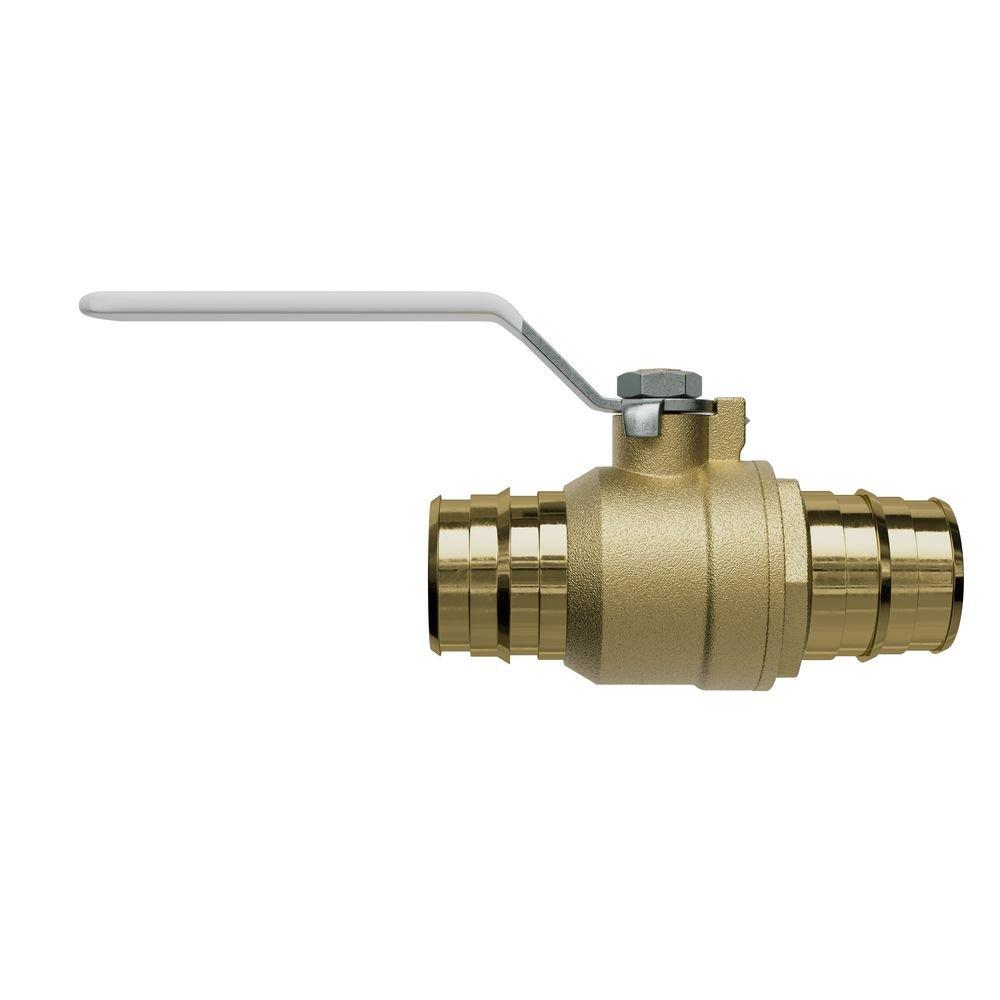

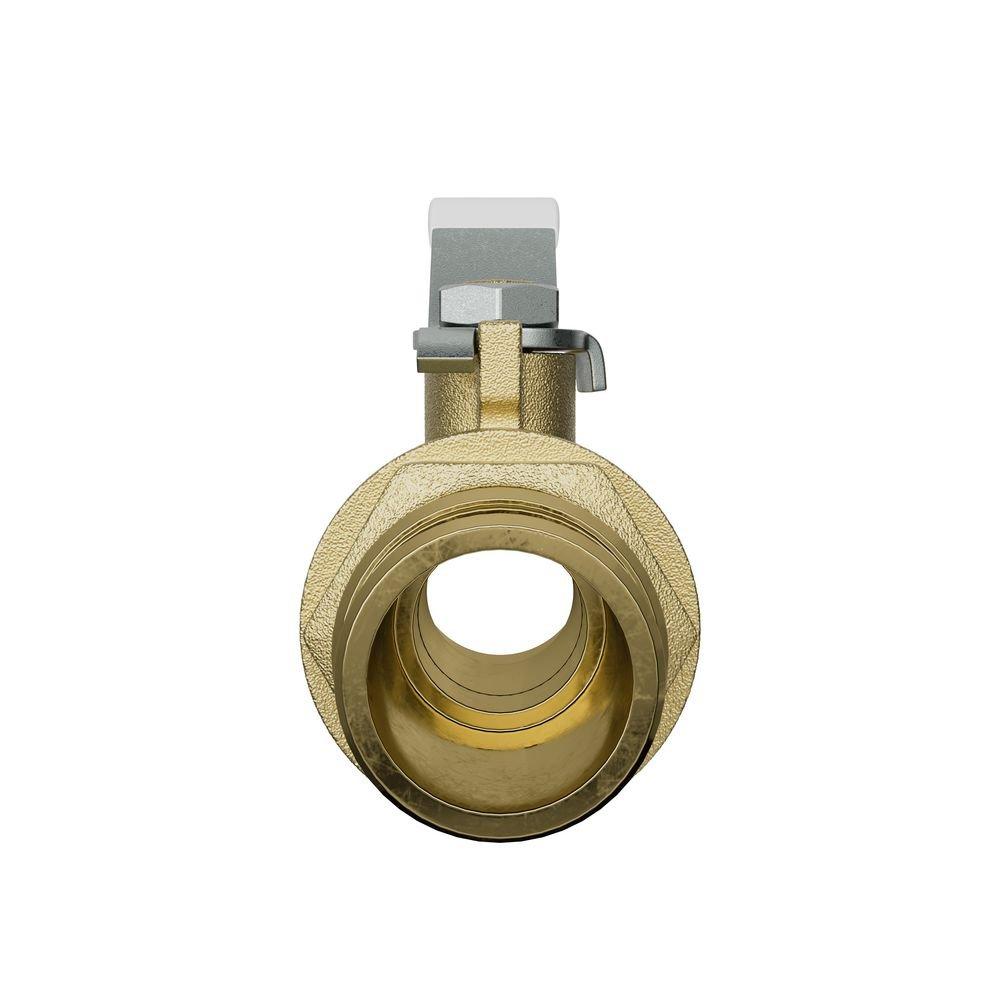

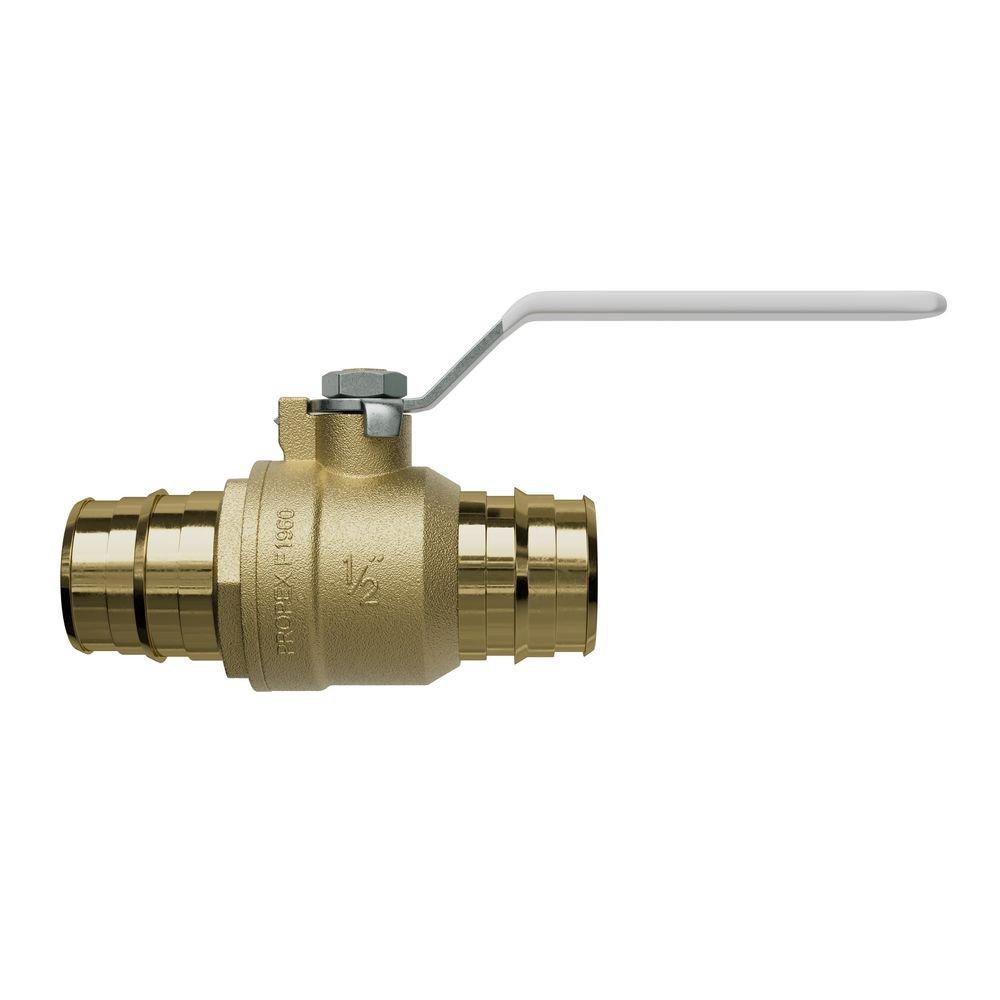

1/2 in. F1960 Cold Expansion PEX Brass Ball Valve
PROFLO®
PFX472 Series 1/2 in. F1960 Cold Expansion PEX Brass Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 100 Pallet: 3600Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
PFX472 Series
1/2 in. F1960 Cold Expansion PEX Brass Ball Valve
PFX472D
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1/2 in. brass ball valve
- End Connections: PEX
- Valve Length: 2.952 in.
- Maximum Temperature: 212 degrees (F)
- Valve Pressure Class: 400#
- Recommended Application: Water, oil, gas
- NSF 61;NSF 372
- ANSI 372
- 2 piece brass ball valve
- Body Material: Dezincification-Resistant Brass (C46500)
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
PEX
End Connection 2
PEX
End Connections
PEX x PEX
Length
2-3/5 in
Pressure Class
400#
Valve Size
1/2 in
Characteristics & Features
Clean Bagged
No
Collection
PFX472 Series
Handle Material
Steel
Material
Brass
Material Type
C46400
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Valve Body Material
Brass
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
212
Pressure - High
400
Temperature Range
-4 to 212 Deg F
Warranty & Product Information
ANSI
ANSI 14, ANSI 372, ANSI 61, ANSI Z1157-2014e1, ANSI 14-2010a, ANSI 372-2016
ASTM
ASTM F-1960
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61, NSF 372, NSF 14, NSF 14-2010a, NSF 372-2016
NSF Certified
Yes
Recommended Valve Application
Gas, Oil, Potable Water
UL Listed
No
UPC
781889310809
