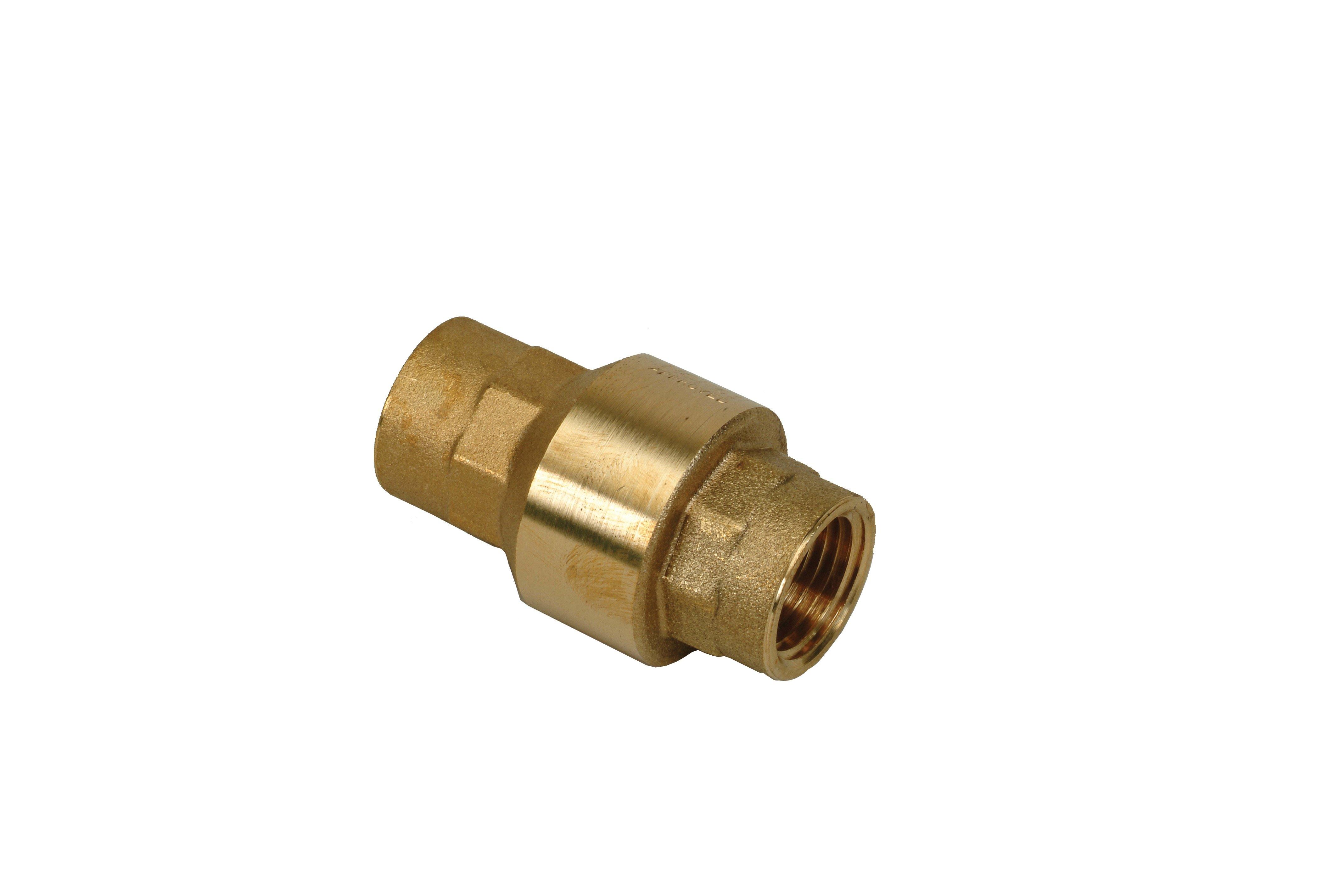

Spring Check Valve 3/4 in. FNPT
PROFLO®
Spring Check Valve 3/4 in. FNPT
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 75 Pallet: 1600Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
Spring Check Valve 3/4 in. FNPT
PFXSCVF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Soft seat for bubble tight shutoff, spring loaded for fast seating action
- Low cracking pressure 1/2 PSI
- Flow profile designed to minimize head loss easy design
- High technology materials to ensure best resistance in any condition
- Patented disc guide
- Stainless steel springs with neoprene o-ring seal
- Can be installed in all positions including the vertical down direction
- Not for use at or below ground level
- Low Lead Compliant
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
1-5/8 in
Length
2-14/25 in
Pressure Class
400#
Valve Size
3/4 in
Weight
0.49 lb
Width
2-9/16 in
Characteristics & Features
Installation Type
Horizontal Mount, Vertical Mount
Material
Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Brass
Valve Disc Material
Plastic
Valve Seat Material
NBR
Electrical & Operational Information
Maximum Temperature
210
Minimum Temperature
10
Warranty & Product Information
ANSI
ANSI B1.20.1
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61
NSF Certified
Yes
UPC
781889242339
