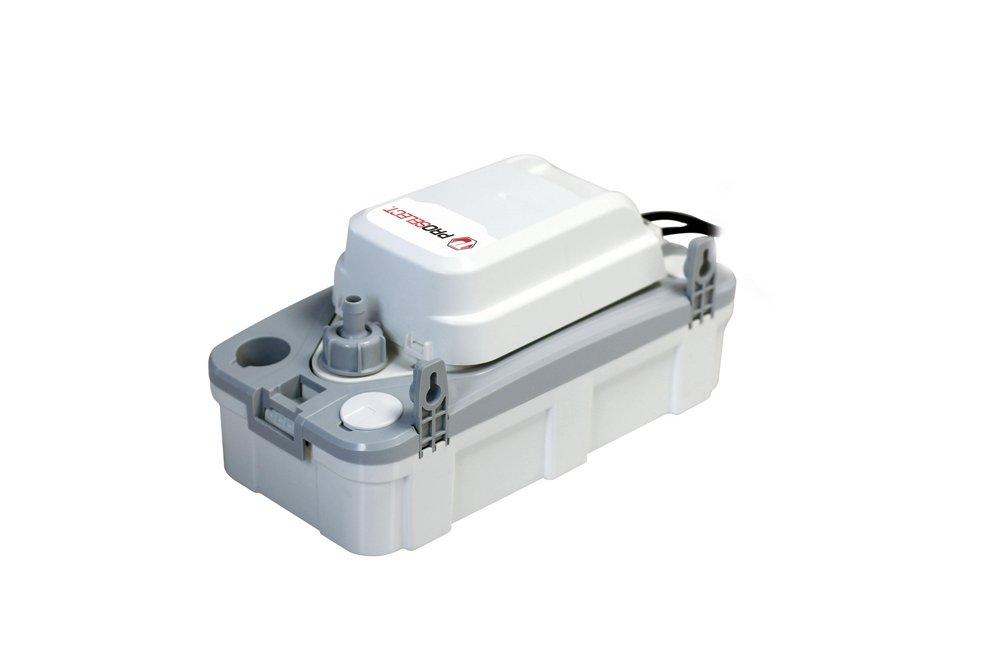

95W 115V 1/35 hp 135 gph Condensate Pump with Safety Switch & Tubing

PROSELECT®

PSCPV3 95W 115V 1/35 hp 135 gph Condensate Pump with Safety Switch & Tubing

Brand image
PROSELECT®

PSCPV3 95W 115V 1/35 hp 135 gph Condensate Pump with Safety Switch & Tubing

  • Part #PSCPV320WS20T
  • Item #10030971
  • Manufacturer Part #PSCPV320WS20T
3.6 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 6 PT: 168
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Float activated high-level safety switch can be wired to sound an alarm or shut down HVAC equipment to prevent overflow
  • Vapor guard technology to minimize the ingress of moisture into the electronics enclosure
  • Suitable for high-efficiency furnace, boiler, AC or dehumidifier condensation
  • Removable 3/8" OD outlet barb with integrated non-return valve
  • Maximum working temperature of 140°F with short temperature excursions to 185°F

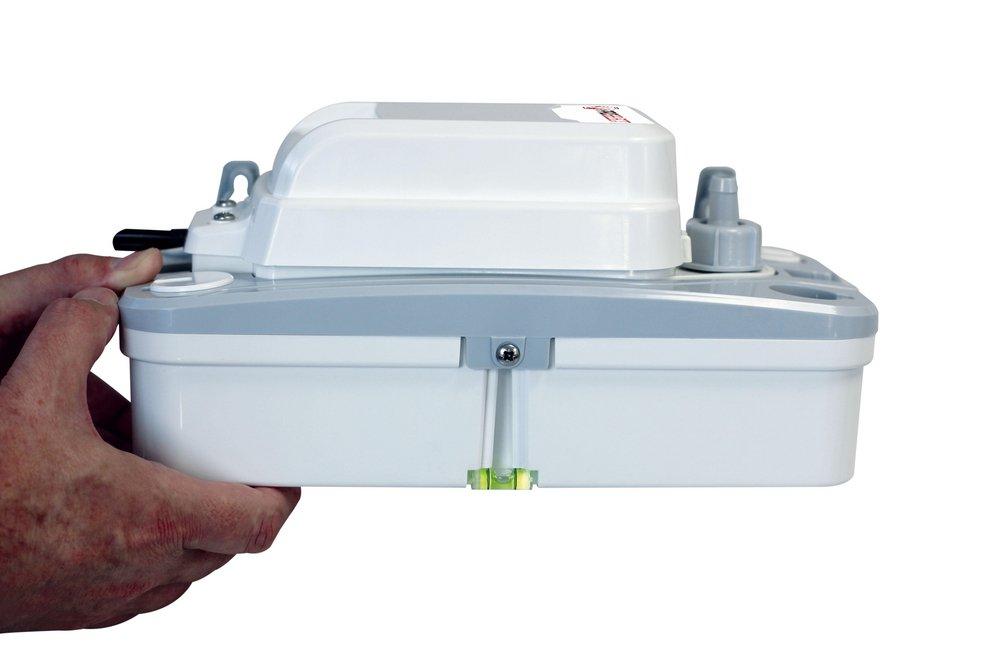

  • Built-in bubble level, wall mounting tabs and 4 inlet drain holes make installation flexible and easy
  • ABS tank, motor cover, and volute with stainless steel motor shaft
  • Thermally protected, fan cooled motor with IP24 splashproof casing
  • Includes 20' of 3/8" ID clear tubing
  • 6' power cord with molded 3-prong plug

Specifications

AMP:
1.6
BTU:
2304000
CSA Certified:
CSA C22.2 No. 0, CSA C22.2 No. 0.4, CSA C22.2 No. 108
Capacity:
0.45 gal
Collection:
PSCPV3
Decibel Rating (dB):
44 dB
Discharge:
3/8 in
Flow Rate:
135 gph
Height:
5-9/32 in
Horsepower:
1/35 hp
Length:
11-7/32 in
Lift Capacity:
20 ton (short)
MBH:
2304
Maximum Feet of Head:
21
Origin:
Global
Power Source:
Electric
Product Type:
Condensate Pump
Pump Body Material:
ABS
Temperature Range:
Up to 140 Deg F
Tonnage:
192 Tons
Type:
PSCPV320WS20T
Volts:
115V
Watts:
95 W
Weight:
4.1 lb
Width:
5-21/32 in
